220v 380v 26 Inch Rim Automotive Tire Changer / Tire Changing Equipment
1 unit
MOQ
Chat with supplier
Price
220v 380v 26 Inch Rim Automotive Tire Changer / Tire Changing Equipment
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: OEM
Certification: CE, ISO
Model Number: TC-750
High Light:

26 Inch Rim Automotive Tire Changer

,

220v Automotive Tire Changer

,

380v Tire Changing Equipment

Payment & Shipping Terms
Packaging Details: Wooden Box, quantity in 20' container: 24, quantity in 40' container: 52
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T
Supply Ability: 50000 units per year
Specifications
Power Source: Electric
Automatic: Automatic
Warranty: 1 Year
Type: Simple Disassembly
Voltage: 110v 220v 380v Optional
Name: Automotive Tire Changer
Product Description

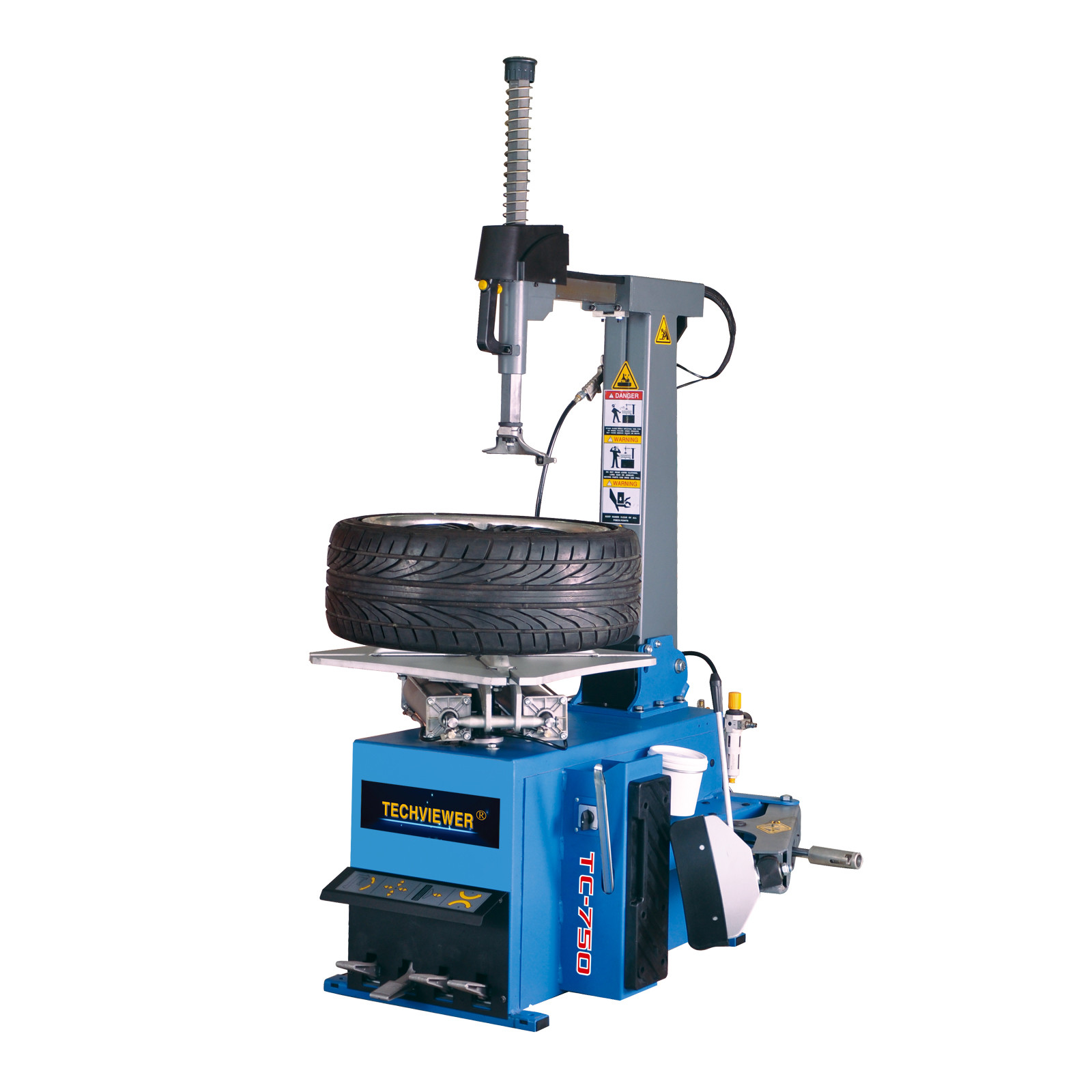

Tire changer TC-750 / car tyre changer / tire changing machine / tyre machine

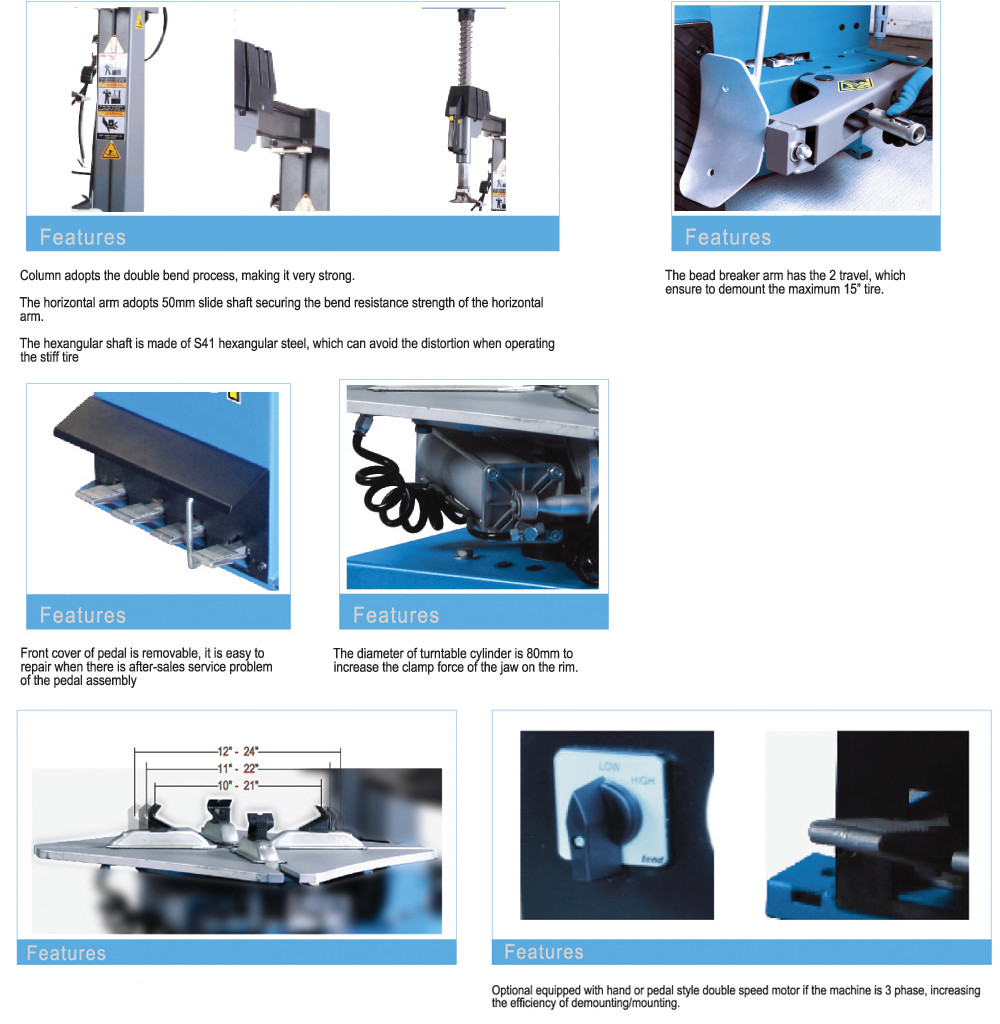

 Automatic tire changer features:

1) Automatic tire changer, the tilt backward and forward of the column and the lock of the column can be completed pneumatically.
2) The quick deflate valves are installed before and after the bead breaker cylinder to increase the moving speed of the cylinder, the one-side movement can be completed in about 2-3 seconds.
3) The horizontal arm adopts 50mm slide shaft securing the bend resistance strength of the horizontal arm.
4) The design of the bead breaker blade is ARC shape, it can rotate at any direction, securing the best bead breaking force. The bead breaker blade is equipped with the protective cover.
5) The hexangular shaft is made of S41 hexangular steel, which can avoid the distortion when operating the stiff tire.
6) Column adopts the double bend process, making it very strong.
7) The bead breaker arm has the 2 travel, which ensure to demount the maximum 15'' tire.
8) Optional equipped with hand or pedal style double speed motor if the machine is 3 phase, increasing the efficiency of demounting /mounting.
9) The diameter of turntable cylinder is 80mm to increase the clamp force of the jaw on the rim.
10) In order to assure the safety during demounting/mounting, helpers can be optional equipped according to the requirement of demounting/mounting flat stiff tire.

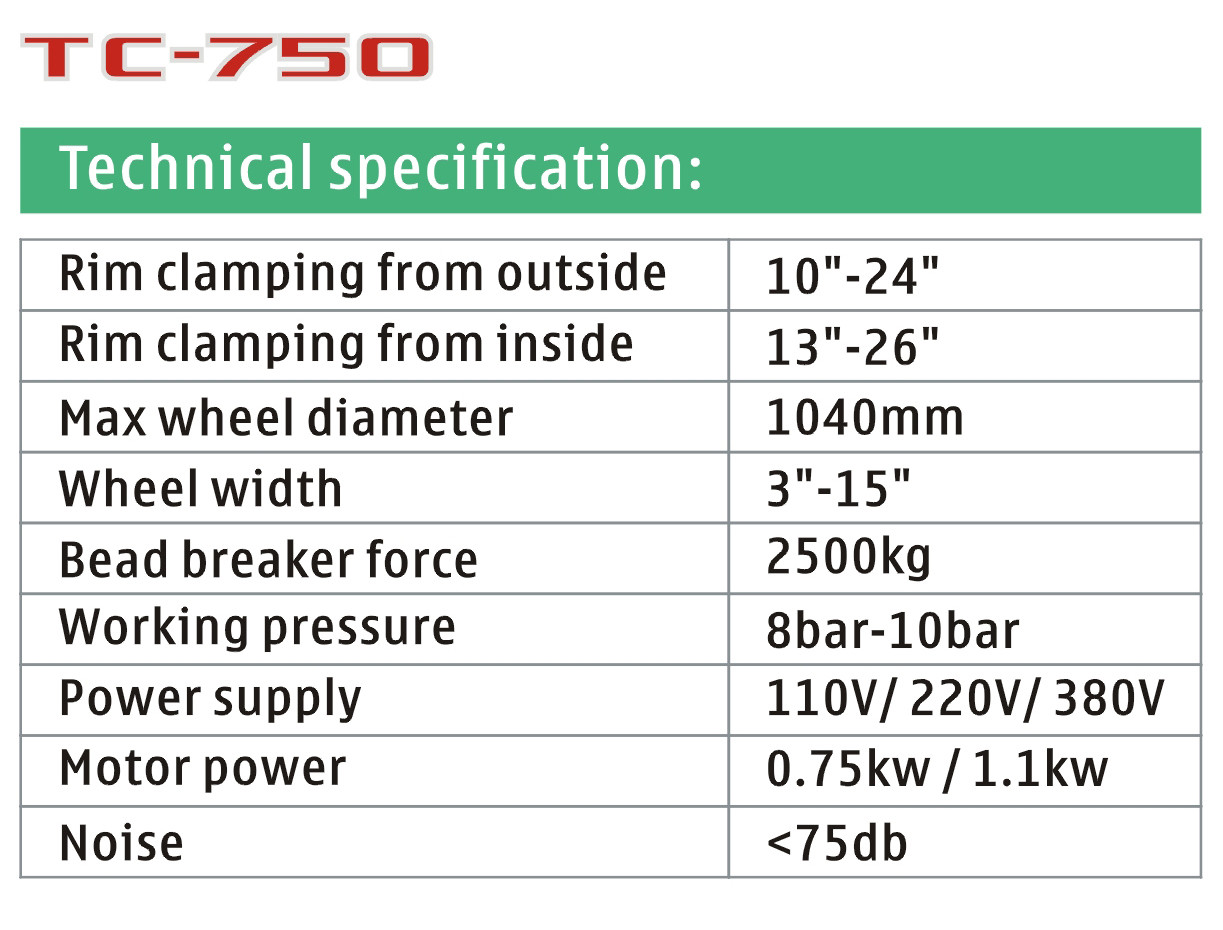

Automatic tire changer technical specification:

Model TC-720 TC-730 TC-730F TC-750 TC-750F

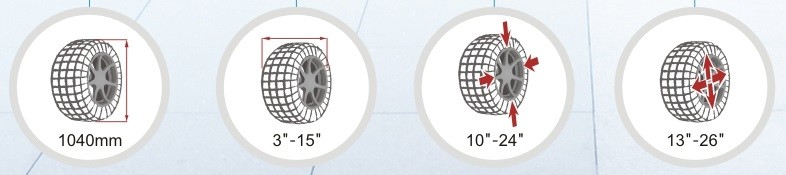

Rim clamping from outside 11'-20' 11'-20' 11'-20' 11'-24' 11'-24'
Rim clamping from inside 12'-24' 12'-24' 12'-24' 13'-26' 13'-26'
Max wheel diameter 960mm 950mm 950mm 1040mm 1040mm
Wheel width 3'-12' 3'-12' 3'-12' 3'-15' 3'-15'
Bead breaker force 2500kg 2500kg 2500kg 2500kg 2500kg
Working pressure 8-10bar 8-10bar 8-10bar 8-10bar 8-10bar
Power supply 110/220/380 110/220/380 110/220/380 110/220/380 110/220/380
Motor power 0.75/1.1kw 0.75/1.1kw 0.75/1.1kw 0.75/1.1kw 0.75/1.1kw
Noise <75db <75db <75db <75db <75db



220v 380v 26 Inch Rim Automotive Tire Changer / Tire Changing Equipment 0



220v 380v 26 Inch Rim Automotive Tire Changer / Tire Changing Equipment 1



Product details:

220v 380v 26 Inch Rim Automotive Tire Changer / Tire Changing Equipment 2







Why choose us
Online/Offline Technical Support
Service Parts Availability 100%
Professional Shop Design & Upgrade
Support Technical Training
