Diameter 950mm Automotive Pneumatic Tire Changer 0.75kw 1.1kw
1 unit
MOQ
Chat with supplier
Price
Diameter 950mm Automotive Pneumatic Tire Changer 0.75kw 1.1kw
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: OEM
Certification: CE, ISO
Model Number: TC-730
High Light:

950mm Pneumatic Tire Changer

,

Pneumatic Tire Changer 0.75kw

,

950mm automotive tire changer

Payment & Shipping Terms
Packaging Details: Wooden Box, quantity in 20' container: 34, quantity in 40' container: 72
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T
Supply Ability: 50000 units per year
Specifications
Power Source: Electric
Automatic: Automatic
Warranty: 1 Year
Type: Simple Disassembly
Voltage: 110v 220v 380v Optional
Name: Tire Changer
Product Description

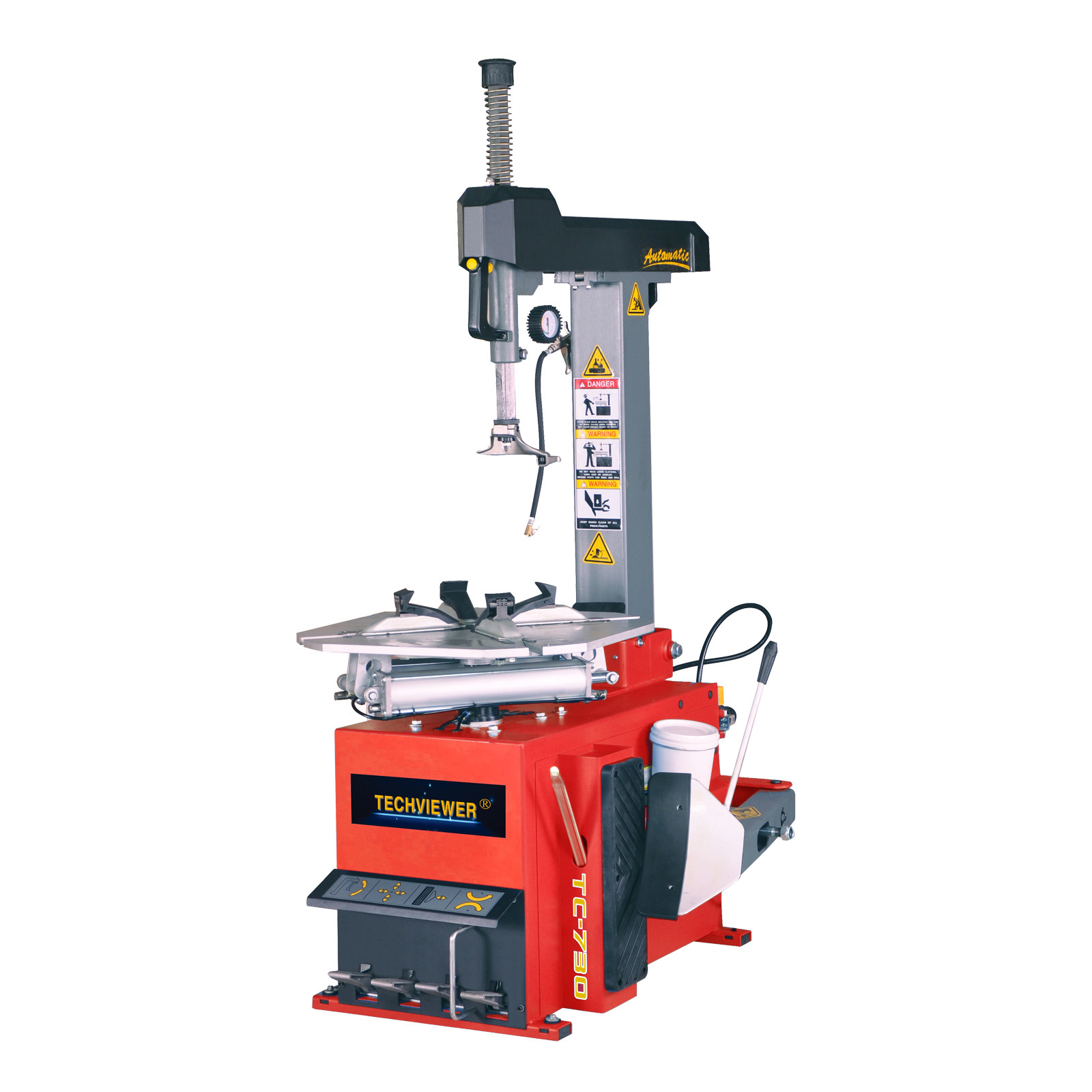

Tire changer TC-730 / tire changing machine

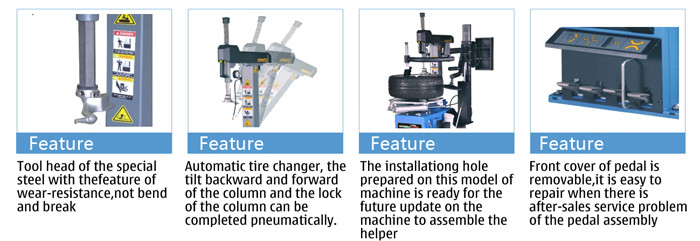

 Automatic tire changer features:

1) Automatic tire changer, the tilt backward and forward of the column and the lock of the column can be competed pneumatically.
2) Tool head of the special steel with the feature of wear-resistance, not bend and break.
3) The customer can optional equip the plastic tool head according to the requirement.
4) The installation hole prepared on this model of machine is ready for the future update on the machine to assemble the helper.
5) The universal switch is 40A with a pure silver touching point, it can bear great load with a long using life.
6) The clamp is made of special material, strong and durable.
7) You can optional equip the motorcycle adaptor is easy for mounting and demounting, not damage the rim and can work upside down.
8) The protective sheath of the bead breaker is optional.



 Automatic tire changer technical specification:

Model TC-730
Rim clamping from outside 11'-20'
Rim clamping from inside 12'-24'
Max wheel diameter 950mm
Wheel width 3'-12'
Bead breaker force 2500kg
Working pressure 8-10bar
Power supply 110/220/380
Motor power 0.75/1.1kw
Noise <75db



Diameter 950mm Automotive Pneumatic Tire Changer 0.75kw 1.1kw 0

Diameter 950mm Automotive Pneumatic Tire Changer 0.75kw 1.1kw 1



Product details:

Diameter 950mm Automotive Pneumatic Tire Changer 0.75kw 1.1kw 2



FAQ
1.Q:The machine is easy to learn?
A:Yes, it is very easy to learn. The detailed manual and training video will be supplied with machine together .
2.Q:Do I need any special software for my PC?
A:We will provide optimization software (It is specifically aimed at wheel repair and we have independent intellectual property rights).
3.Q:What kind of tool that wheel repair machine use?
A: It is diamond cutting tools.
4.Q:How many time it takes to repair a wheel ?
A:For same model wheels, the first one needs about 10 minutes, because probing wheel curve will take some time. After first one, the curve will be saved, so when you repair other wheels as same model, it just takes about 3 minutes.
5.Q:Can we go to your factory and learn how to use the machine?
A:We sincerely welcome you come to our beautiful city. The training is free. It would be great honor to us.
6.Q:Can you arrange training in our place after we bought your machine?
A:We can arrange oversea training. Buyers will be responsible to the costs.
