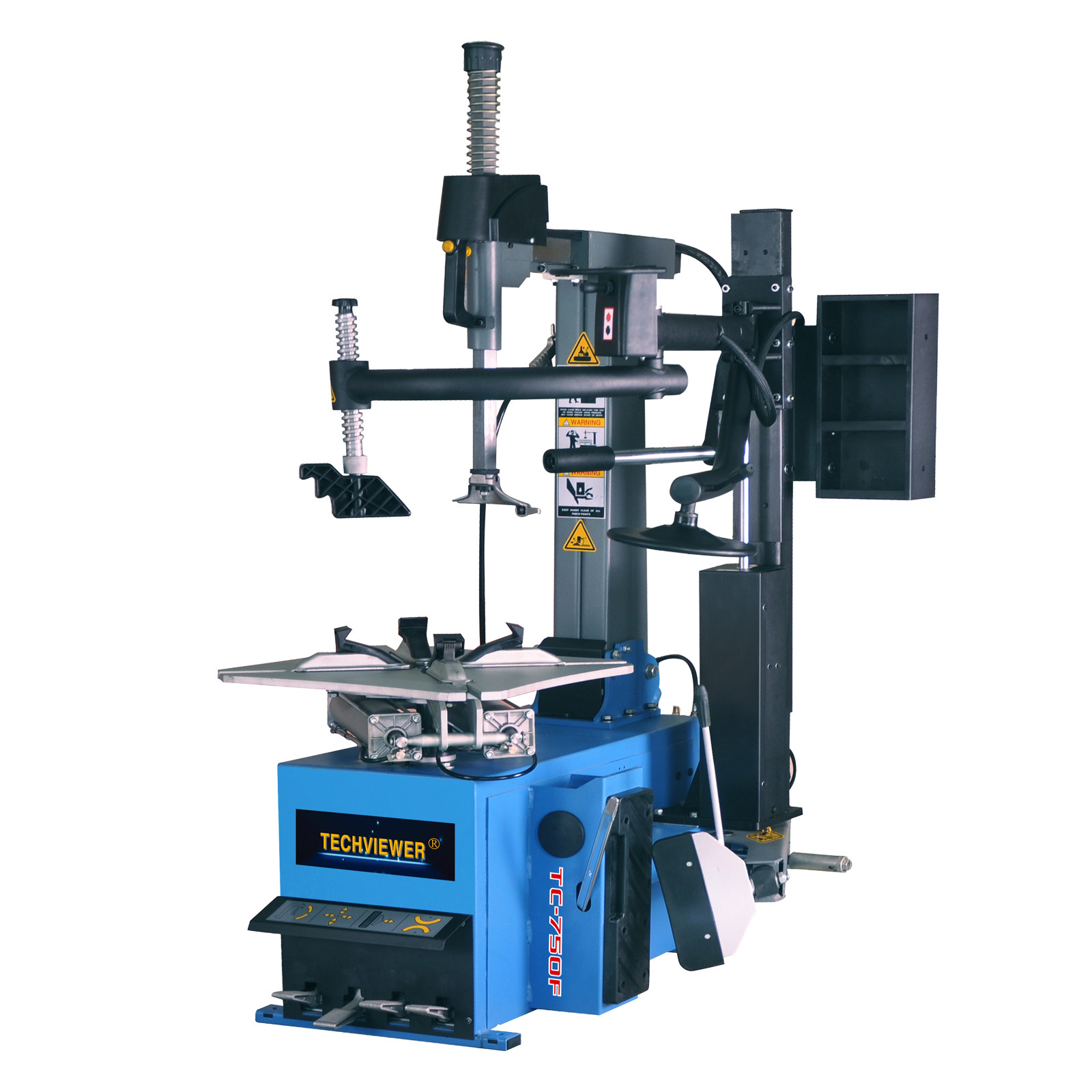

Tire changer TC-750F / car tyre changer / tire changing machine / tyre machine

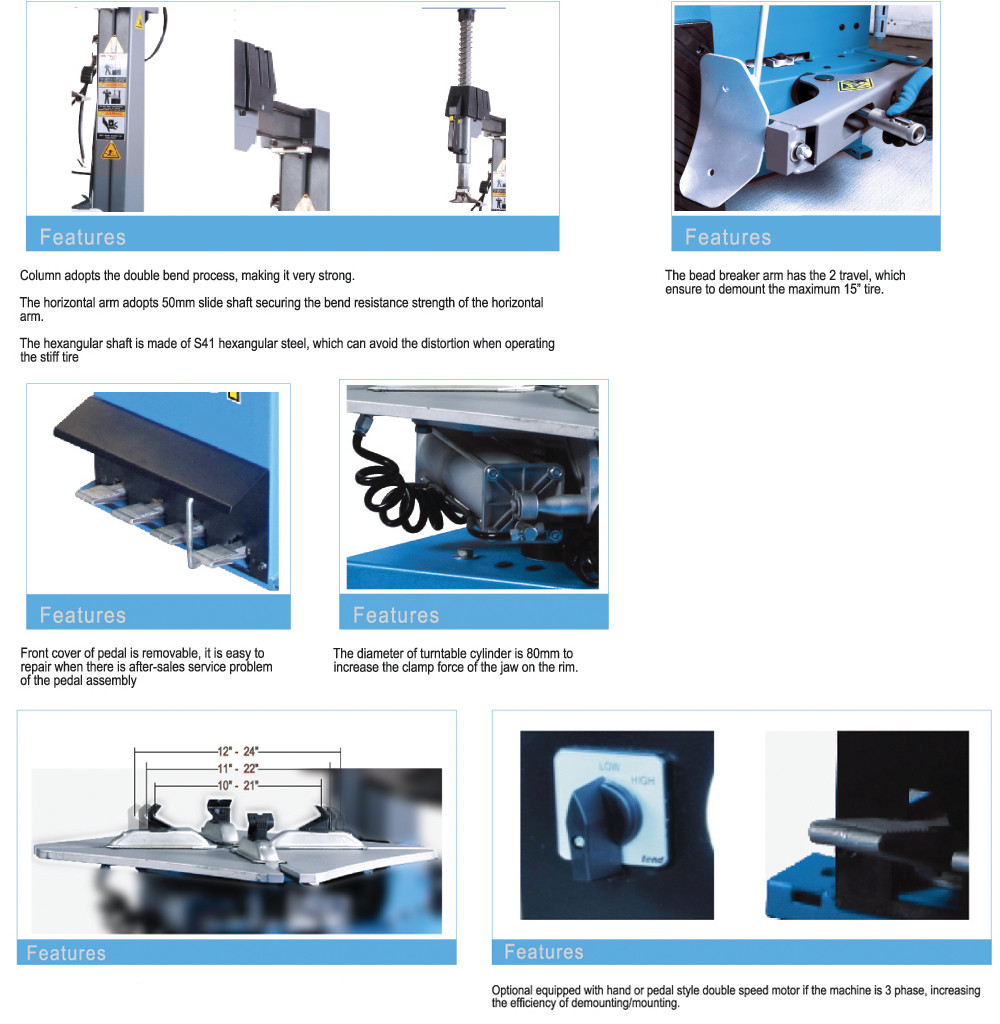

Automatic tire changer features:
1) Automatic tire changer, the tilt backward and forward of the column and the lock of the column can be completed pneumatically.
2) The quick deflate valves are installed before and after the bead breaker cylinder to increase the moving speed of the cylinder, the one-side movement can be completed in about 2-3 seconds.
3) The horizontal arm adopts 50mm slide shaft securing the bend resistance strength of the horizontal arm.
4) The design of the bead breaker blade is ARC shape, it can rotate at any direction, securing the best bead breaking force. The bead breaker blade is equipped with the protective cover.
5) The hexangular shaft is made of S41 hexangular steel, which can avoid the distortion when operating the stiff tire.
6) Column adopts the double bend process, making it very strong.
7) The bead breaker arm has the 2 travel, which ensure to demount the maximum 15'' tire.
8) Optional equipped with hand or pedal style double speed motor if the machine is 3 phase, increasing the efficiency of demounting /mounting.
9) The diameter of turntable cylinder is 80mm to increase the clamp force of the jaw on the rim.
10) In order to assure the safety during demounting/mounting, helpers can be optional equipped according to the requirement of demounting/mounting flat stiff tire.
Automatic tire changer technical specification:
| Model | TC-720 | TC-730 | TC-730F | TC-750 | TC-750F |

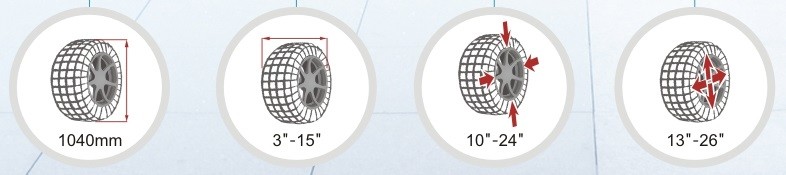

| Rim clamping from outside | 11'-20' | 11'-20' | 11'-20' | 11'-24' | 11'-24' |
| Rim clamping from inside | 12'-24' | 12'-24' | 12'-24' | 13'-26' | 13'-26' |
| Max wheel diameter | 960mm | 950mm | 950mm | 1040mm | 1040mm |
| Wheel width | 3'-12' | 3'-12' | 3'-12' | 3'-15' | 3'-15' |
| Bead breaker force | 2500kg | 2500kg | 2500kg | 2500kg | 2500kg |
| Working pressure | 8-10bar | 8-10bar | 8-10bar | 8-10bar | 8-10bar |
| Power supply | 110/220/380 | 110/220/380 | 110/220/380 | 110/220/380 | 110/220/380 |
| Motor power | 0.75/1.1kw | 0.75/1.1kw | 0.75/1.1kw | 0.75/1.1kw | 0.75/1.1kw |
| Noise | <75db | <75db | <75db | <75db | <75db |
