1040mm 1.1kw Tubeless Tyre Changer Machine / Pneumatic Tyre Changer
1 unit
MOQ
Chat with supplier
Price
1040mm 1.1kw Tubeless Tyre Changer Machine / Pneumatic Tyre Changer
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: OEM
Certification: CE, ISO
Model Number: TC-750
High Light:

1040mm Tubeless Tyre Changer Machine

,

1040mm Pneumatic Tyre Changer

,

1.1kw Tubeless Tyre Changer Machine

Payment & Shipping Terms
Packaging Details: Wooden Box, quantity in 20' container: 24, quantity in 40' container: 52
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T
Supply Ability: 50000 units per year
Specifications
Power Source: Electric
Automatic: Automatic
Warranty: 1 Year
Type: Simple Disassembly
Voltage: 110v 220v 380v Optional
Name: Car Tire Changer
Product Description

1040mm 1.1kw Tubeless Tyre Changer Machine / Pneumatic Tyre Changer



Automatic tire changer features:

1) Automatic tire changer, the tilt backward and forward of the column and the lock of the column can be completed pneumatically.
2) The quick deflate valves are installed before and after the bead breaker cylinder to increase the moving speed of the cylinder, the one-side movement can be completed in about 2-3 seconds.
3) The horizontal arm adopts 50mm slide shaft securing the bend resistance strength of the horizontal arm.
4) The design of the bead breaker blade is ARC shape, it can rotate at any direction, securing the best bead breaking force. The bead breaker blade is equipped with the protective cover.
5) The hexangular shaft is made of S41 hexangular steel, which can avoid the distortion when operating the stiff tire.
6) Column adopts the double bend process, making it very strong.
7) The bead breaker arm has the 2 travel, which ensure to demount the maximum 15'' tire.
8) Optional equipped with hand or pedal style double speed motor if the machine is 3 phase, increasing the efficiency of demounting /mounting.
9) The diameter of turntable cylinder is 80mm to increase the clamp force of the jaw on the rim.
10) In order to assure the safety during demounting/mounting, helpers can be optional equipped according to the requirement of demounting/mounting flat stiff tire.

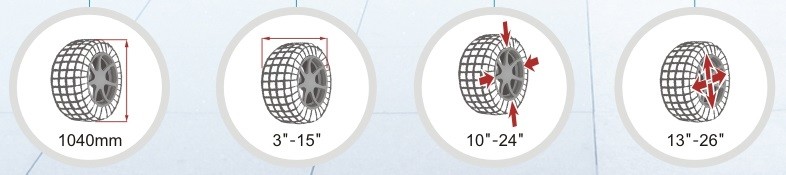

Automatic tire changer technical specification:

Model TC-750
Rim clamping from outside 11'-24'
Rim clamping from inside 13'-26'
Max wheel diameter 1040mm
Wheel width 3'-15'
Bead breaker force 2500kg
Working pressure 8-10bar
Power supply 110/220/380
Motor power 0.75/1.1kw
Noise <75db

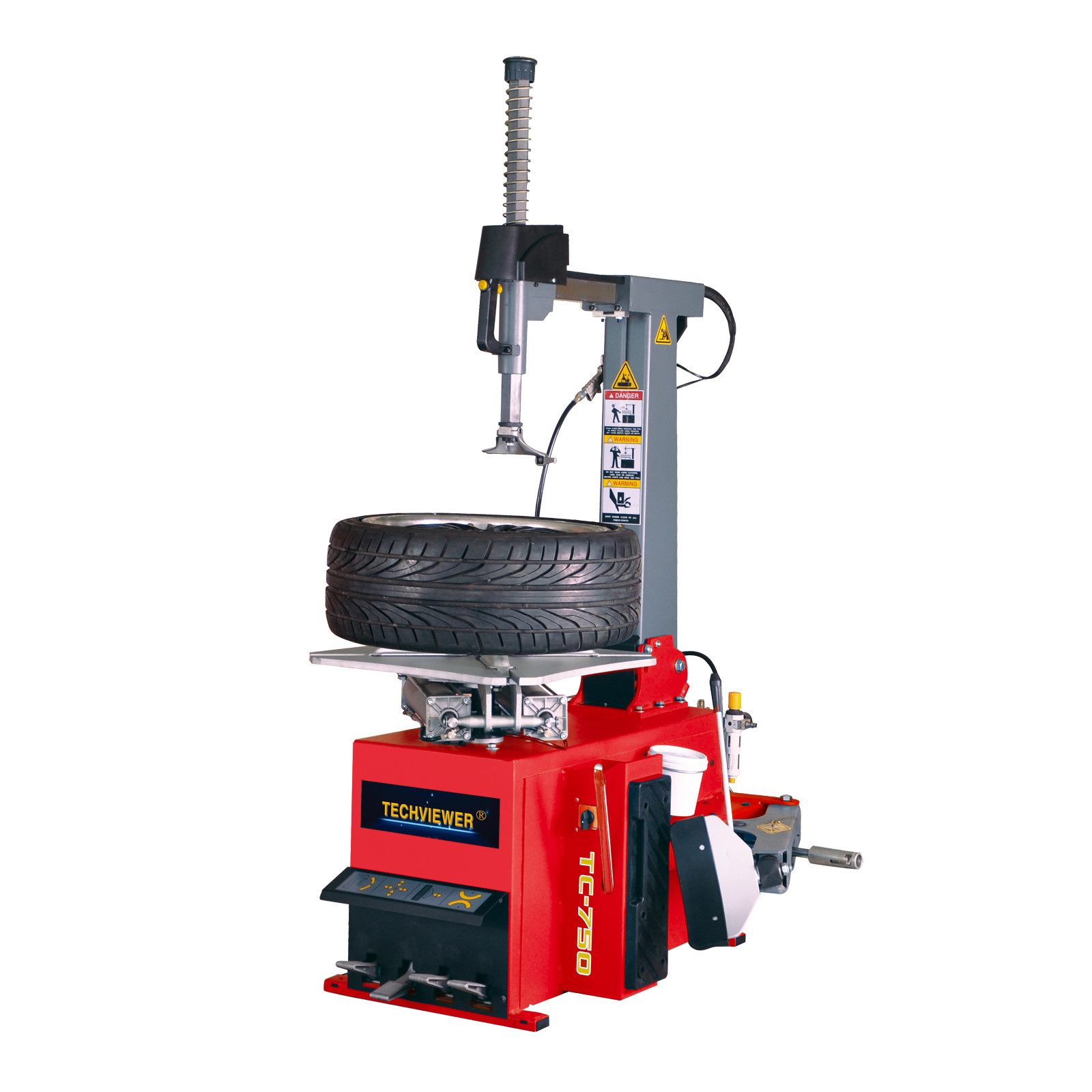

1040mm 1.1kw Tubeless Tyre Changer Machine / Pneumatic Tyre Changer 0

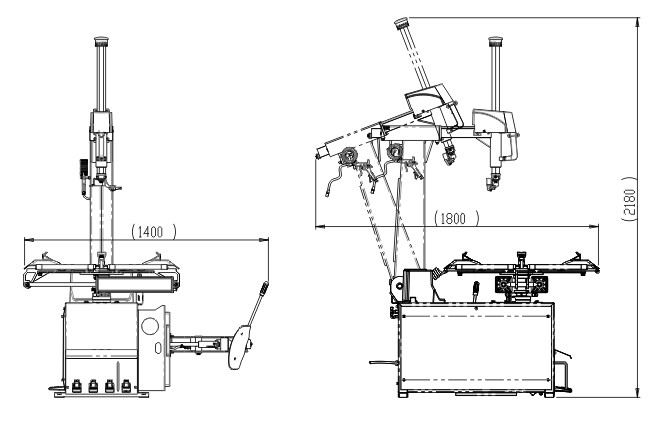

1040mm 1.1kw Tubeless Tyre Changer Machine / Pneumatic Tyre Changer 1

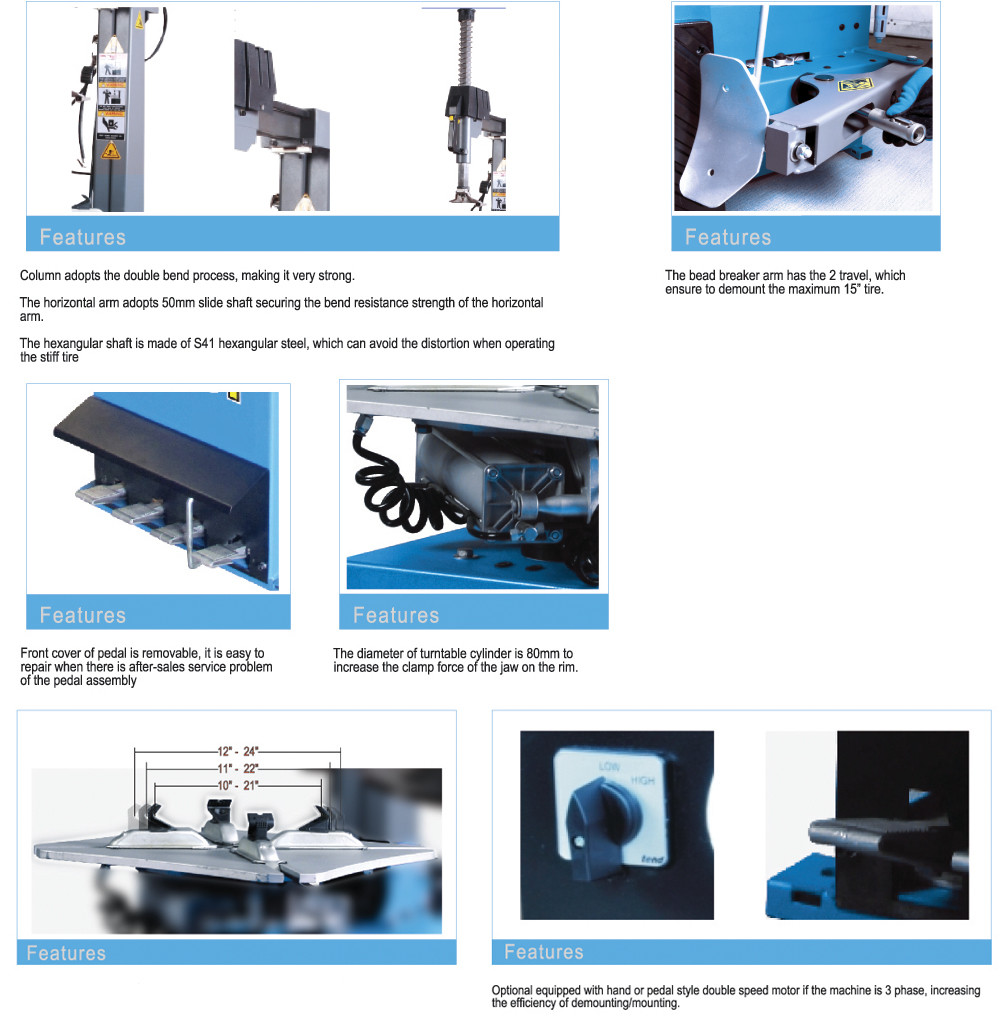

Product details:

1040mm 1.1kw Tubeless Tyre Changer Machine / Pneumatic Tyre Changer 2



What is the order process?
1. Please tell us the product you need,such the Load capacity,Voltage(220V,380V,415V),1 or 2 or 3 phase,the equipment color if you have requirments.
2. Confirm every detail after our good communication.
3. Start the order by Alibaba Trade Assurance, or we will make Proforma Invoice for you to pay.
4. You arrange the payment and send bank slip to us.
5. We arrange the production and deliver to you.
6. We send you the shipping documents by DHL or email.
7. When arrive at your sea port, you get the goods against the shipping documents.
