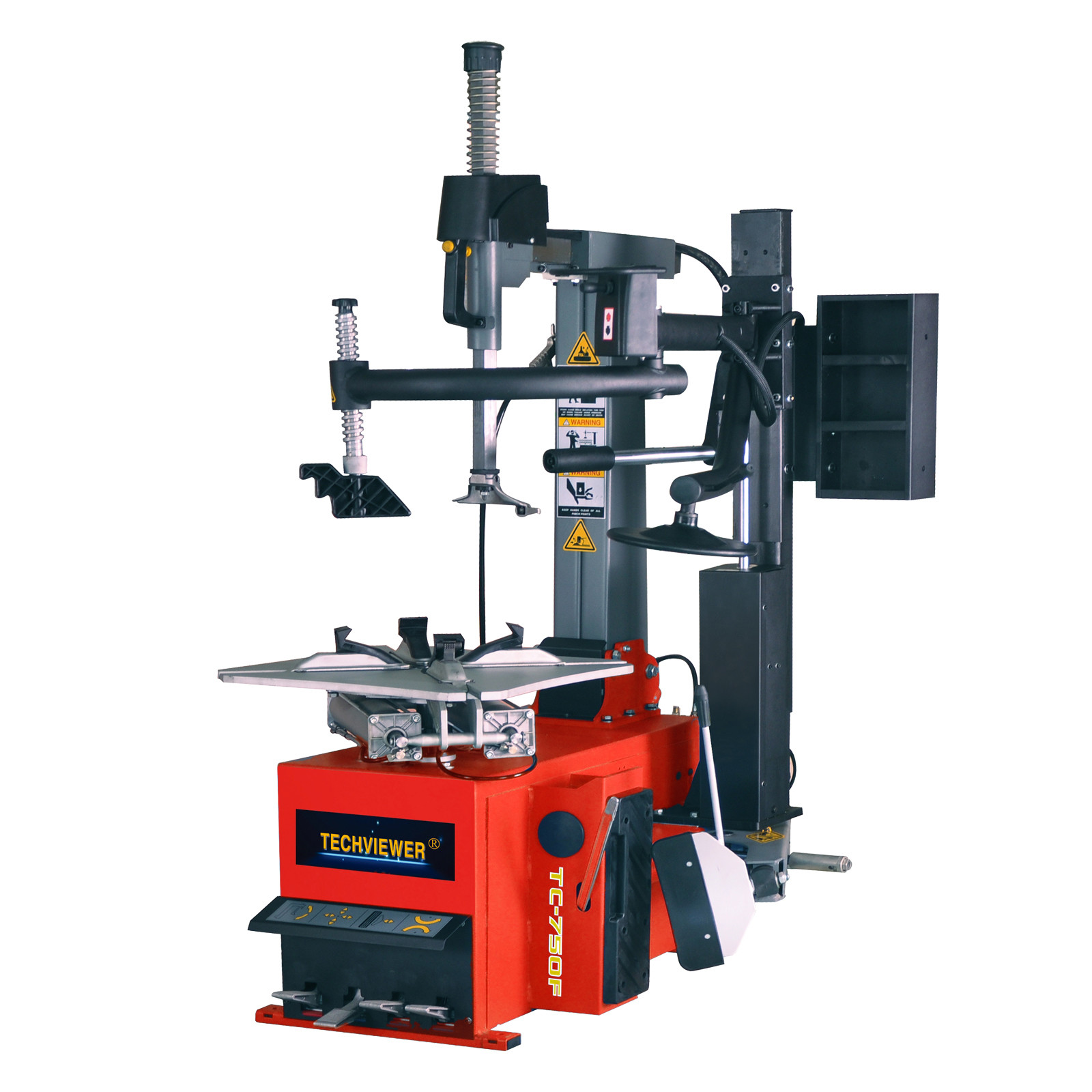

Tire changing equipment TC-750F / tire changing machine

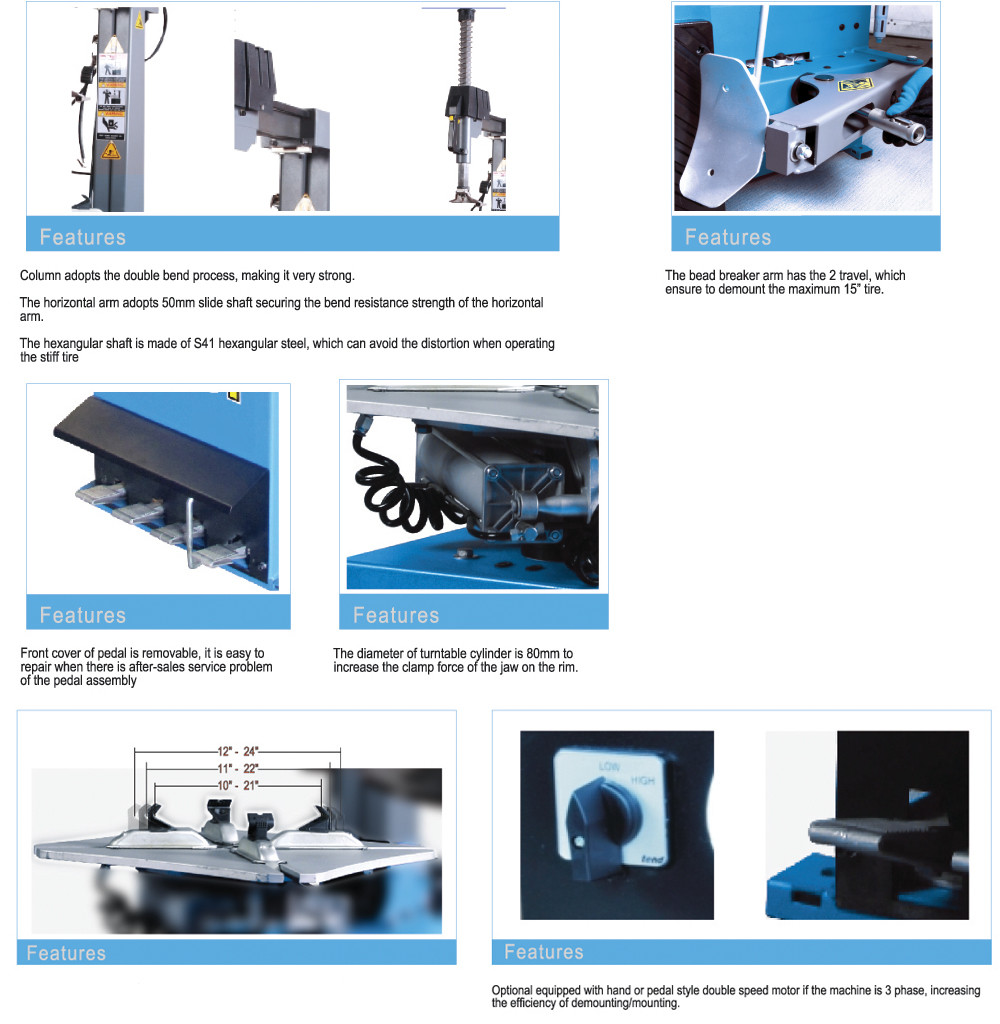

Automatic tire changer features:
1) Automatic tire changer, the tilt backward and forward of the column and the lock of the column can be completed pneumatically.
2) The quick deflate valves are installed before and after the bead breaker cylinder to increase the moving speed of the cylinder, the one-side movement can be completed in about 2-3 seconds.
3) The horizontal arm adopts 50mm slide shaft securing the bend resistance strength of the horizontal arm.
4) The design of the bead breaker blade is ARC shape, it can rotate at any direction, securing the best bead breaking force. The bead breaker blade is equipped with the protective cover.
5) The hexangular shaft is made of S41 hexangular steel, which can avoid the distortion when operating the stiff tire.
6) Column adopts the double bend process, making it very strong.
7) The bead breaker arm has the 2 travel, which ensure to demount the maximum 15'' tire.
8) Optional equipped with hand or pedal style double speed motor if the machine is 3 phase, increasing the efficiency of demounting /mounting.
9) The diameter of turntable cylinder is 80mm to increase the clamp force of the jaw on the rim.
10) In order to assure the safety during demounting/mounting, helpers can be optional equipped according to the requirement of demounting/mounting flat stiff tire.
Automatic tire changer technical specification:

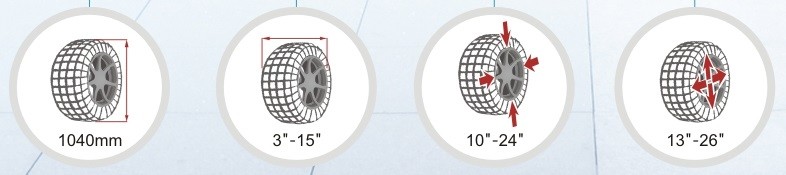

| Model | TC-750F |
| Rim clamping from outside | 11'-24' |
| Rim clamping from inside | 13'-26' |
| Max wheel diameter | 1040mm |
| Wheel width | 3'-15' |
| Bead breaker force | 2500kg |
| Working pressure | 8-10bar |
| Power supply | 110/220/380 |
| Motor power | 0.75/1.1kw |
| Noise | <75db |
Product details:
| Frequently Asked Questions | |
| Q | How can I make my payment secure? |
| A | You can pay by L/C. You will get 100% payment protection, 100% production quality production, 100% on-time shipment protection. |
| Q | What is your payment terms? |
| A | We accept TT, LC, Western Union, etc. |
| Q | How long can I get the goods? |
| A | Our lead time is 20 days after order. The shipping time on the sea is around 30 days. So you will receive the goods around 50 days. |
| Q | Can I buy your machine in my country? |
| A | Yes, if we have distributor in your country, you can buy directly from them. This is better, you can get service locally. If we don’t have distributor in your country, you need to buy from us. |
| Q | Where can you deliver for me? |
| A | We usually deliver to your sea port. If you don’t know your sea port, you can tell me your address. We will check the nearest sea port we can deliver to you. |
| Q | How much is the shipping fee? |
| A | Please tell us the models and quantity of each model you need, we will check the latest shipping fee. |
| Q | If I pay machine and shipping, do I still need to pay any fee at my side? |
| A | Yes, you also need to pay customs fee and tax. You can check local custom office or import agent for exact value. |
| Q | Can you deliver to my address directly? |
| A | Yes, we can. |
| Q | What is your warranty? How can I get spare parts? |
| A | Our warranty is one year. We will provide you spare parts freely by DHL. |
| Q | Can you provide the voltage of my country? |
| A | Yes, we can. We have sold our products in over 50 different countries all over the world. We can offer all the different voltages in different countries. |
