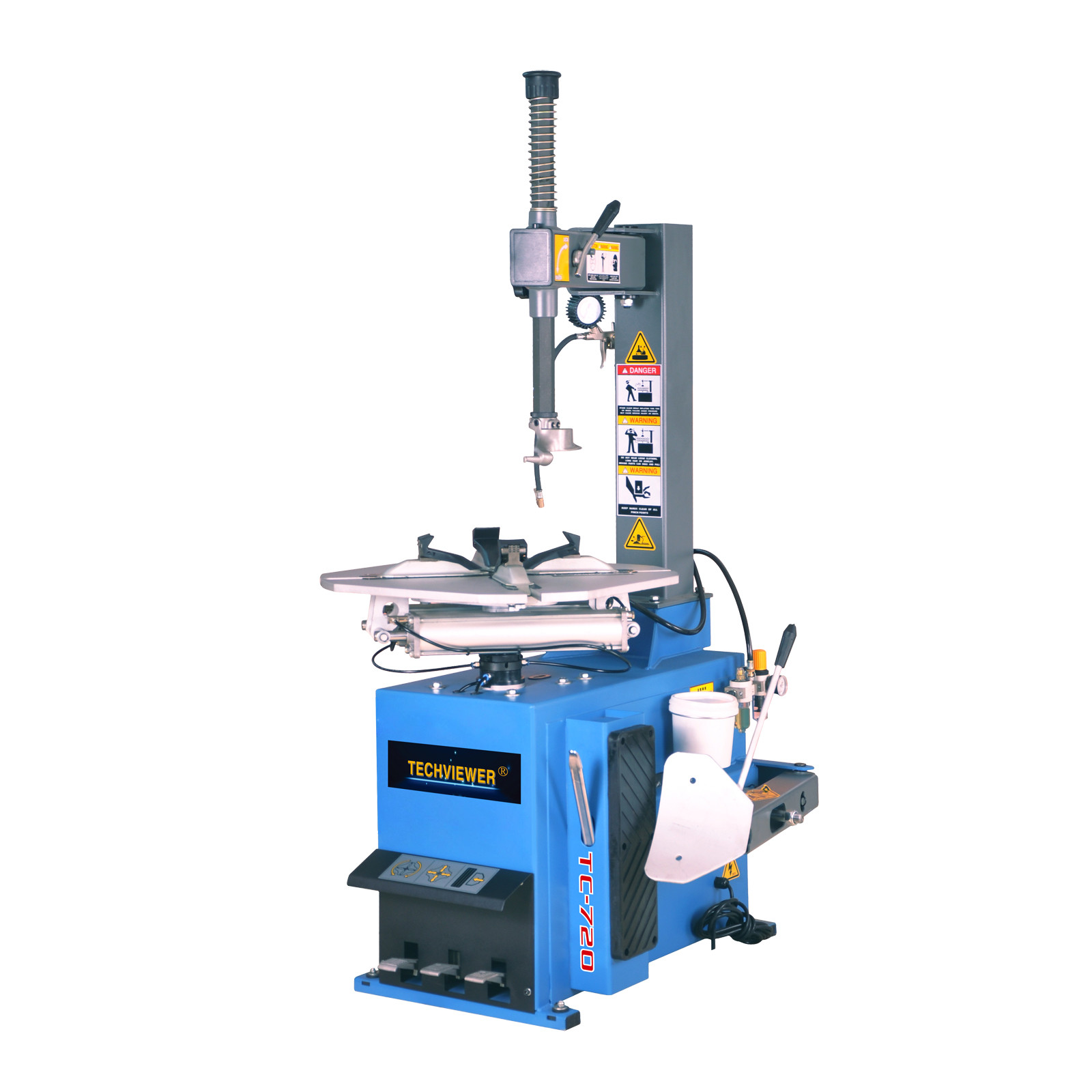

Tire changer TC-720 / car tyre changer / tire changing machine / tyre machine
Semi-automatic tire changer features:
1) The pedal has step function, which can mount the tire accurately and time saving.

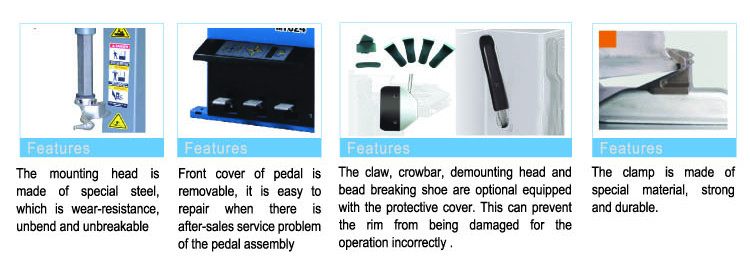

2) The clamp is made of special material, strong and durable.
3) The universal switch is 40A with a pure silver touching point, it can bear great load with a long using life.
4) The mounting head is made of special steel, which is wear-resistance, unbend and unbreakable.
5) The claw, crowbar, demounting head and bead breaking shoe are optional equipped with the protective cover. This can prevent the rim from being damaged for the operation incorrectly.

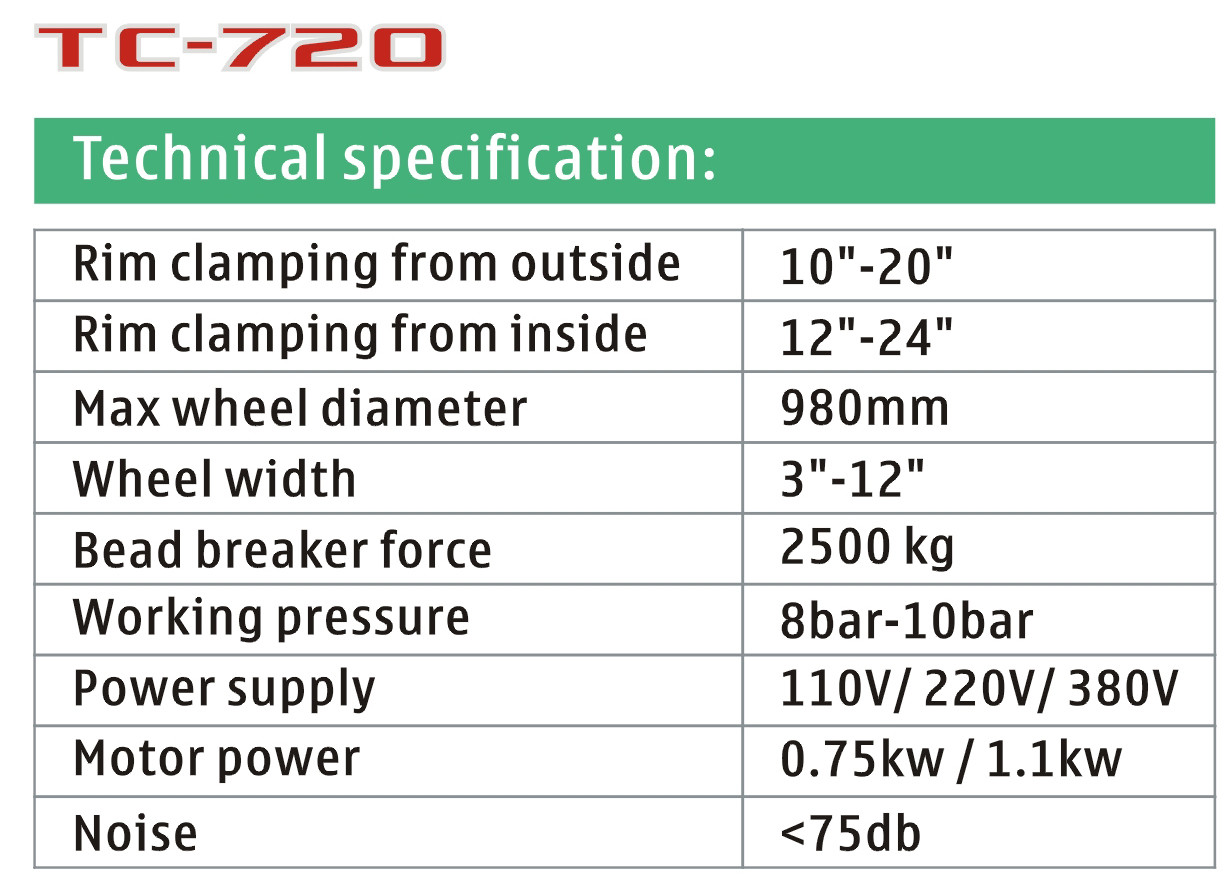

Semi-automatic tire changer technical specification:
| Model | TC-720 | TC-730 | TC-730F | TC-750 | TC-750F |

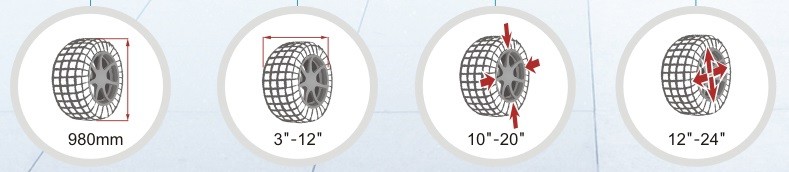

| Rim clamping from outside | 11'-20' | 11'-20' | 11'-20' | 11'-24' | 11'-24' |
| Rim clamping from inside | 12'-24' | 12'-24' | 12'-24' | 13'-26' | 13'-26' |
| Max wheel diameter | 960mm | 950mm | 950mm | 1040mm | 1040mm |
| Wheel width | 3'-12' | 3'-12' | 3'-12' | 3'-15' | 3'-15' |
| Bead breaker force | 2500kg | 2500kg | 2500kg | 2500kg | 2500kg |
| Working pressure | 8-10bar | 8-10bar | 8-10bar | 8-10bar | 8-10bar |
| Power supply | 110/220/380 | 110/220/380 | 110/220/380 | 110/220/380 | 110/220/380 |
| Motor power | 0.75/1.1kw | 0.75/1.1kw | 0.75/1.1kw | 0.75/1.1kw | 0.75/1.1kw |
| Noise | <75db | <75db | <75db | <75db | <75db |
Product details:
Why choose us
Online/Offline Technical Support
Service Parts Availability 100%
Professional Shop Design & Upgrade
Support Technical Training
