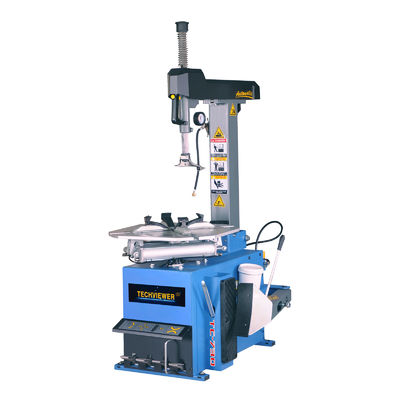

Tire changer TC-730 / car tyre changer / tire changing machine / tyre machine

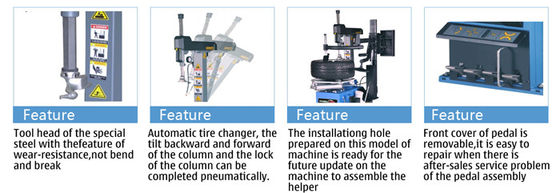

Automatic tire changer features:
1) Automatic tire changer, the tilt backward and forward of the column and the lock of the column can be competed pneumatically.
2) Tool head of the special steel with the feature of wear-resistance, not bend and break.
3) The customer can optional equip the plastic tool head according to the requirement.
4) The installation hole prepared on this model of machine is ready for the future update on the machine to assemble the helper.
5) The universal switch is 40A with a pure silver touching point, it can bear great load with a long using life.
6) The clamp is made of special material, strong and durable.
7) You can optional equip the motorcycle adaptor is easy for mounting and demounting, not damage the rim and can work upside down.
8) The protective sheath of the bead breaker is optional.

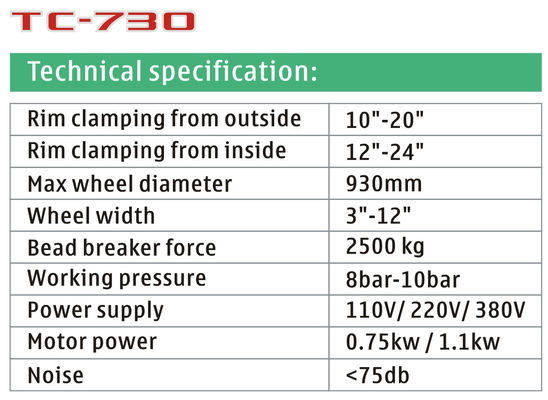

Automatic tire changer technical specification:
| Model | TC-720 | TC-730 | TC-730F | TC-750 | TC-750F |

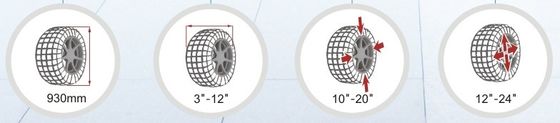

| Rim clamping from outside | 11'-20' | 11'-20' | 11'-20' | 11'-24' | 11'-24' |
| Rim clamping from inside | 12'-24' | 12'-24' | 12'-24' | 13'-26' | 13'-26' |
| Max wheel diameter | 960mm | 950mm | 950mm | 1040mm | 1040mm |
| Wheel width | 3'-12' | 3'-12' | 3'-12' | 3'-15' | 3'-15' |
| Bead breaker force | 2500kg | 2500kg | 2500kg | 2500kg | 2500kg |
| Working pressure | 8-10bar | 8-10bar | 8-10bar | 8-10bar | 8-10bar |
| Power supply | 110/220/380 | 110/220/380 | 110/220/380 | 110/220/380 | 110/220/380 |
| Motor power | 0.75/1.1kw | 0.75/1.1kw | 0.75/1.1kw | 0.75/1.1kw | 0.75/1.1kw |
| Noise | <75db | <75db | <75db | <75db | <75db |
Product details:
Tyre changer is standard tire changer with heavy and strong structure cabinet. It encloses the simplicity and practicality of traditional tire changers with practicality of use on Run-flat tires with reasonable cost.

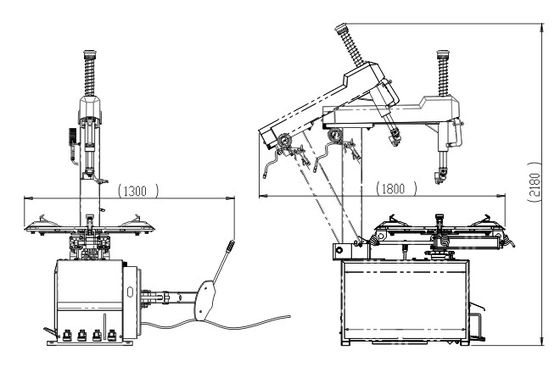

- Tilt back column design .
- Low cabinet design.-Twins clamping cylinders.
- 2500Kgf bead breaker cylinder.
- Table top bead blast system with toolbox.
- Powerful pneumatic right assist arm with center drop (DAAR) and power roller to assist demounting and mounting.
