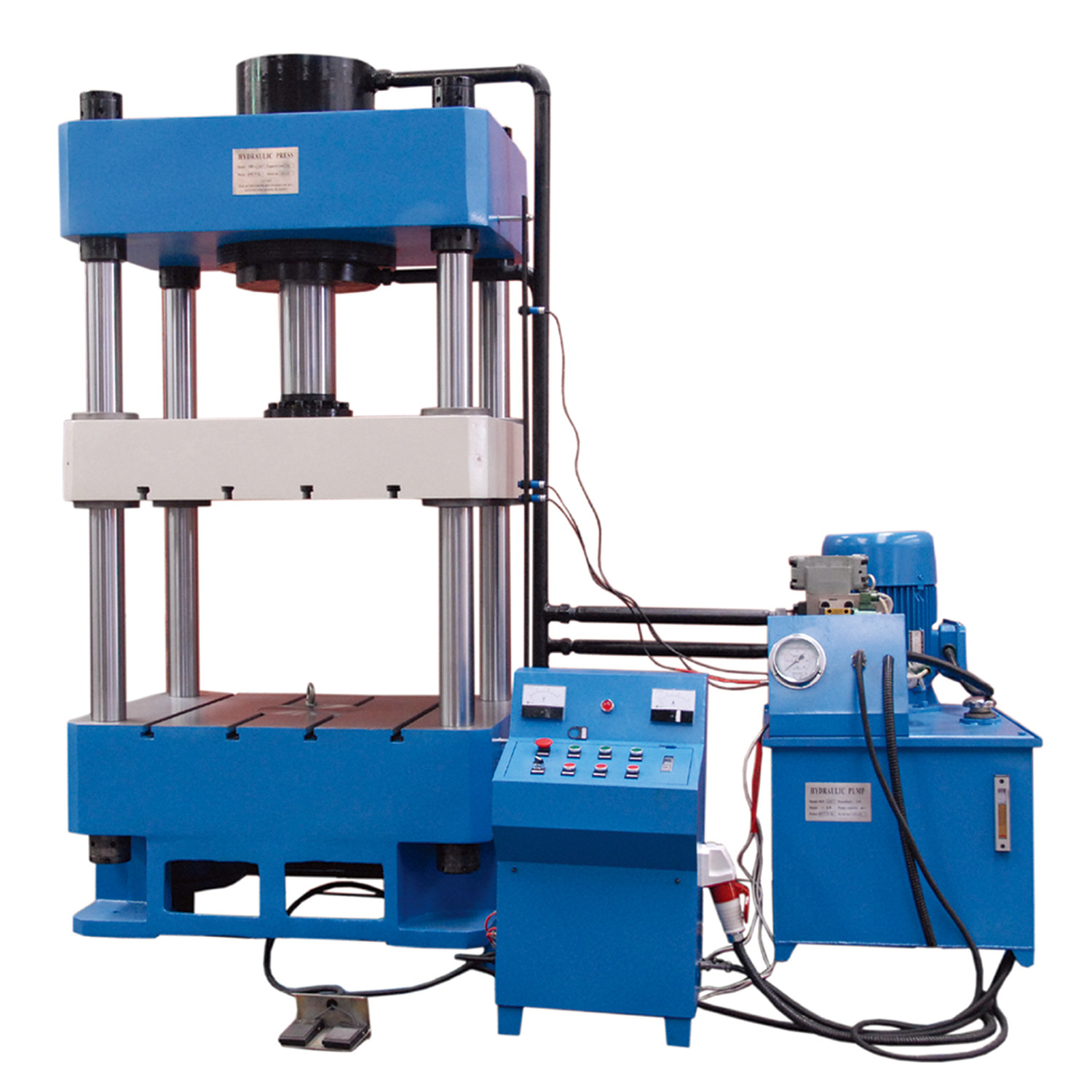

4 Post Hydraulic Press features:
HP series hydraulic presses are used for assembling, dismantling, alignment, calendaring, tension, bending and punching.
Italy CNK & CBZ oil pump
Save 60% energy compared with traditional model
The efficiency increased to 2-3 times
It takes advantages of small volume, high pressure, simple structure and light weight
Suitable for large industrial enterprise with thick, durable design philosophy.
4 Post Hydraulic Press technical specification:
| Model | HP-100F1 | HP-150F1 | HP-200F1 | HP-250F1 |
| Capacity (KN) | 1000 | 1500 | 2000 | 2500 |
| Pressure (Mpa) | 31.5 | 31.5 | 31.5 | 31.5 |
| Travel (mm) | 300 | 300 | 300 | 300 |
| Tale size (mm) | 860*560 | 870*670 | 970*700 | 1090*800 |
| 630*560 | 670*645 | 700*700 | 800*800 | |
| Dimension (mm) | 700*1000*1900 | 800*1000*2100 | 800*1000*2400 | 1300*1000*2400 |
| 1100*700*1150 | 1100*700*1200 | 1100*700*1200 | 1100*700*1300 | |
| Weight (KG) | 2200 | 2600 | 3100 | 4200 |
| Model | HP-315F1 | HP-500F1 |
| Capacity (KN) | 3150 | 5000 |
| Pressure (Mpa) | 32 | 32 |
| Travel (mm) | 400 | 500 |
| Tale size (mm) | 1090*800 | 1440*1000 |
| 800*800 | 1000*1000 | |
| Dimension (mm) | 1300*1000*2700 | 1600*1350*2950 |
| 1100*800*1500 | 1400*800*1500 | |
| Weight (KG) | 4600 | 9600 |
Product details:
Technical Performance
1. Low energy consumption, high speed, low noise, high efficiency;
2. Slider divide speed into two segments to contorl: empty loading fast, slowly close mold, stretch;
3. Activity crossbeam has safety limiter in both up and down directions;
4. Equipped with photoelectric protection device, could guarantee the safety of the operation;
5. With the function of automatic and manual, it's convertible;
6. Two operation model, viz. pressure regulation and stroke regulation which can beselected through operational panel, and has the character of pressure-keeping and time-delaying.
Usage
1. Auto parts: automobile body covering parts, braking, fuel tanks, chassis, axle case, bumper;
2. Household appliance: washing machine, TV, refrigerator, air conditioning, rice cooker and other parts;
3. Kitchenware: sink, tea set and Other kinds of containers.
