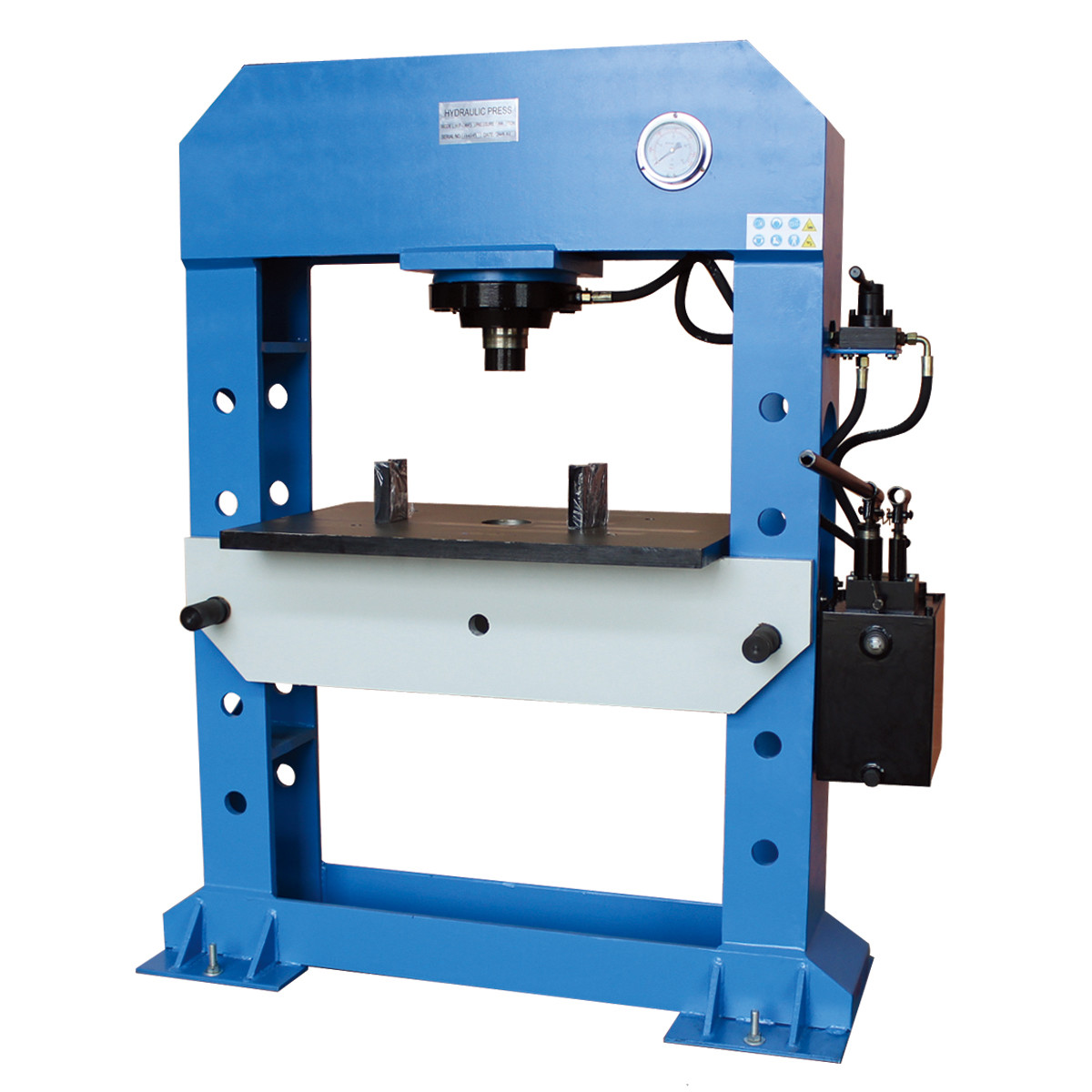

Manual 2 post hydraulic press HP-100S / hydraulic press machine / hydraulic bending machine
Manual 2 Post Hydraulic Press features:
HP series hydraulic presses are used for assembling, dismantling, alignment, calendaring, tension, bending and punching.
Italy CNK & CBZ oil pump
Save 60% energy compared with traditional model
The efficiency increased to 2-3 times
It takes advantages of small volume, high pressure, simple structure and light weight.
Manual
Manual 2 Post Hydraulic Press technical specification:
| Model | HP-10S | HP-20S | HP-30S | HP-40S | HP-50S |
| Capacity (KN) | 100 | 200 | 300 | 400 | 500 |
| Pressure (Mpa) | 20 | 50 | 50 | 60 | 60 |
| Travel (mm) | 180+450 | 200+450 | 200+450 | 250+450 | 250+450 |
| Tale size (mm) | 200*300 | 200*300 | 300*400 | 360*500 | 360*680 |
| Dimension (mm) | 500*350*1300 | 500*350*1300 | 550*400*1500 | 1000*550*1500 | 1000*600*1750 |
| Weight (KG) | 220 | 260 | 320 | 380 | 460 |
| Model | HP-80S | HP-100S | HP-150S | HP-200S |
| Capacity (KN) | 800 | 1000 | 1500 | 2000 |
| Pressure (Mpa) | 40 | 40 | 40 | 40 |
| Travel (mm) | 300 | 300 | 300 | 300 |
| Tale size (mm) | 500*400 | 800*400 | 800*400 | 1000*500 |
| Dimension (mm) | 1560*650*1950 | 1600*650*2100 | 1730*730*2150 | 1800*800*2250 |
| Weight (KG) | 820 | 980 | 1100 | 160 |
Product details:
1. WHY CHOOSE US?
Pre-sale:
(1) Regarding your demands, the best suitable machine will be recommend you, the customized machine also support;
(2) Regarding your country requirements, some certificates will supply to help you clearance. Like CE,CO, FORM-A, FORM-E, FORM-F, original certificate signed by Embassy.etc.
(3) All the machine will be tested before delivery, and we will take the video and pictures to you. When you receive it , it can work directly.
After-sales
(1) We will supply all the control system and software operate manual,so you can operate the machine easily refer it.
(2) All the machine problem , you can ask me any time , we will help you solve by online way ,or tel,email,remote video at first time ,if all these can’t solve your problem , our engineer will go to your factory to help you on spot.
Welcome to our factory for learning how to operate machine ,one professional engineer will together with you , this service for free.
2. Guarantee
One year for whole machine , any parts except consumables broken regarding machine quality within one year,We will send you the parts for free.
3. Are you factory or trading company?

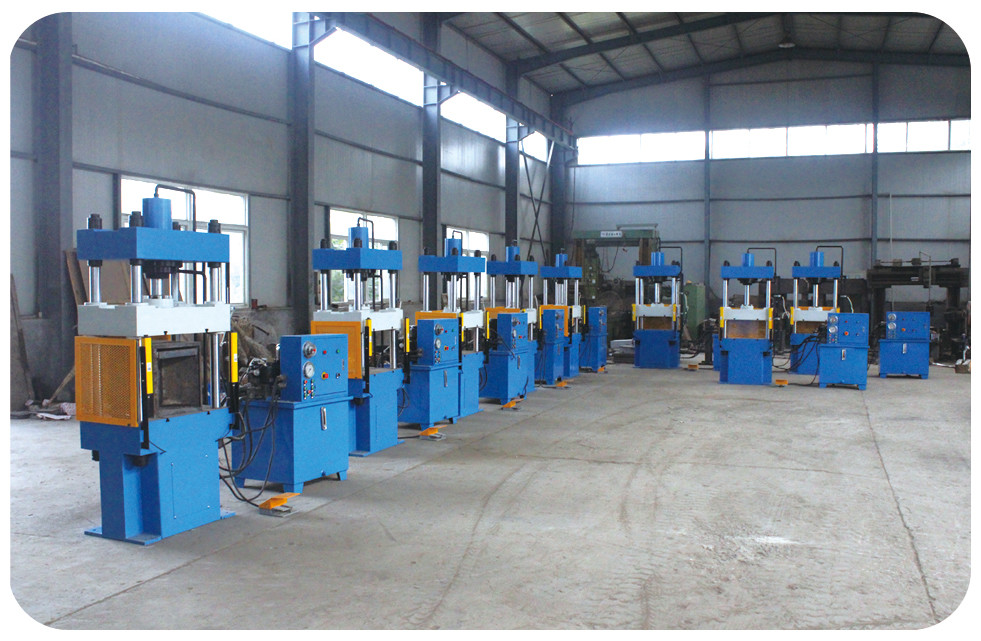

We are factory in an industrial town near Nanjing city.
4. What shall we do if don't know how to operate your machine?
We can arrange our engineers to your country and you can also send your engineers to our factory for learning operation. Besides, there are detailed installation and operating instructions attached. It's very simple, we have telephone and Email support at 24hours per day.
5. What are your payment terms?
We support T/T, L/C, Western Union and so on. Other ways can also be accepted after we both sides' discussion and agreement.
