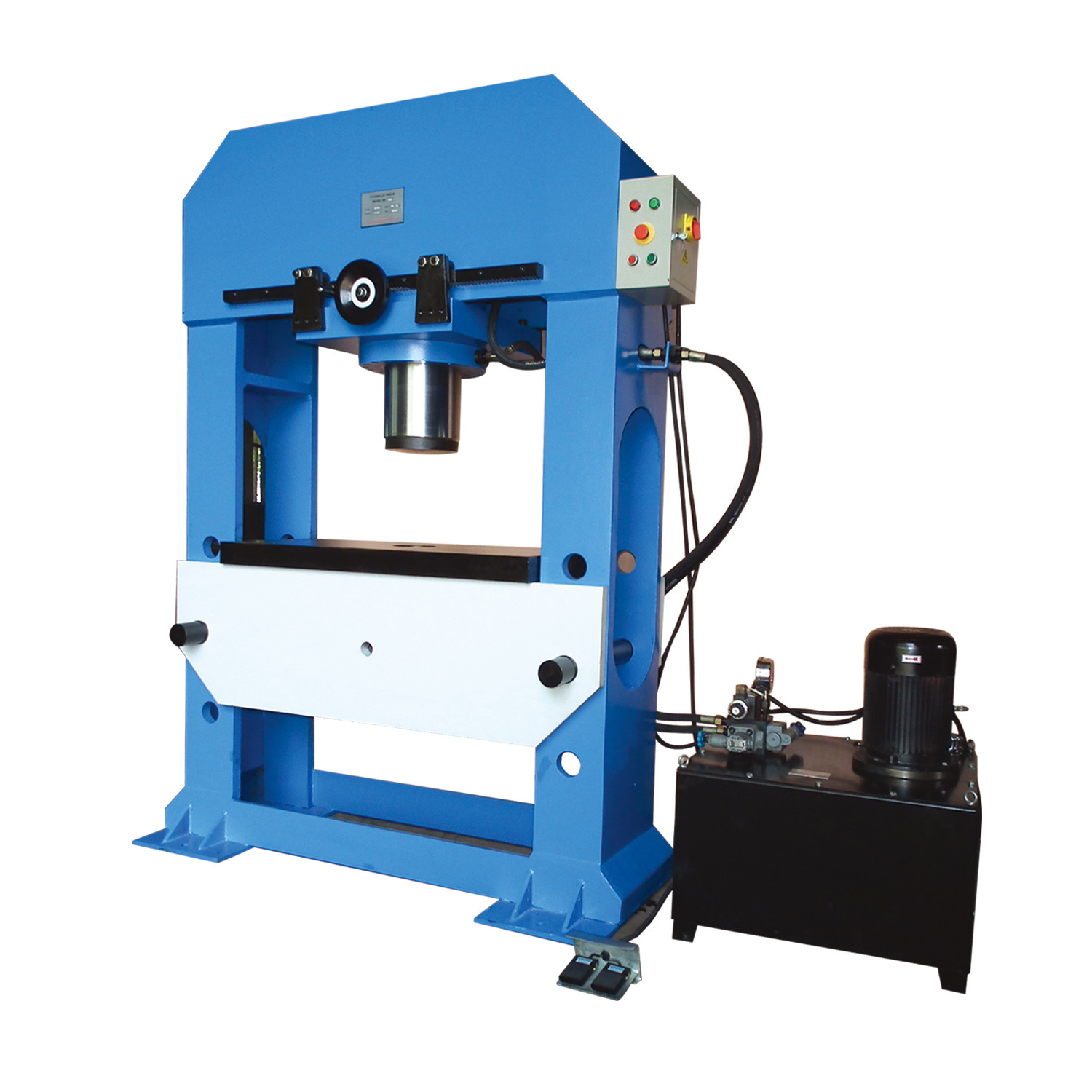

Mobile cylinder 2 post hydraulic press HP-300M / hydraulic press machine / hydraulic bending machine
Mobile cylinder 2 Post Hydraulic Press features:
HP series hydraulic presses are used for assembling, dismantling, alignment, calendaring, tension, bending and punching.
Italy CNK & CBZ oil pump
Save 60% energy compared with traditional model
The efficiency increased to 2-3 times
It takes advantages of small volume, high pressure, simple structure and light weight.
Mobile Cylinder
Mobile cylinder 2 Post Hydraulic Press technical specification:
| Model | HP-20M | HP-30M | HP-50M | HP-63M |
| Capacity (KN) | 200 | 300 | 500 | 630 |
| Pressure (Mpa) | 25 | 25 | 25 | 30 |
| Travel (mm) | 200+300 | 200+300 | 220+405 | 220+405 |
| Tale size (mm) | 250*360 | 300*400 | 400*500 | 400*500 |
| Dimension (mm) | 1100*450*1500 | 1100*450*1500 | 1500*650*1950 | 1500*650*1950 |
| Weight (KG) | 320 | 420 | 980 | 1020 |
| Model | HP-100M | HP-150M | HP-200M | HP-300M |
| Capacity (KN) | 1000 | 1500 | 2000 | 3000 |
| Pressure (Mpa) | 30 | 30 | 31.5 | 31.5 |
| Travel (mm) | 250+405 | 250+405 | 300+405 | 300+405 |
| Tale size (mm) | 440*980 | 440*980 | 500*1000 | 700*1200 |
| Dimension (mm) | 1730*730*2250 | 1730*730*2250 | 1940*950*2230 | 2100*950*2700 |
| 730*630*960 | 730*630*960 | 900*800*1060 | 1100*1200*1350 | |
| Weight (KG) | 1220 | 1350 | 2200 | 4200 |

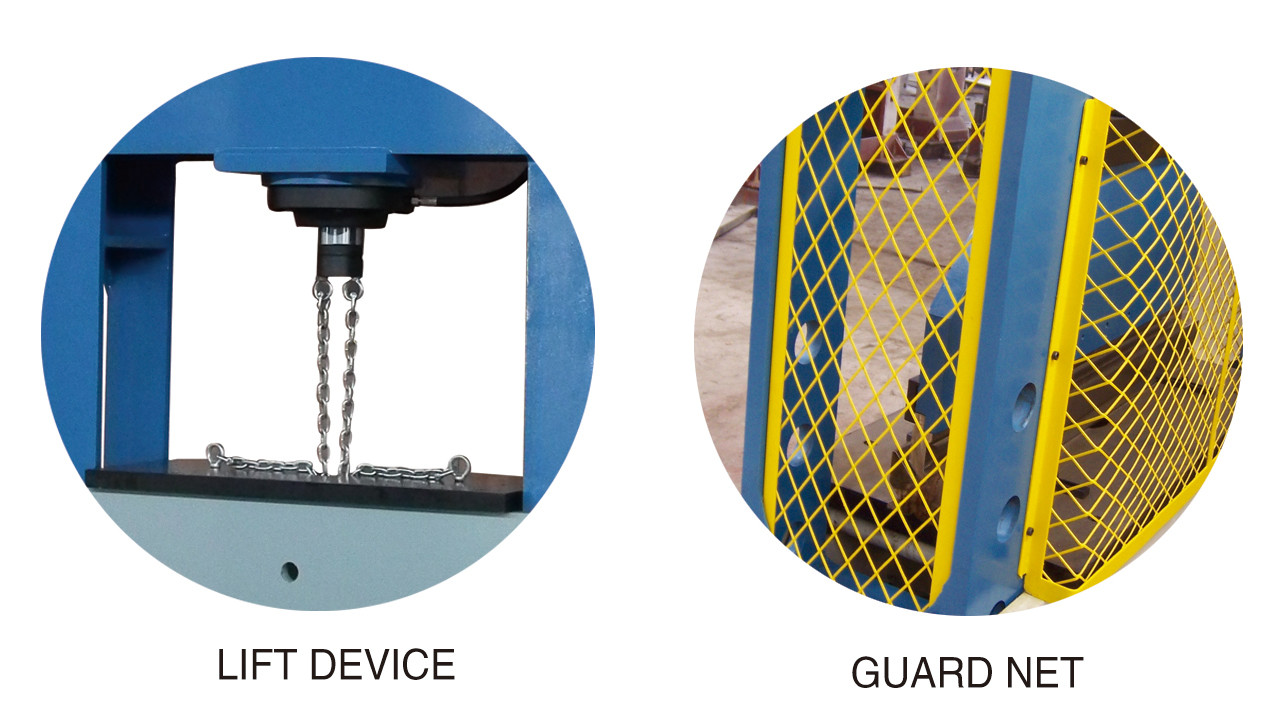

Product details:
FAQ
Q. What are your normal lead times?
A. Our company typical lead times range from 3-4weeks after receipt of order.
Q. What are the terms of payments you offer?
A. We accept payment of T/T, L/C, and Western Union, cash, O/A etc.
Q. What kind of package do you offer?
A. Normally in plywood case, to make sure all goods in good condition.
Q. What is the MOQ for your production?
A. The MOQ depends on your requirements for color, logo and so on. For some normal items, we have in stock, the MOQ is 1 set.
Q. Do you have CE certification
A. Yes, we have CE certification, machine quality is one year guaranteed.
Q. How to control the quality of the products?
A. We have always placed great emphasis on the quality level is maintained. Moreover, the principle we always maintain is "to provide customers better quality, better price, and better service".
Why choose us
Online/Offline Technical Support
Service Parts Availability 100%
Professional Shop Design & Upgrade
Support Technical Training
