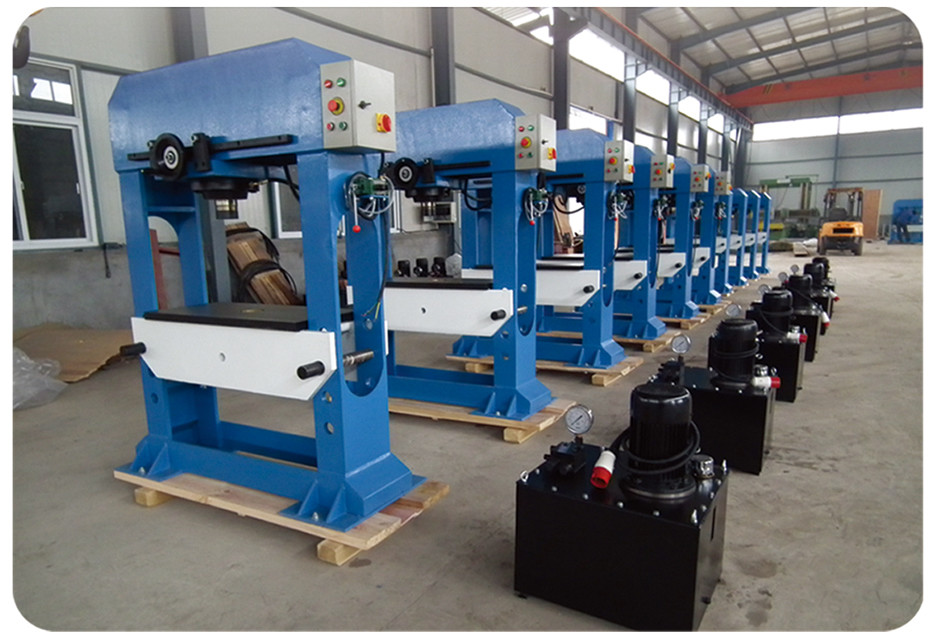

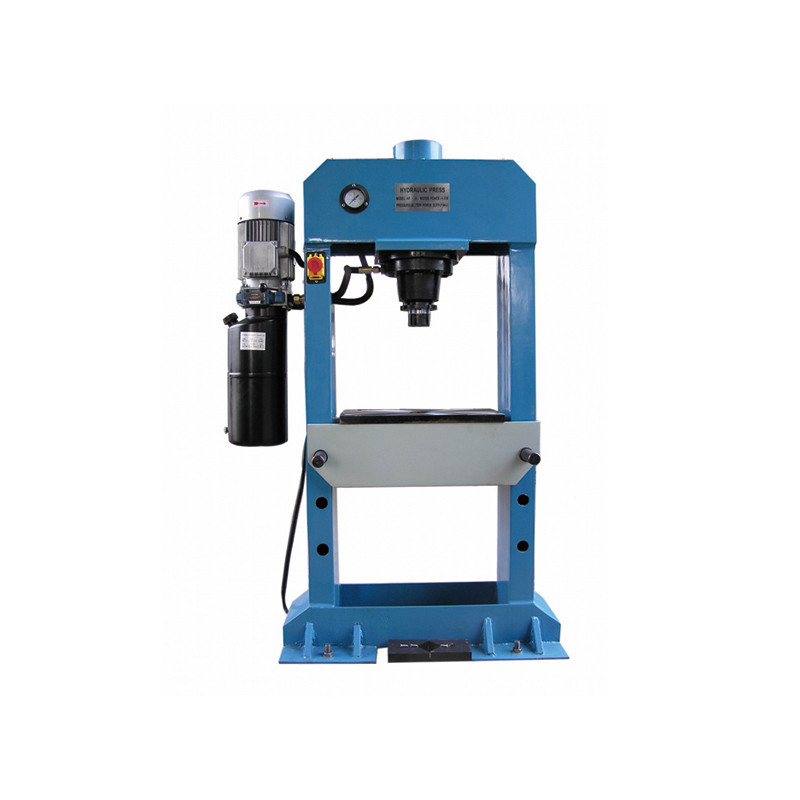

2 post hydraulic press HP-20 / hydraulic press machine / hydraulic bending machine
2 Post Hydraulic Press features:
HP series hydraulic presses are used for assembling, dismantling, alignment, calendaring, tension, bending and punching.
Italy CNK & CBZ oil pump
Save 60% energy compared with traditional model
The efficiency increased to 2-3 times
It takes advantages of small volume, high pressure, simple structure and light weight.
2 Post Hydraulic Press technical specification:
| Model | HP-10 | HP-20 | HP-30 | HP-50 | HP-63 |
| Capacity (KN) | 100 | 200 | 300 | 500 | 630 |
| Pressure (Mpa) | 25 | 25 | 25 | 25 | 30 |
| Travel (mm) | 200+200 | 200+250 | 200+270 | 220+405 | 220+405 |
| Tale size (mm) | 260*300 | 260*300 | 300*400 | 480*360 | 400*500 |
| Dimension (mm) | 1000*450*1200 | 1160*550*1500 | 1160*550*1600 | 1500*650*1950 | 1500*650*1950 |
| Weight (KG) | 220 | 320 | 420 | 980 | 1020 |
| Model | HP-100 | HP-150 | HP-200 | HP-250 |
| Capacity (KN) | 1000 | 1500 | 2000 | 2500 |
| Pressure (Mpa) | 30 | 30 | 30 | 30 |
| Travel (mm) | 250+405 | 250+405 | 300+405 | 300+405 |
| Tale size (mm) | 440*980 | 440*980 | 500*980 | 500*980 |
| Dimension (mm) | 1730*730*2200 | 1730*730*2200 | 1800*800*2200 | 1800*800*2250 |
| 730*630*960 | 730*630*960 | 830*730*1260 | 830*730*1260 | |
| Weight (KG) | 1220 | 1350 | 2200 | 2400 |
