ISO 140RPM Motorcycle Tyre Balancing Machine High Accuracy
1 unit
MOQ
Chat with supplier
Price
ISO 140RPM Motorcycle Tyre Balancing Machine High Accuracy
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: OEM
Certification: CE, ISO
Model Number: WB-900
High Light:

140RPM Motorcycle Tyre Balancing Machine

,

ISO Motorcycle Tyre Balancing Machine

,

ISO motorcycle wheel balancing machine
Payment & Shipping Terms
Packaging Details: Wooden Box, quantity in 20' container: 34, quantity in 40' container: 72
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T
Supply Ability: 50000 units per year
Specifications
Balancing Type Of Wheel: Off-Car Type
Balancing Range: 1"-28" Rim
Warranty: 1 Year
Type: Vertical Type
Voltage: 110v 220v 380v Optional
Name: Tire Balancing Equipment
Product Description

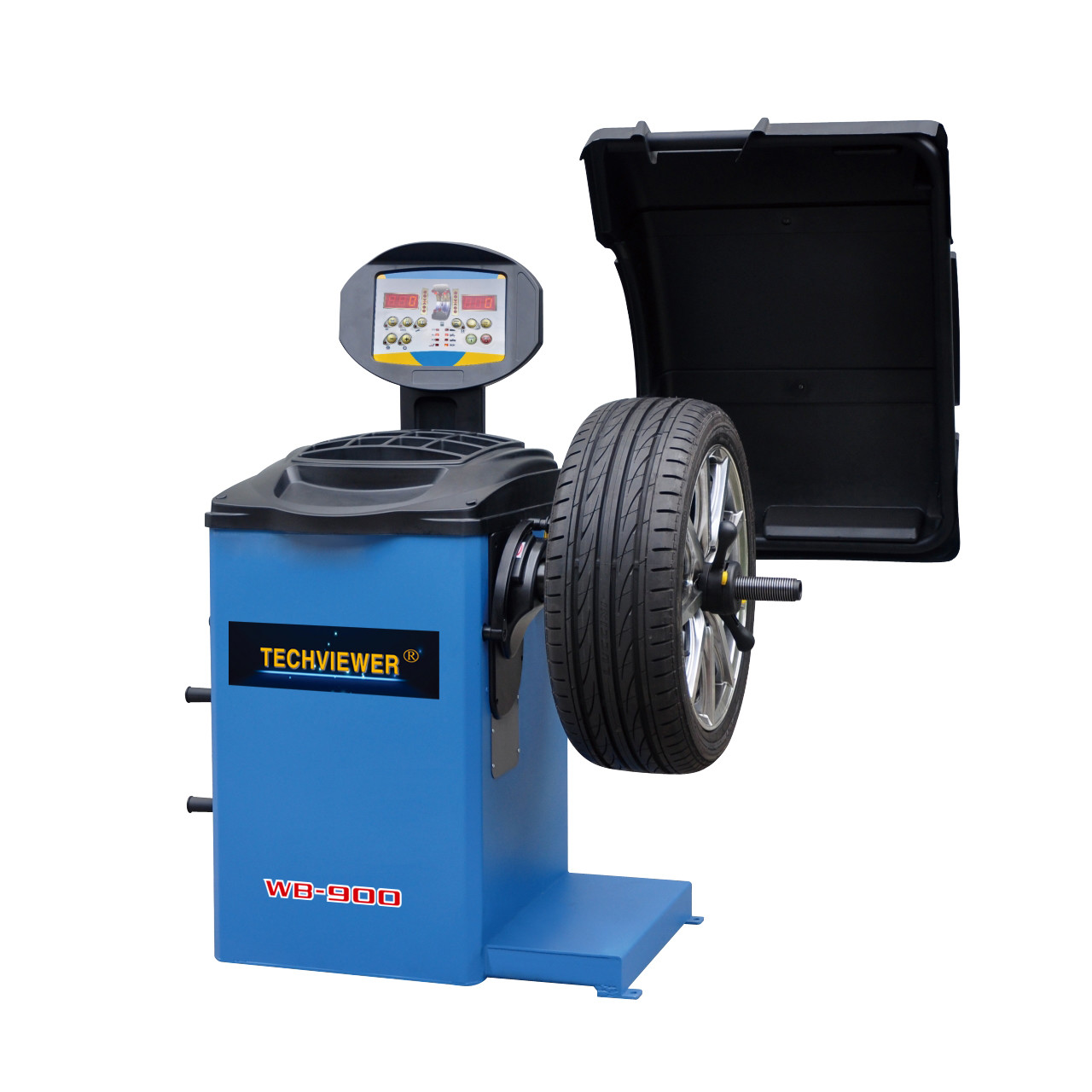

Wheel balancer WB-900 / wheel balancing machine / car wheel balancer / tyre balancer

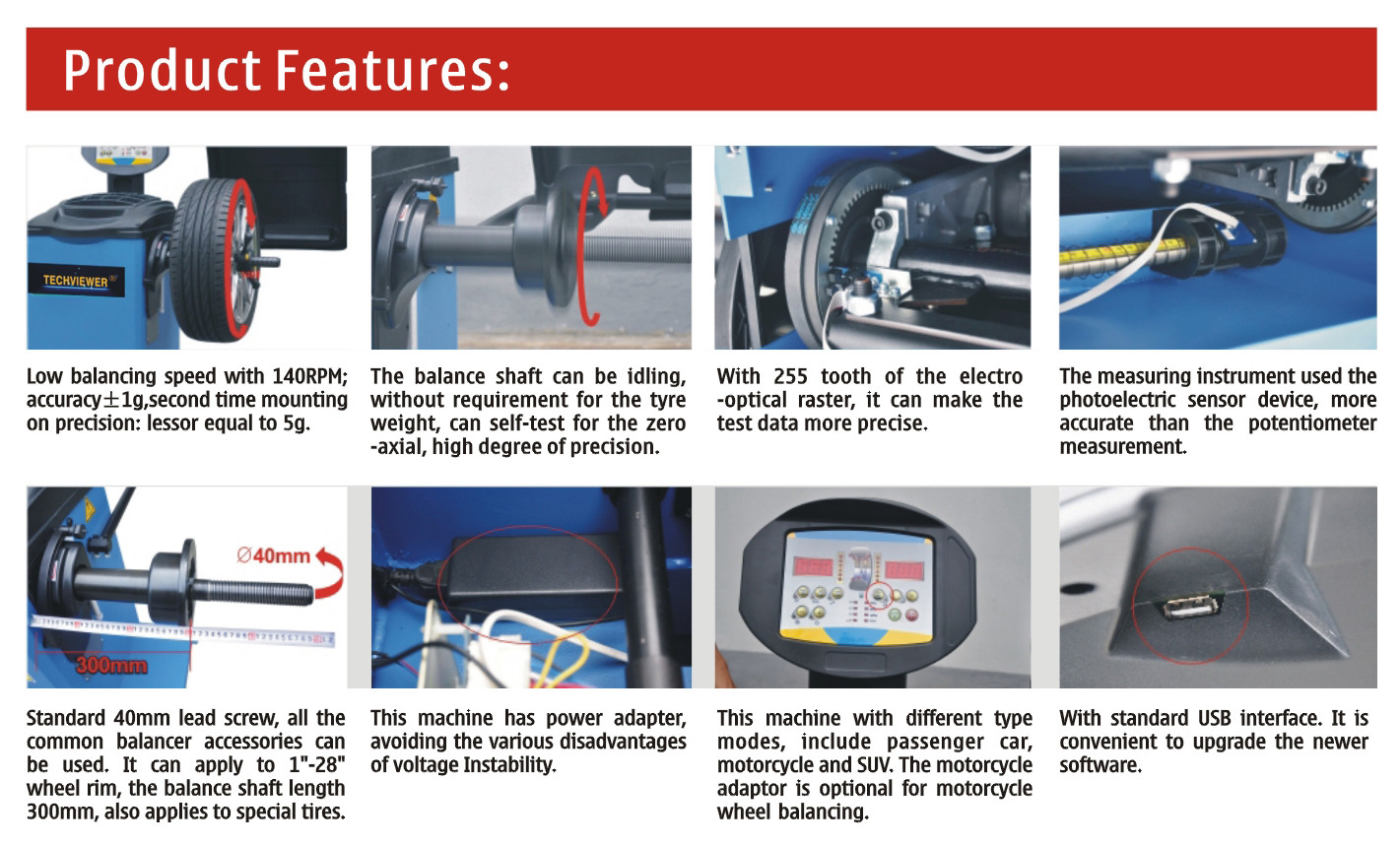

WB-900 Wheel balancer features:

  1. Low balancing speed with 140RPM, accuracy ±1g, second time mounting on precision: less or equal to 5g.
  2. The machine with different type modes, include passenger vehicle, motorcycle and SUV. The motorcycle adapter is optional for motorcycle wheel balancing.
  3. With 255 tooth of the electro-optical raster, it can make the test data more precision.
  4. The measuring instrument used the photoelectric sensor device, more accurate than the potentiometer measurement.
  5. Standard 40mm lead screw, all the common balancer accessories can be used. It can apply to 1-28 inch wheel rim, the balance shaft length 300mm, also applies to special tyres.
  6. The machine has power adapter, avoiding the various disadvantages instability.
  7. The balance shaft can be iding, without requirement for the tyre weight, can self-test for the zero-axial, high degree of precision.
  8. With standard USB interface. It is convenient to upgrade to newer software.

ISO 140RPM Motorcycle Tyre Balancing Machine High Accuracy 0

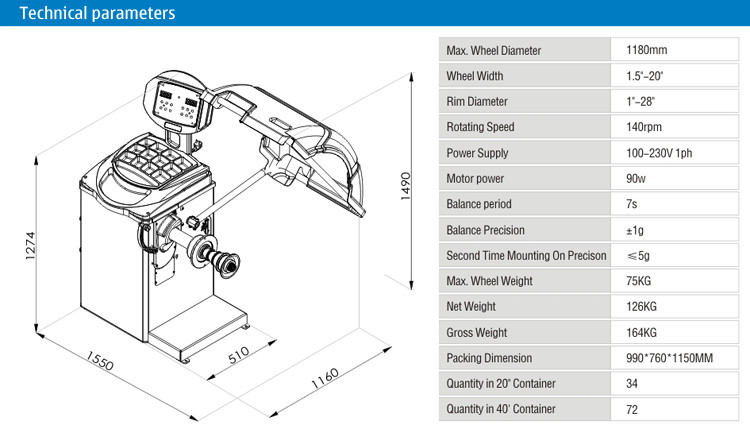

WB-900 Wheel balancer technical specification:

Model WB-630 WB-900 WB-920 WB-950 WB-970
Rim diameter 10'-24' 1'-28' 1'-28' 1'-28' 1'-28'
Max wheel diameter 1000mm 1180mm 1180mm 1180mm 1180mm
Rim width 1.5'-20' 1.5'-20' 1.5'-20' 1.5'-20' 1.5'-20'
Max wheel weight 65kg 75kg 75kg 75kg 75kg
Balancing speed 200rpm 140rpm 140rpm 140rpm 140rpm
Balancing precision ±1g ±1g ±1g ±1g ±1g
Motor power 0.25kw 0.09kw 0.09kw 0.09kw 0.09kw
Cycle time 8s 7s 7s 7s 7s
Noise <70db <70db <70db <70db <70db



ISO 140RPM Motorcycle Tyre Balancing Machine High Accuracy 1

ISO 140RPM Motorcycle Tyre Balancing Machine High Accuracy 2



Product details:

ISO 140RPM Motorcycle Tyre Balancing Machine High Accuracy 3



More Products: tire changer | car lift | wheel balancer | brake disk lathe

ISO 140RPM Motorcycle Tyre Balancing Machine High Accuracy 4



Company & factory
ISO 140RPM Motorcycle Tyre Balancing Machine High Accuracy 5



Why choose us
Online/Offline Technical Support
Service Parts Availability 100%
Professional Shop Design & Upgrade
Support Technical Training
