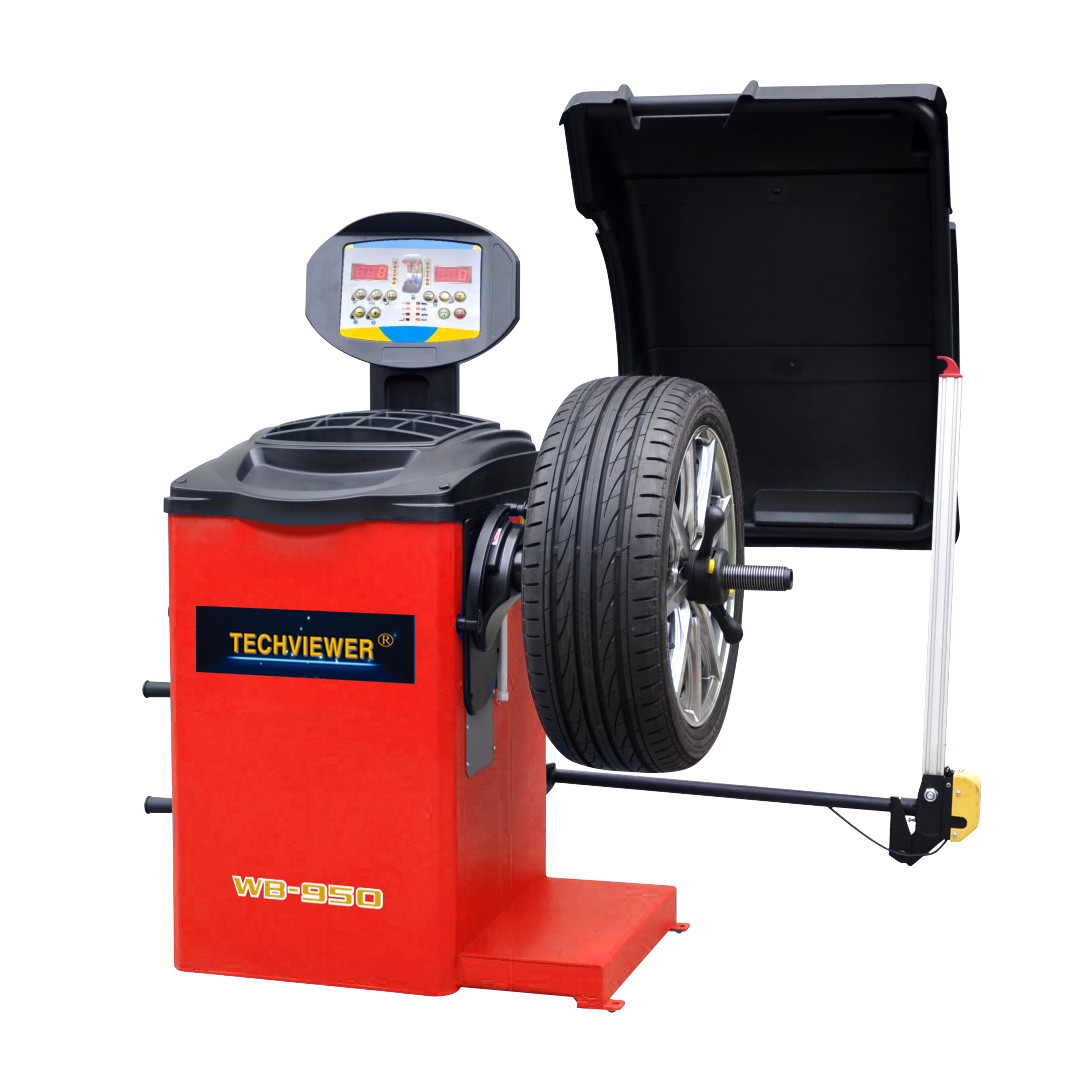

Wheel balancer WB-950 / wheel balancing machine

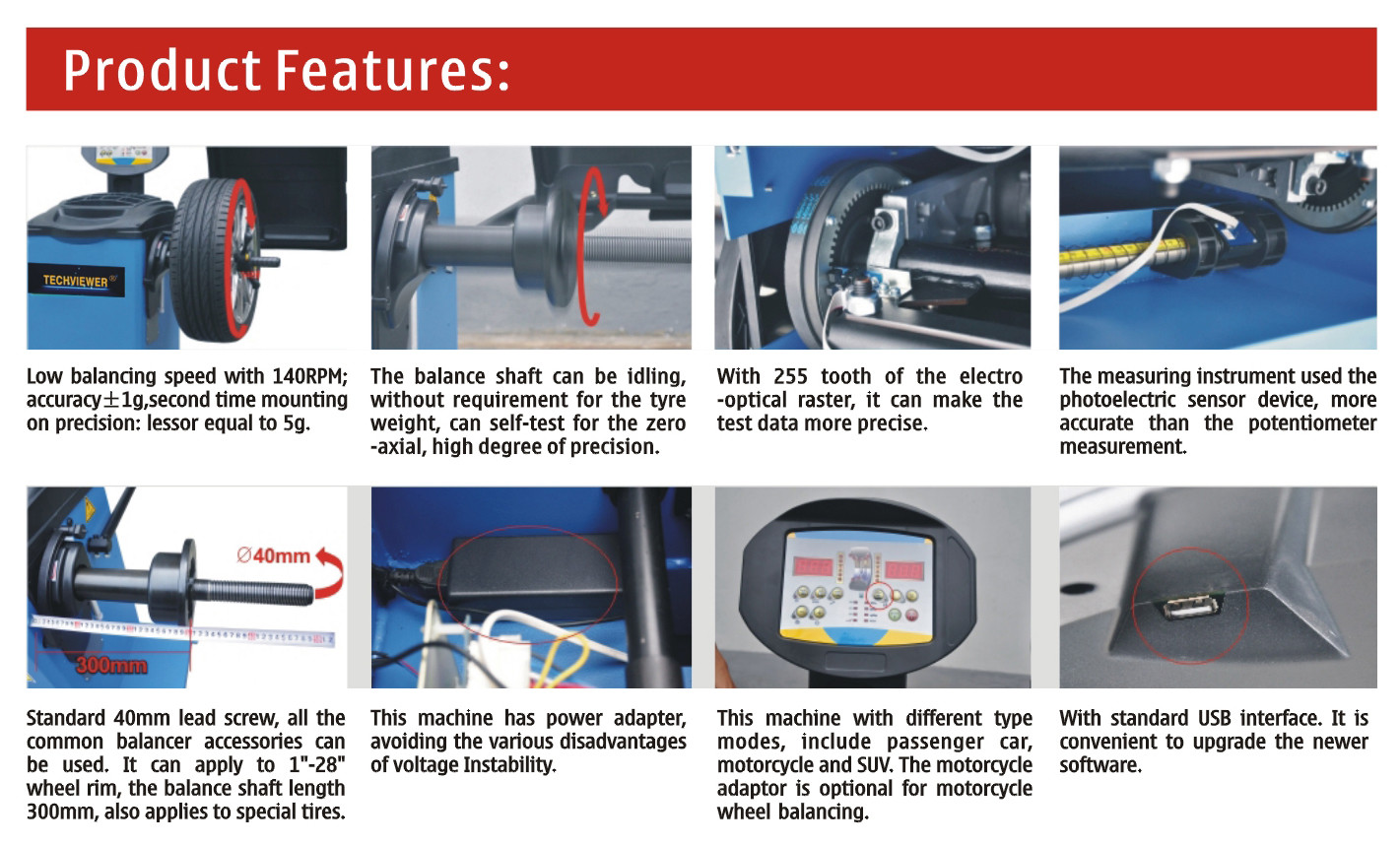

Wheel balancer features:
1. Low balancing speed with 140RPM, accuracy ±1g, second time mounting on precision: less or equal to 5g.
2. The balance shaft can be iding, without requirement for the tyre weight, can self-test for the zero-axial, high degree of precision.
3. With 255 tooth of the electro-optical raster, it can make the test data more precision.
4. The measuring instrument used the photoelectric sensor device, more accurate than the potentiometer measurement.
5. Standard 40mm lead screw, all the common balancer accessories can be used. It can apply to 1-28 inch wheel rim, the balance shaft length 300mm, also applies to special tyres.
6. The machine has power adapter, avoiding the various disadvantages instability.
7. The machine with different type modes, include passenger vehicle, motorcycle and SUV. The motorcycle adapter is optional for motorcycle wheel balancing.
8. With standard USB interface. It is convenient to upgrade to newer software.

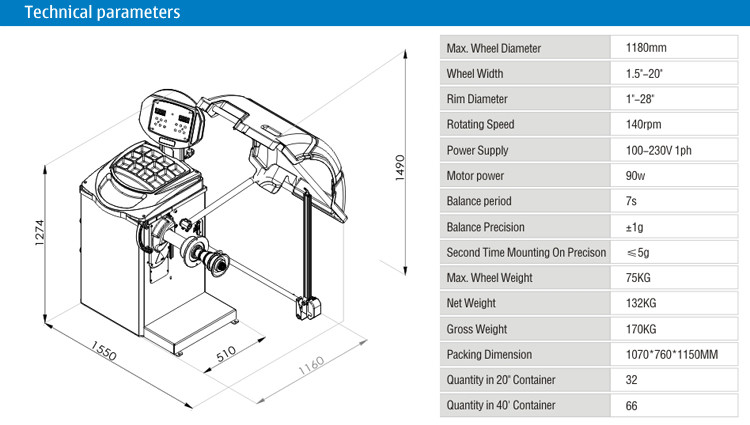

WB-950 Wheel balancer technical specification:
| Model | WB-950 |
| Rim diameter | 1'-28' |
| Max wheel diameter | 1180mm |
| Rim width | 1.5'-20' |
| Max wheel weight | 75kg |
| Balancing speed | 140rpm |
| Balancing precision | ±1g |
| Motor power | 0.09kw |
| Cycle time | 7s |
| Noise | <70db |
Product details:
This prioduct makes fine adjustment for the tyres of the carious light vehicles.
Machine functions:
1. it can realize automatic dynamic balance, static balance and aluminum alloy rim balance.
2. adopting pressure sensor, pressure datas show high precision.
3. the protective cover is optional.
machine quality :
this product gained Europe CE certificate.
OEM Service
As we are factory , yes, we do OEM for your machine, we can following your drawing and making the production.
Warranty
12 month warranty since out of factory ,during warranty time , if parts damaged, we will send to you for free.
