Home /Products/Wheel Balancing Machine/0.09kw Mobile Wheel Balancing Machine 140rpm With 19"HD Monitor

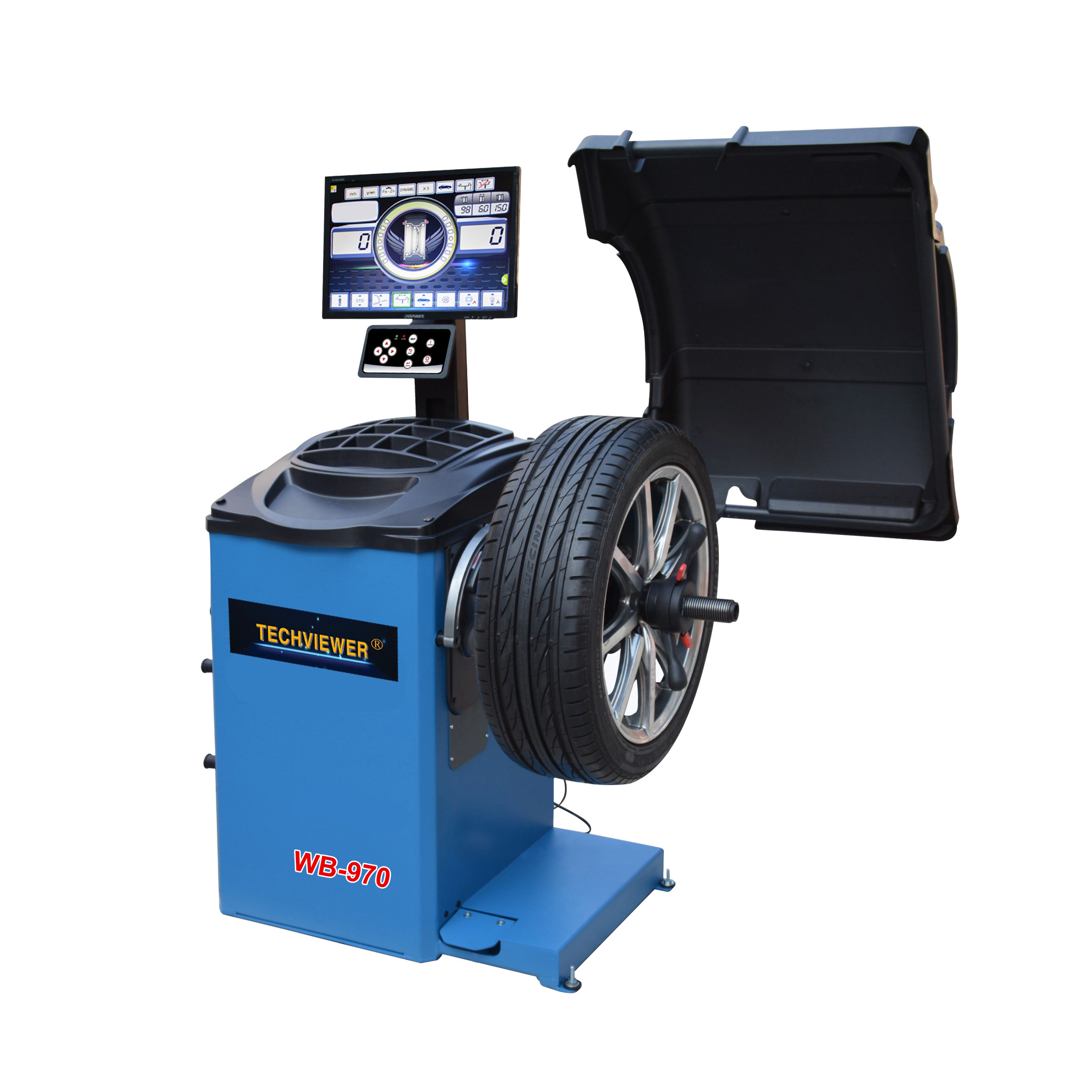

0.09kw Mobile Wheel Balancing Machine 140rpm With 19"HD Monitor
1 unit
MOQ
Chat with supplier
Price
0.09kw Mobile Wheel Balancing Machine 140rpm With 19"HD Monitor
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: OEM
Certification: CE, ISO
Model Number: WB-970
High Light:

Wheel Balancing Machine 140rpm

,

0.09kw Mobile Wheel Balancing Machine

,

0.09kw tire balancing machine
Payment & Shipping Terms
Packaging Details: Wooden Box, quantity in 20' container: 34, quantity in 40' container: 72
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T
Supply Ability: 50000 units per year
Specifications
Balancing Type Of Wheel: Off-Car Type
Balancing Range: 1"-28" Rim
Warranty: 1 Year
Type: Vertical Type
Voltage: 110v 220v 380v Optional
Name: Car Wheel Balancing Machine
Product Description

LCD wheel balancer WB-970 / wheel balancing machine / car wheel balancer / tyre balancer

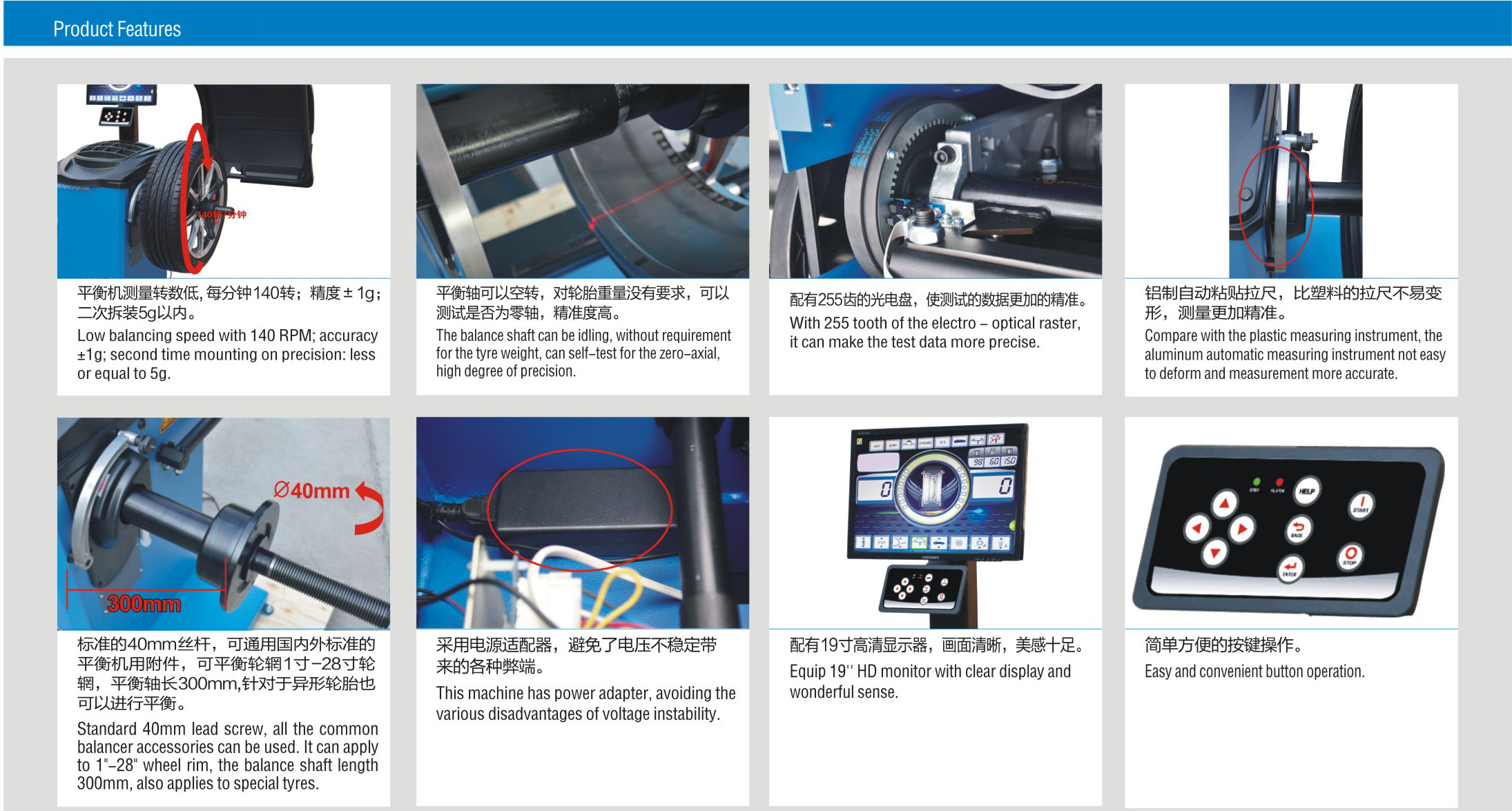

LCD wheel balancer features:

  1. Low balancing speed with 140RPM, accuracy ±1g, second time mounting on precision: less or equal to 5g.
  2. The balance shaft can be iding, without requirement for the tyre weight, can self-test for the zero-axial, high degree of precision.
  3. With 255 tooth of the electro-optical raster, it can make the test data more precision.
  4. Compare with the plastic measuring instrument, the aluminum automatic measuring instrument not easy to deform and measurement more accurate.
  5. Standard 40mm lead screw, all the common balancer accessories can be used. It can apply to 1-28 inch wheel rim, the balance shaft length 300mm, also applies to special tyres.
  6. The machine has power adapter, avoiding the various disadvantages instability.
  7. Equip 19 inch HD LCD monitor with clear display and wonderful sense.
  8. Easy and convenient button operation.

0.09kw Mobile Wheel Balancing Machine 140rpm With 19"HD Monitor 0

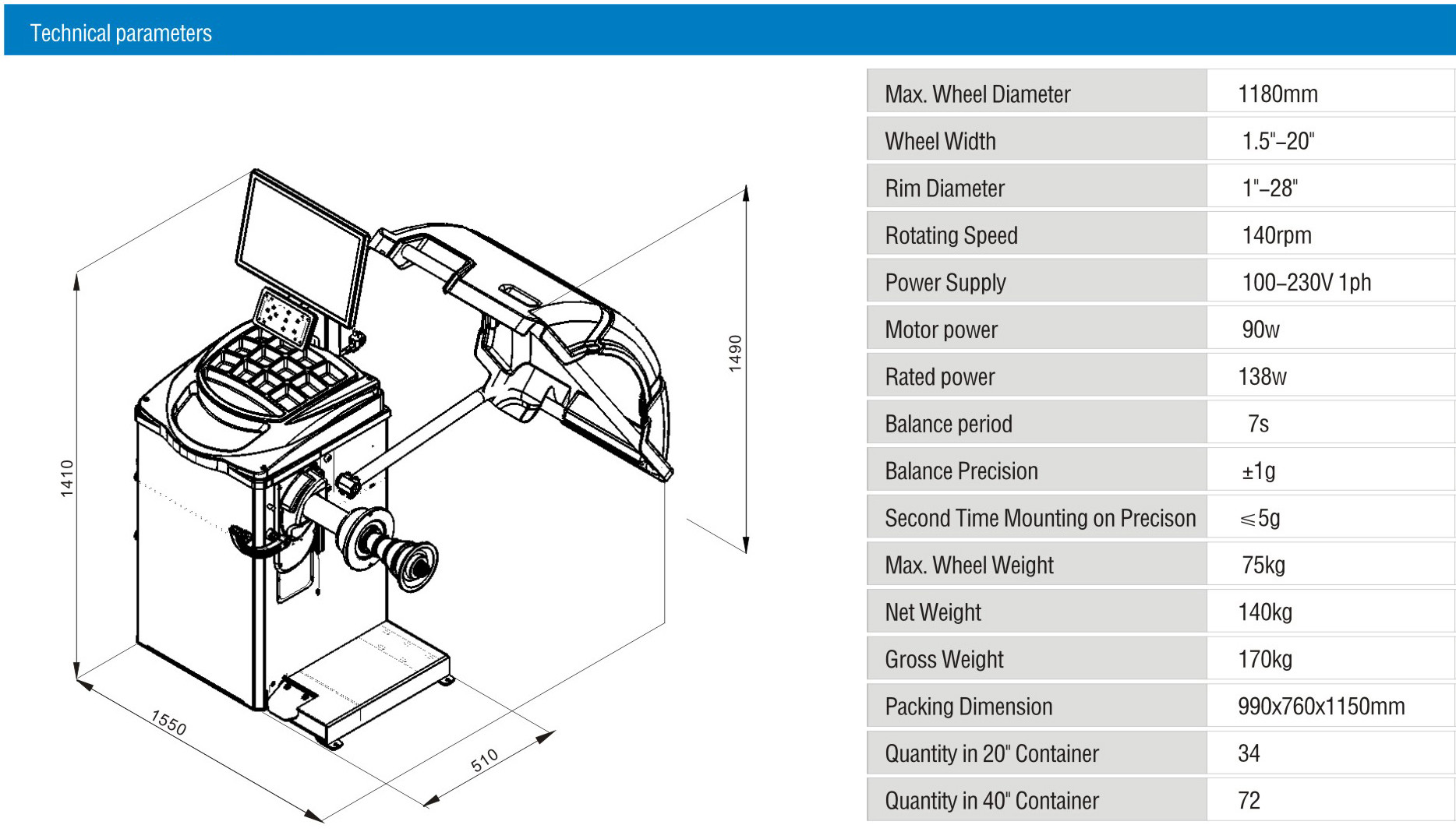

LCD wheel balancer technical specification:

Model WB-630 WB-900 WB-920 WB-950 WB-970

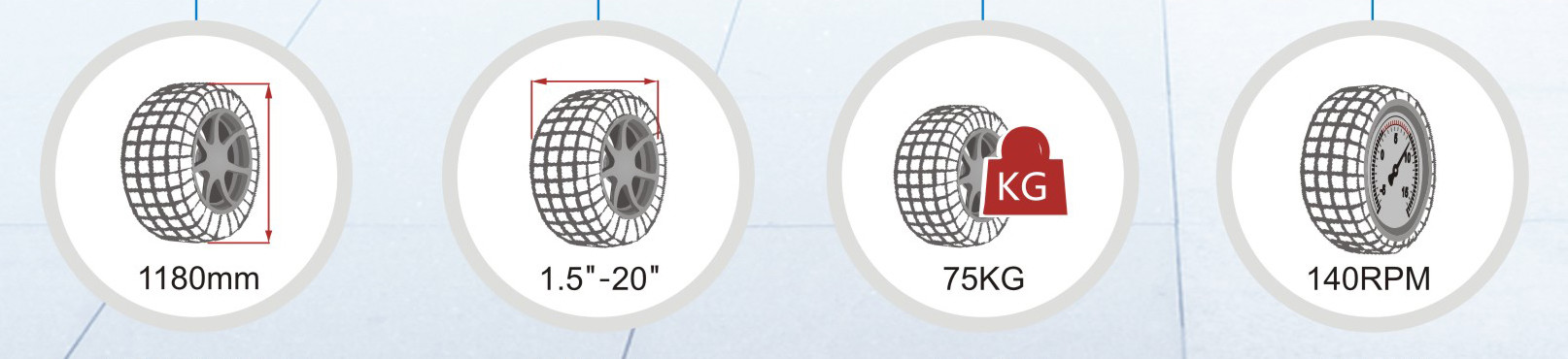

Rim diameter 10'-24' 1'-28' 1'-28' 1'-28' 1'-28'
Max wheel diameter 1000mm 1180mm 1180mm 1180mm 1180mm
Rim width 1.5'-20' 1.5'-20' 1.5'-20' 1.5'-20' 1.5'-20'
Max wheel weight 65kg 75kg 75kg 75kg 75kg
Balancing speed 200rpm 140rpm 140rpm 140rpm 140rpm
Balancing precision ±1g ±1g ±1g ±1g ±1g
Motor power 0.25kw 0.09kw 0.09kw 0.09kw 0.09kw
Cycle time 8s 7s 7s 7s 7s
Noise <70db <70db <70db <70db <70db



0.09kw Mobile Wheel Balancing Machine 140rpm With 19"HD Monitor 1



0.09kw Mobile Wheel Balancing Machine 140rpm With 19"HD Monitor 2



Product details:

0.09kw Mobile Wheel Balancing Machine 140rpm With 19"HD Monitor 3





Why choose us
Online/Offline Technical Support
Service Parts Availability 100%
Professional Shop Design & Upgrade
Support Technical Training
