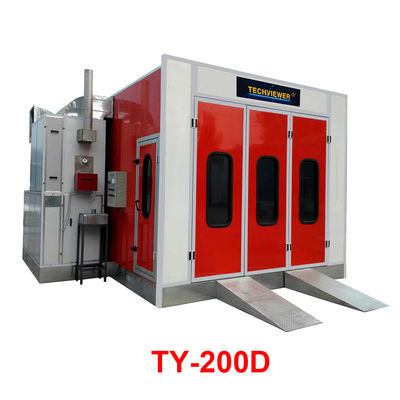

Spray booth TY-200D / spray baking booth / spray painting machine / car coating machine
Spray booth features:
Cabin System:
EPS Purification color steel plate,50mm thick,steel 0.5mm thick,tongue&groove style,anti-flame and heat-insulation, galvanized steel roof panel.
3-fold main doors, 2900*2500mm(W×H), with safety glass windows,aluminum alloy frame, handle and lock.
1 unit 700*1900mm(W×H), with safety glass windows,aluminum alloy frame,handle and high-pressure safty lock.

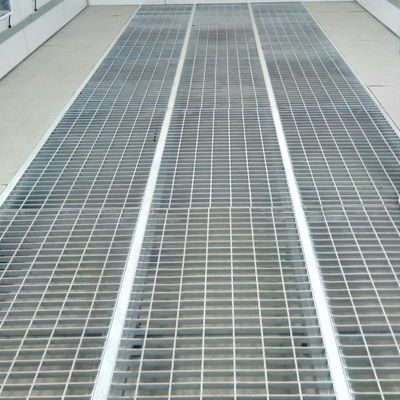

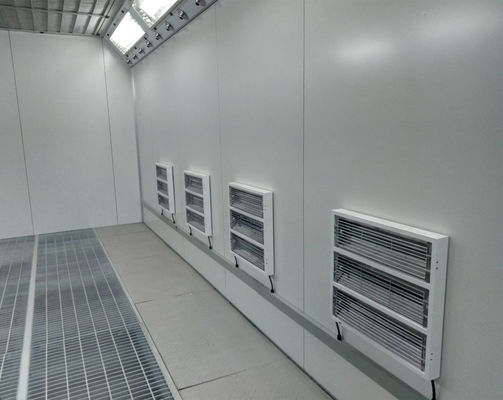

300mm height metal-base.Channel steel(12#), full rows of grid plates made by flat bar and round steel(5*30#), galvanized. Two ramps.
Air Circulation system:
1 set 7.5kw Turbo fan- Intake fan, 1 set 5.5KW V-belt fan -Exhaust fan, Cabinet for the fans*1unit,Air Ducts*3pcs, Electric Damper(pneumatic)*1unit
Filtering system:
Pre-filter*1set,filtering rate>83%, Italy SF 700G high efficiency filter(ceiling filter) filtering rate>97%, floor filter(fiberglass filter) filtering>70%,activated carbon filter. Full galvanized grilled.
Heating system:
Italy Riello G20 Diesel Burner.Stainless steel heat exchanger,argon arc welding. 5~10 minutes reaching the baking temperature 60°c~80°c. 1 unit of cabinet(rock wool insulation) for the burner&heat exchanger; 2 pcs of air ducts
Lighting system:

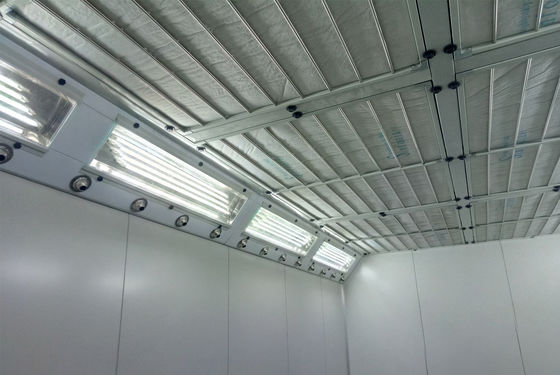

Ceiling Lights: 10Units×4Pcs=40Pcs×16W, LED Light . Side Lights: 8Units×2Pcs=16Pcs×16W, LED light, coated light box.
Control system:
Touch Screen control panel,Micro-computer programmed controlling,Power switch,spray/baking switch,light switch, breakdown alarm,emergency stop.
Spray booth technical specification:
| Model | TY-200B | TY-300B | TY-200D |
| External size | 7000(L)*5250(W)*3250(H) | 7000(L)*5100(W)*3250(H) | 7000(L)*5350(W)*3450(H) |
| Internal size | 6900(L)*3900(W)*2600(H) | 6900(L)*3900(W)*2600(H) | 6900(L)*3900(W)*2800(H) |
| Door size | 2900*2500mm(W×H) | 2900*2500mm(W×H) | 2900*2700mm(W×H) |
| Safety door | 700*1900mm(W×H) | 700*1900mm(W×H) | 700*1900mm(W×H) |
| Intake fan | 4KW*2 | 7.5KW | 7.5KW (Turbo) |
| Outtake fan | 5.5KW | null | 5.5KW |
| Wallboard | 50mm | 50mm | 50mm (Purification plate) |
| Heating system | Italy Riello G20 Diesel Burner | Italy Riello G10 Diesel Burner | Italy Riello G20 Diesel Burner |
| Lighting system | Ceiling: 10Units×4Pcs=40Pcs×16W | Ceiling: 10Units×4Pcs=40Pcs×16W | Ceiling: 10Units×4Pcs=40Pcs×16W |
| Side: 8Units×2Pcs=16Pcs×16W | Side: 8Units×2Pcs=16Pcs×16W | Side: 8Units×2Pcs=16Pcs×16W | |
| Control system | Micro-computer | Micro-computer | Touch Screen |
| Max temperature | 80℃ | 80℃ | 80℃ |

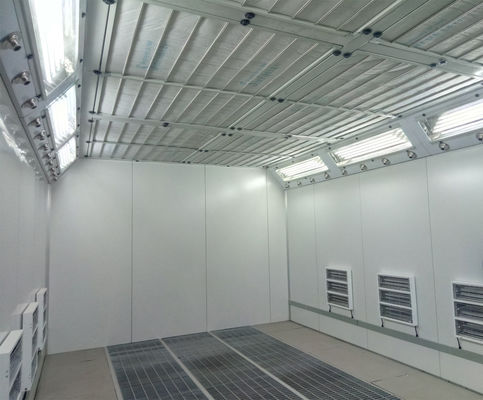

Product details:
Buying Guides
1. Brightness:the brightness of the paint room needs to reach 800-1000 lux, and the wall inside the room should be matte white.
2. Filter effect:this depends on the type of paint roof cotton, usually very fine dust per square meter should be Less than 5.
3. Wall sealing effect, the paint room must be sealed, and there should be no accumulation of paint dust at the joints.
4. The sealing effect of the heating system should be well sealed around the burner and the chimney, and the putty after burning should not appear.
5. Heating rate:usually the paint room to rise from 20 ° C to 60 ° C , the temperature should be measured in the paint room metal body temperature. If the selected paint booth can meet the above conditions, it is an ideal paint booth.
