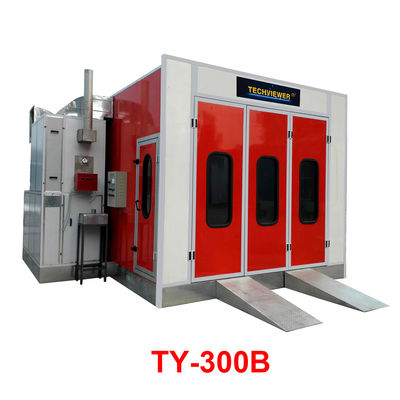

Spray booth TY-300B / spray baking booth / spray painting machine / car coating machine
Spray booth features:

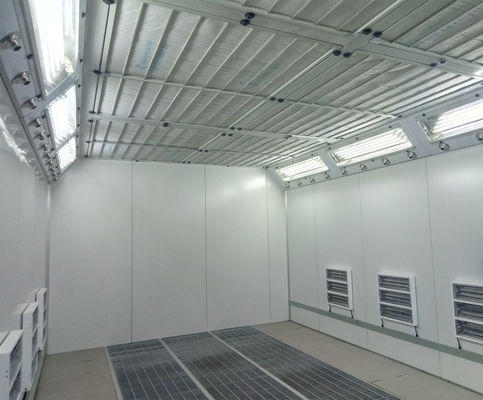

Cabin System:
EPS colorful steel skin panel,50mm thick,steel 0.4mm thick,tongue&groove style,anti-flame and heat-insulation, galvanized steel roof panel.
3-fold main doors, 2900*2500mm(W×H), with safety glass windows,aluminum alloy frame, handle and lock.
1 unit 700*1900mm(W×H), with safety glass windows,aluminum alloy frame,handle and high-pressure safty lock.

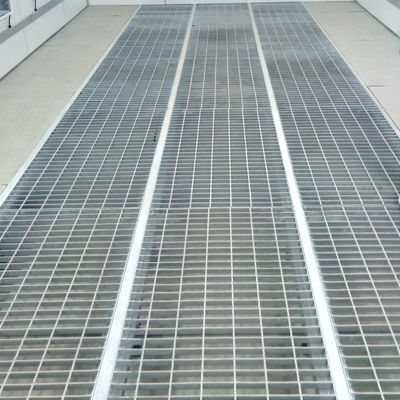

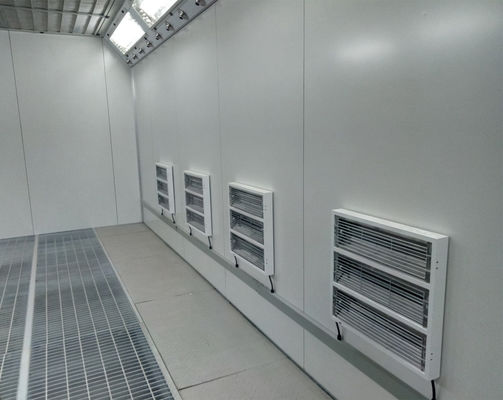

300mm height metal-base.Galvanized steel bending, full rows of grid plates made by flat bar and round steel(4*30#), galvanized. Two ramps.
Air Circulation system:
1 set 7.5kw Centrifugal fan- Intake fan, NO -Exhaust fan, Cabinet for the fans*1unit,Air Ducts*3pcs, Electric Damper(pneumatic)*1unit
Filtering system:

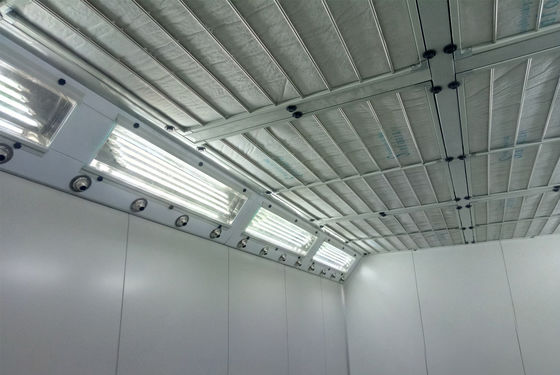

Pre-filter*1set,filtering rate>83%, Italy SF 700G high efficiency filter(ceiling filter) filtering rate>97%, floor filter(fiberglass filter) filtering>70%. Full galvanized grilled.
Heating system:
Italy Riello G10 Diesel Burner.Stainless steel heat exchanger,argon arc welding. 5~10 minutes reaching the baking temperature 60°c~80°c. 1 unit of cabinet(rock wool insulation) for the burner&heat exchanger; 2 pcs of air ducts
Lighting system:
Ceiling Lights: 10Units×4Pcs=40Pcs×16W, LED Light . Side Lights: 8Units×2Pcs=16Pcs×16W, LED light, coated light box.
Control system:
Micro-computer programmed controlling,Power switch,spray/baking switch,light switch, breakdown alarm,emergency stop.
Spray booth technical specification:
| Model | TY-200B | TY-300B | TY-200D |
| External size | 7000(L)*5250(W)*3250(H) | 7000(L)*5100(W)*3250(H) | 7000(L)*5350(W)*3450(H) |
| Internal size | 6900(L)*3900(W)*2600(H) | 6900(L)*3900(W)*2600(H) | 6900(L)*3900(W)*2800(H) |
| Door size | 2900*2500mm(W×H) | 2900*2500mm(W×H) | 2900*2700mm(W×H) |
| Safety door | 700*1900mm(W×H) | 700*1900mm(W×H) | 700*1900mm(W×H) |
| Intake fan | 4KW*2 | 7.5KW | 7.5KW (Turbo) |
| Outtake fan | 5.5KW | null | 5.5KW |
| Wallboard | 50mm | 50mm | 50mm (Purification plate) |
| Heating system | Italy Riello G20 Diesel Burner | Italy Riello G10 Diesel Burner | Italy Riello G20 Diesel Burner |
| Lighting system | Ceiling: 10Units×4Pcs=40Pcs×16W | Ceiling: 10Units×4Pcs=40Pcs×16W | Ceiling: 10Units×4Pcs=40Pcs×16W |
| Side: 8Units×2Pcs=16Pcs×16W | Side: 8Units×2Pcs=16Pcs×16W | Side: 8Units×2Pcs=16Pcs×16W | |
| Control system | Micro-computer | Micro-computer | Touch Screen |
| Max temperature | 80℃ | 80℃ | 80℃ |
