14-56 Inch Rim Automatic Truck Tire Changing Machine 5CBM
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: OEM
Certification: CE, ISO
Model Number: TC-850
High Light:

Truck Tire Changing Machine 5CBM


56 Inch Truck Tire Changing Machine


truck tyre changer machine 5CBM

Payment & Shipping Terms
Packaging Details: Wooden Box, quantity in 20' container: 4, quantity in 40' container: 10
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T
Supply Ability: 50000 units per year
Power Source: Electric
Automatic: Automatic
Warranty: 1 Year
Wheel Range: 14"-56" Rim
Voltage: 110v 220v 380v Optional
Name: Truck Tyre Changer
Product Description

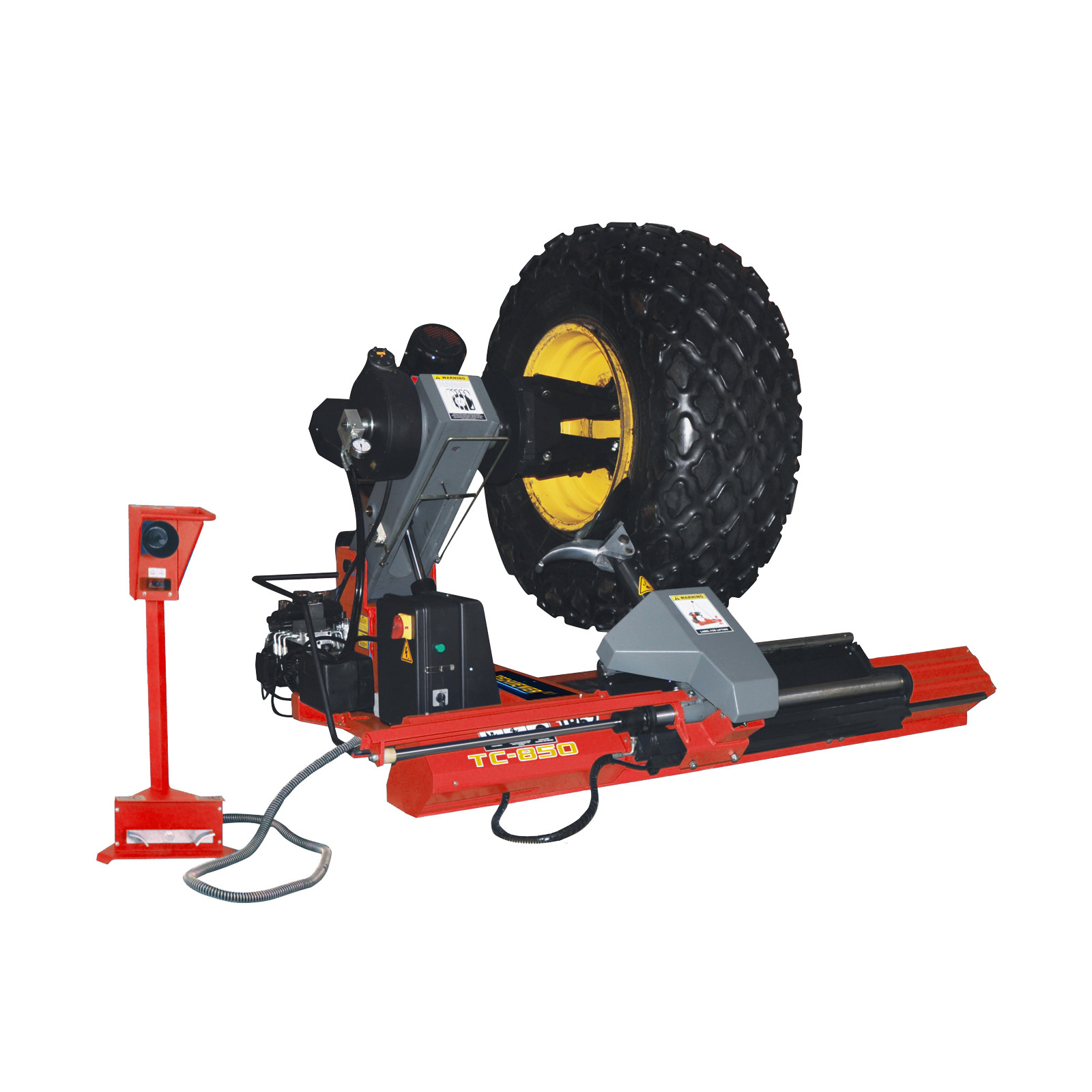

Truck tyre changer TC-850 / tire changing machine


Truck tire changer features:

1) It is used to mount/dismount the drop center rim/tubeless wheel/wheel with ring of the passenger car/truck/agriculture vehicle/industrial vehicle.
2) The tool arm automatically move horizontally and vertically.
3) Tool can automatic rotate. The spindle on the mounting head, use rolling bearing design, it can be used for the tire with huge resistance.
4) It is equipped with the hydraulic driven carriage making the tire moving on the tire changer without man power.
5) The small and portable console is very convenient to observe from different view avoiding the wrong improper in the process of operation.
6) Dual speed main shaft motor can improve the working efficiency.
7) There is a safe protection switch on the lifting arm.


Truck tire changer technical specification:

Model TC-850
Operating pressure 130-150bar
Max wheel diameter 2300mm
Max wheel width 1100mm
Max wheel weight 1800kg
Rim diameter 14'-42'
Hydraulic pump motor 1.5kw 380V/50hz/3ph
Gearbox motor 2.4kw 380V/50hz/3ph
Noise level <75db
Net weight 987kg
Gross weight 1252kg
Packing size 2280*2070*1070mm
Volume 5CBM


14-56 Inch Rim Automatic Truck Tire Changing Machine 5CBM 0


14-56 Inch Rim Automatic Truck Tire Changing Machine 5CBM 1

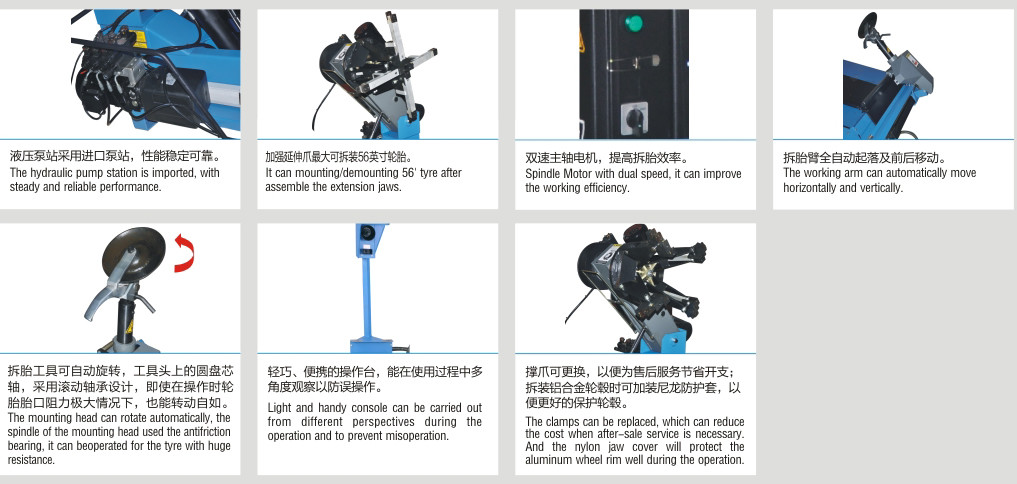

Product details:

14-56 Inch Rim Automatic Truck Tire Changing Machine 5CBM 2


Our Services
1. For the goods exported, we do not offer Oversea Sale Service, but we would like to offer our customer free spare parts as much as 1% of their total order value for normal maintenance.
2. 1 year warranty, The main parts are damaged, not caused by human we will provide free spare for you
3. Our factory offer after sale service to client
4. 24 Hours Technical support by email and mobile
5. Operation and technical knowledge are supplied to customers' workers both in domestic and abroad.
6. Offer the latest instruction manual and actual operating video.
Why choose us?
l We have twenty years’ experience in producing tire changers, wheel balancers, wheel alignment and other auto maintenance equipment. All the products have been passed EU CE certificate.
l Tongda’s Products have been exported to more than 10 countries and area, such as U.S., Germany, Japan, Russia, Australia and countries in the Middle East and Africa.
l Competitive Prices
l Quick Response & online service by Trade manager or email no more than 24 hours.
l Products Warranty and Perfect After-sale Service
