CE Standard 380V 50Hz Truck Tire Changing Machine / Heavy Duty Tire Changer
1 unit
MOQ
Chat with supplier
Price
CE Standard 380V 50Hz Truck Tire Changing Machine / Heavy Duty Tire Changer
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: OEM
Certification: CE, ISO
Model Number: TC-830
High Light:

380V Truck Tire Changing Machine

,

CE Truck Tire Changing Machine

,

380V Heavy Duty Tire Changer

Payment & Shipping Terms
Packaging Details: Wooden Box, quantity in 20' container: 6, quantity in 40' container: 16
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T
Supply Ability: 50000 units per year
Specifications
Power Source: Electric
Automatic: Automatic
Warranty: 1 Year
Wheel Range: 14"-26" Rim
Voltage: 110v 220v 380v Optional
Name: Truck Tyre Changer Machine
Product Description

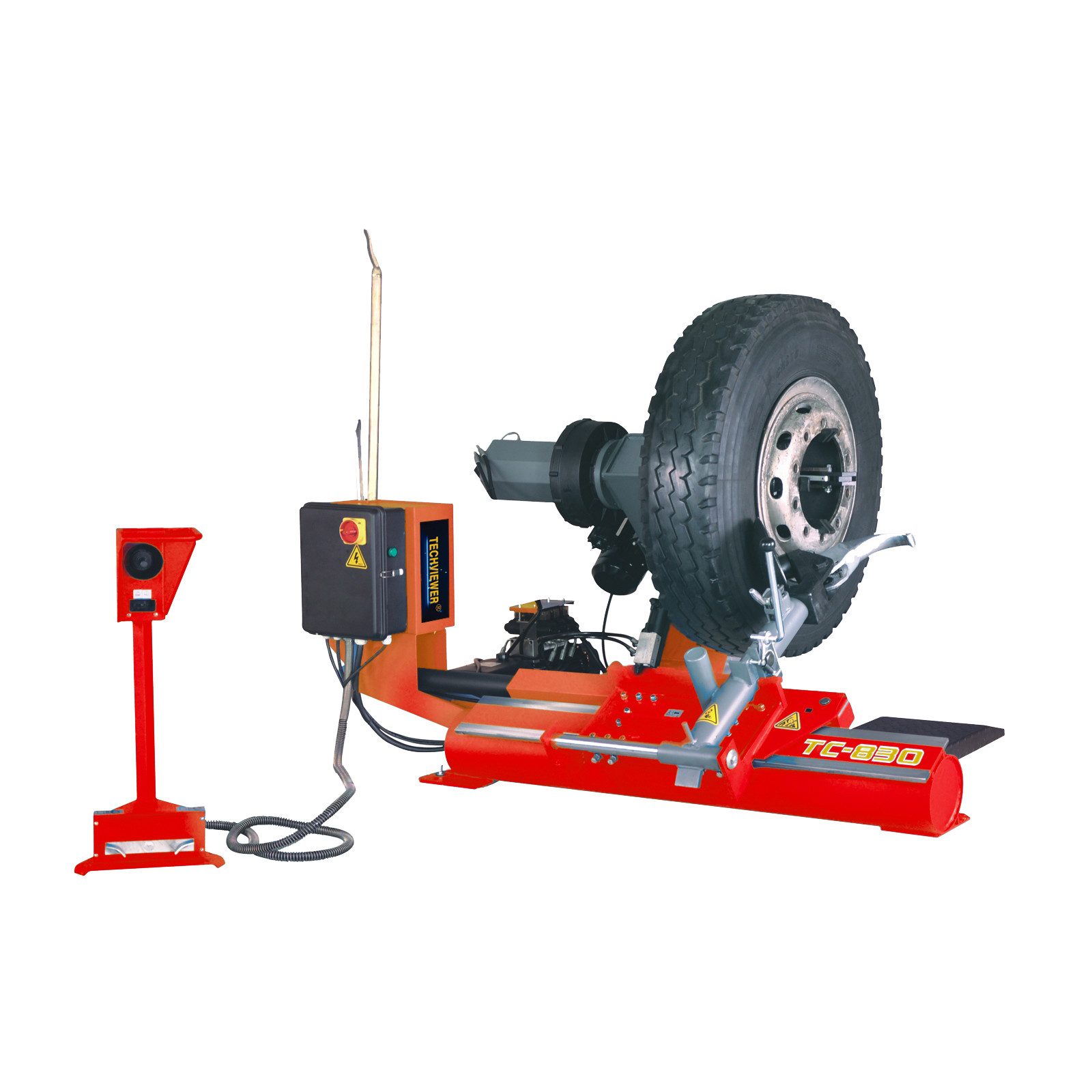

Truck tire changer TC-830 /tire changing machine

 Truck tire changer features:

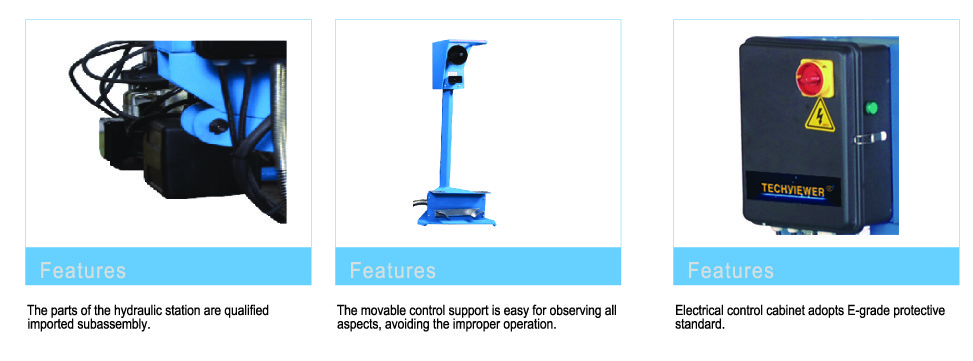

1) The parts of the hydraulic station are qualified imported subasssembly.
2) The main motor and its correlative elective parts accord with the CE standard.
3) Lifting arm oil tank has the center support.
4) The movable control support is easy for observing all aspects, avoiding the improper operation.
5) Electrical control cabinet adopts E=grade protective standard.
6) The gear box is the made of aluminum alloy castings, high density, light weight, good-looking,
anti-corrosion, and well sales.
7) The worm gear is made of tin &bronze alloy, high density, anti-wear, anti-corrosion, and long life in use.

Truck tire changer technical specification:

Model TC-830
Operating pressure 130-150bar

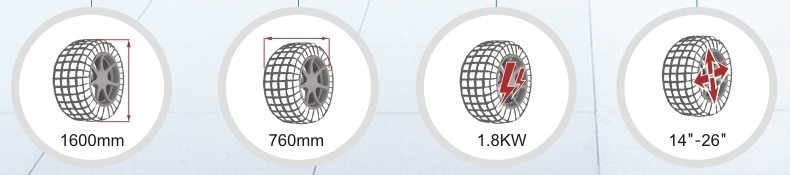

Max wheel diameter 1600mm
Max wheel width 760mm
Max wheel weight 1500kg
Rim diameter 14'-26'
Hydraulic pump motor 1.5kw 380V/50hz/3ph
Gearbox motor 1.8kw 380V/50hz/3ph
Noise level <75db
Net weight 585kg
Gross weight 795kg
Packing size 2100*1650*930mm
Volume 3.2CBM



CE Standard 380V 50Hz Truck Tire Changing Machine / Heavy Duty Tire Changer 0

CE Standard 380V 50Hz Truck Tire Changing Machine / Heavy Duty Tire Changer 1



Product details:

CE Standard 380V 50Hz Truck Tire Changing Machine / Heavy Duty Tire Changer 2



Our Services
1) Warranty:12 months;
2) Delivery time: 7 working days after payment received;
3) 1set sample order is acceptable;
4) Method of payment: T/T , TRADE ASSURANCE;
5) Certificate: TUV , ISO , CE.
