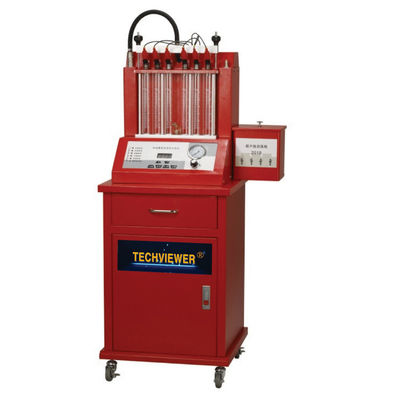

Fuel injector tester 6H / fuel injector cleaner / injector analyzer / injector test machine
6H Fuel Injector Tester & Cleaner features:
• Injector fuel distribution and delivery checking;
leakage hunting, injector cleaning;
• Engine idle, middle speed, high speed working condition simulation;
• Separated ultrasongic bath;
• Manual test liquid recycle;
• Test range: MPI, CIS (High and low resistance, voltage-controlled type and current-controlled included)
6H Fuel Injector Tester & Cleaner technical specification:
| Model | 6H | 6 | 6F |
| Number of testing injector | 1~6 | 1~6 | 1~6 |
| Oil pressure | 0~6.5KG | 0~6.5KG | 0~6.5KG |
| Net Weight | 32KG | 32KG | 35KG |
| Dimension (W*D*H) | 490*460*700mm | 530*510*650mm | 530*510*680mm |
Product details:
The 6H Fuel Injector cleaning machine how to work:
1. Clean injector's outside with gasoline or cleaning liquid before open machine.
2. Putting injectors in ultrasonic bathtub after the outside of injector are free of dirt.
3. Turn on ultrasonic systempulsed allowing the ultrasonic energy to dislodge any particles even build-up inside the injectors.
4. Fixed injectors on main machine.
5. Testing injectors for resistance, shorts, and current draw.
6. Performing leak test, spray pattern, and flow rate testing on flow bench.
7. The injectors are now returned to the flow bench for retesting of all functions.
