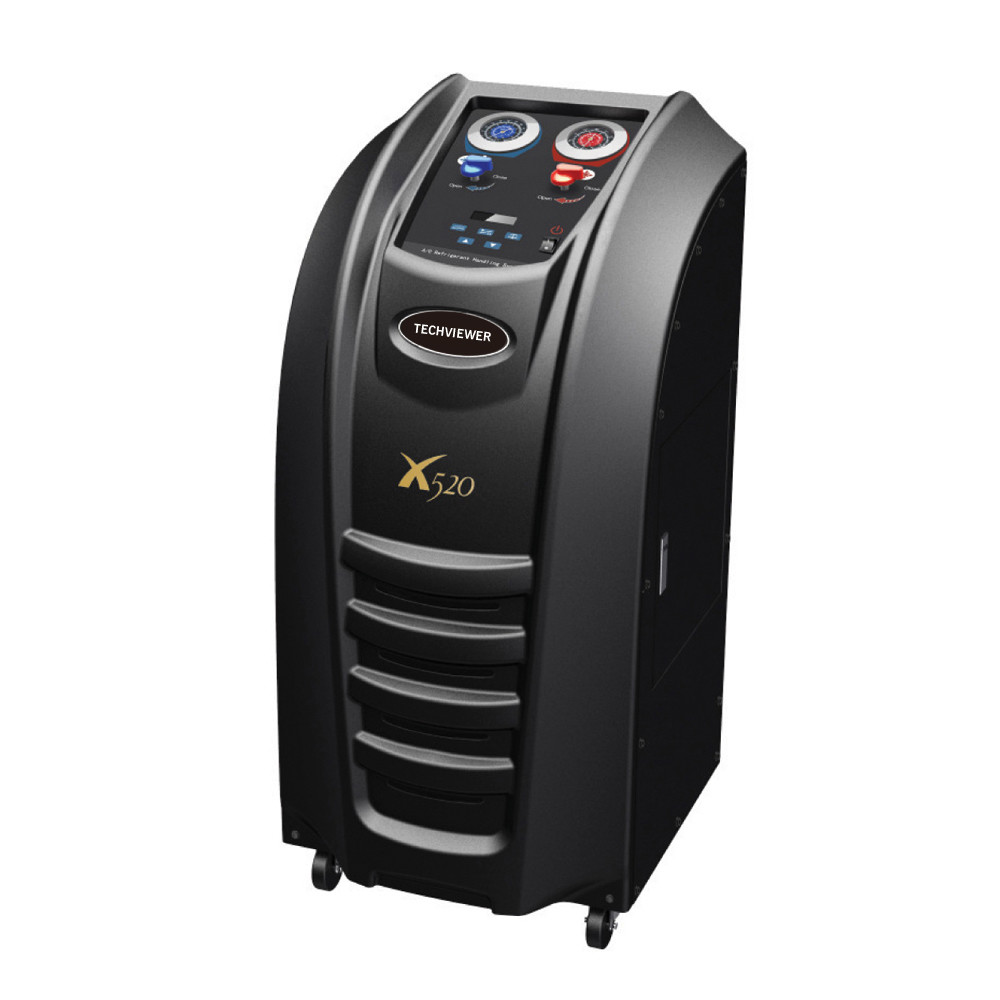

A/C charging machine X520 / automotive refrigerant recovery machine / refrigerant handle system
A/C Refrigerant Recovery Machine features:
• Recovery, vacuum, change;

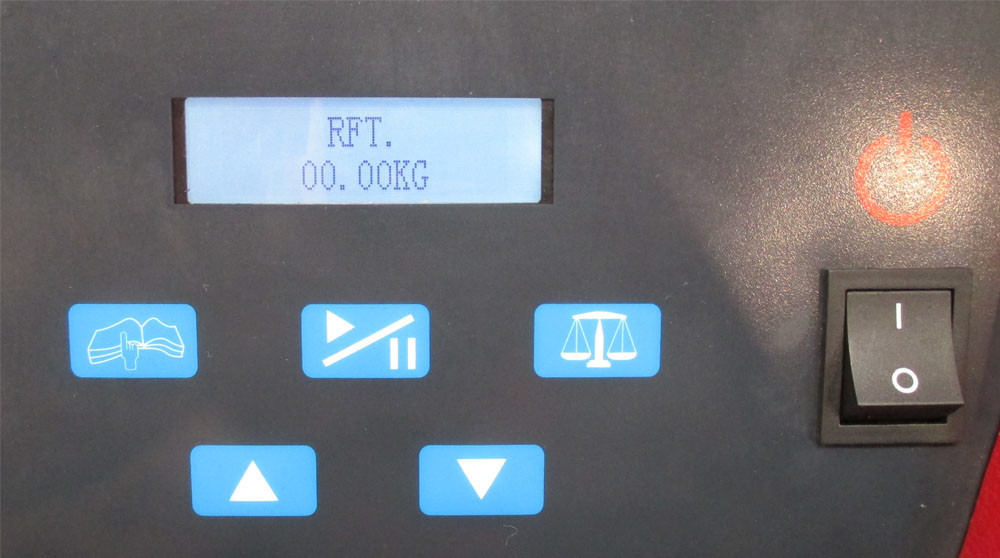

• LCD display;
• Operation &service prompt;

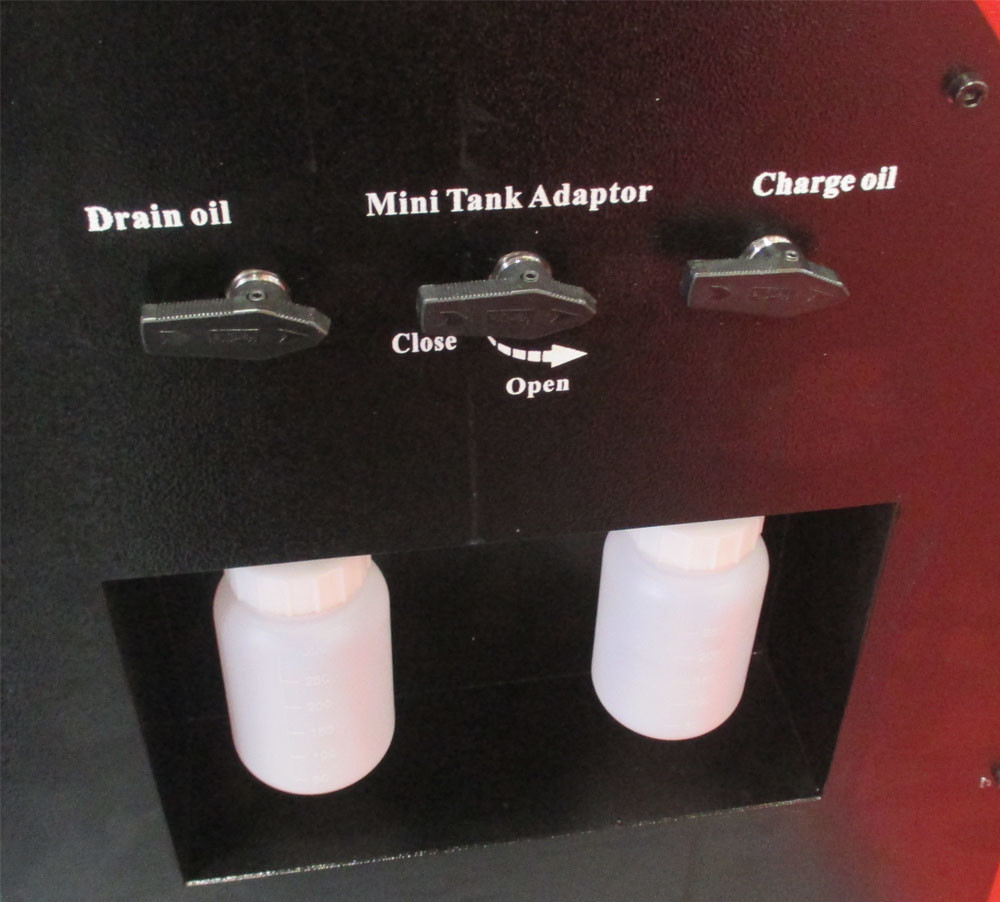

• Drain &change compressor oil manually;

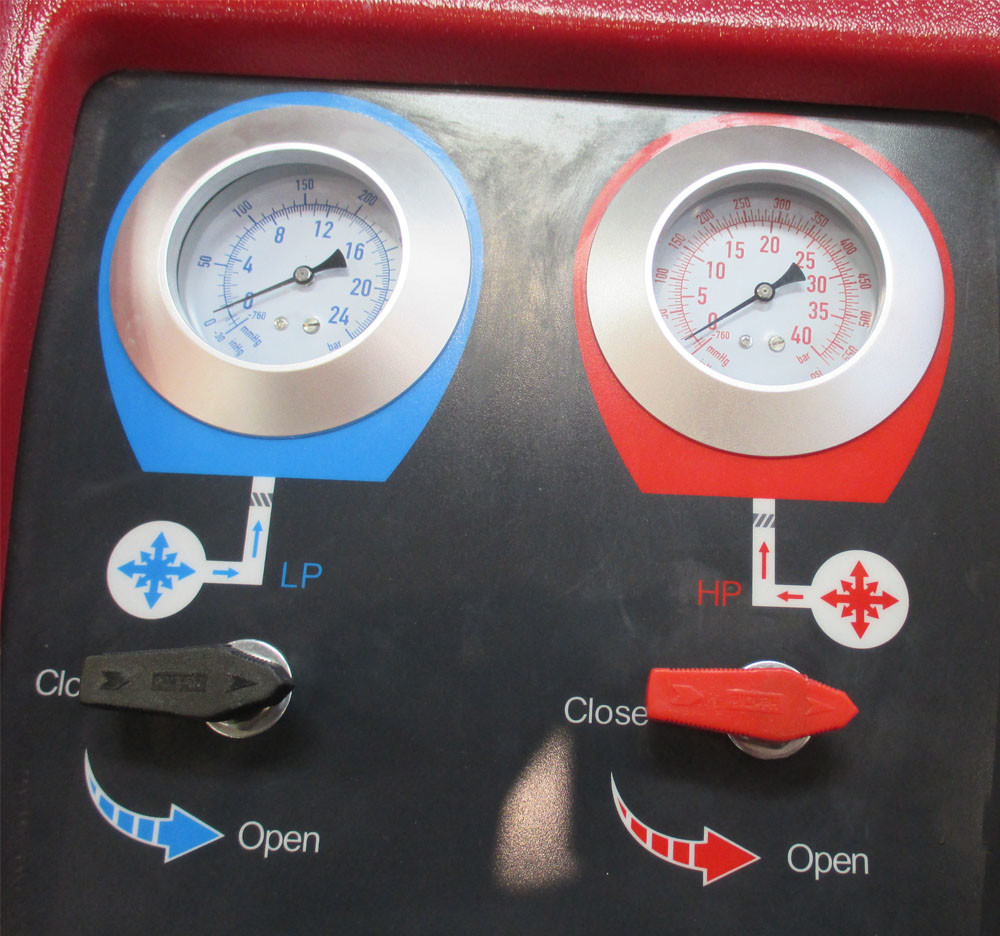

• High &Low pressure protection;
• Mini tank change adapter;
• With fan & condenser.
A/C Refrigerant Recovery Machine technical specification:
| Model | X520 | X530 | X540 |
| Input power | 700w | 750w | 800w |
| Recovery speed | 250g/min | 300g/min | 400g/min |
| Charge speed | 800g/min | 800g/min | 1000g/min |
| Vacuum speed | 5.4m3/h | 5.4m3/h | 10.8m3/h |
| Filter ability | 200kg | 200kg | 200kg |
| Scale accuracy | 10g | 10g | 10g |
| Cylinder capacity | 10kgs | 10kgs | 15kgs |
| Machine size | 1190*560*640mm | 1240*740*640mm | 1360*790*640mm |
| Packing size | 1260*625*710mm | 1310*760*700mm | 1460*705*850mm |
| N.W./G.W. | 80kgs/95kgs | 90kgs/105kgs | 115kgs/135kgs |
Product details:
Short description:
1) A/C Service Station is the latest production for refrigerant recovering, recharging and purifying, developed based on durable components. The product is meet the SAE standard. The unit mainly used in automatic servic stations, automobile production line ect.

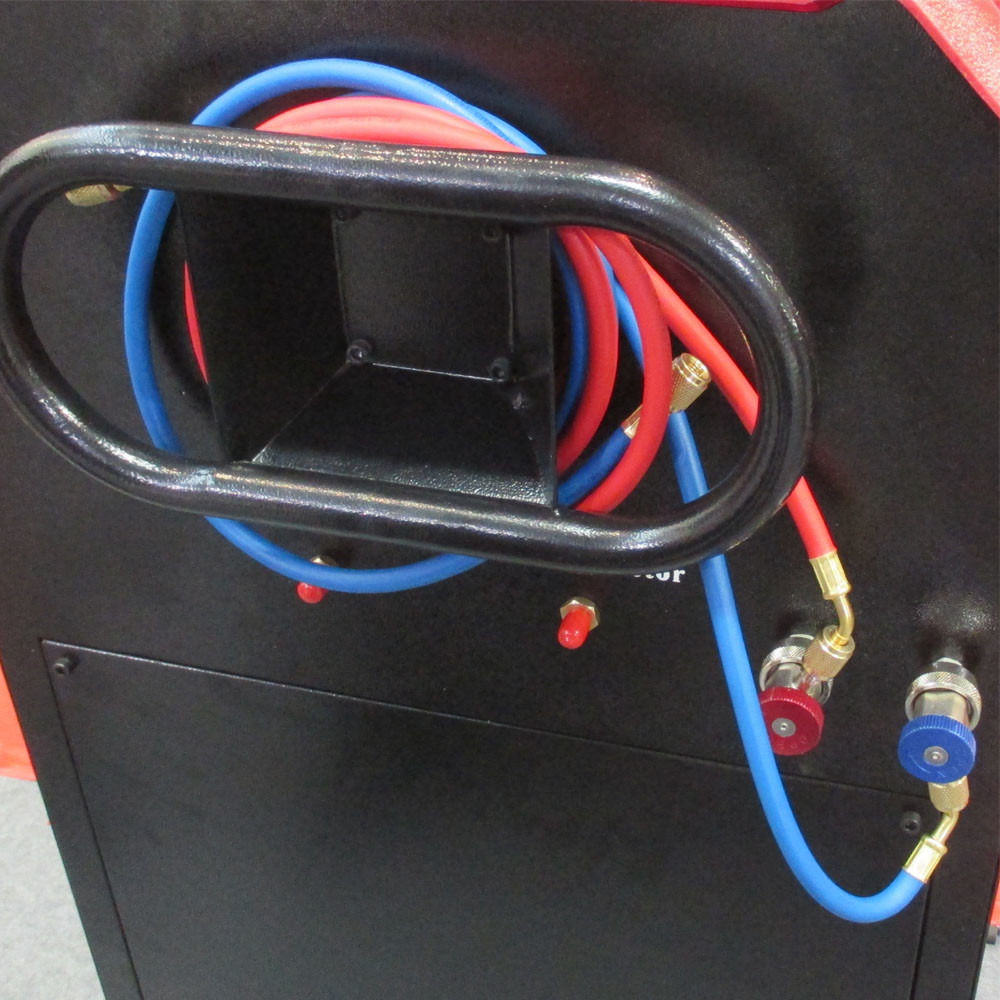

2) It is easy to connect the quick connectors of high /low pressure refrigerant to the automobile airconditioner system. One can perform pipeline cleaning and all repairs without pipe removing and replacing.
3) It is efficient , time saving and labor saving.
