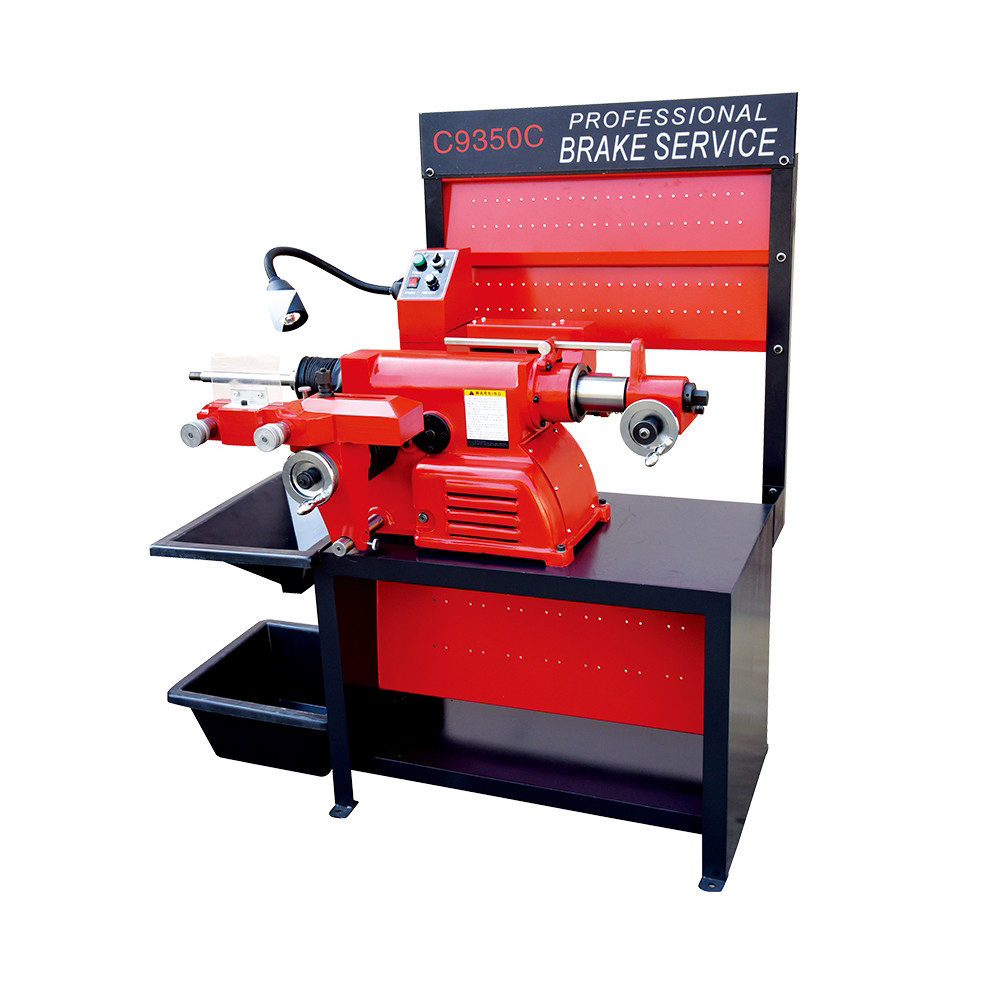

Brake disc lathe C9350C / brake lathe / brake lathe machine / car brake lathe / brake cutting machine
Brake disk lathe features:
1. Ideal machine for lathing brake drum/disc.
2. High performance.
3. Easy operation.
Brake disk lathe technical specification:
| Model | C9350C |
| Range of processing diameter drum | 152-450mm |
| Range of processing diameter disc | 178-368mm |
| Rotating speed of workpiece | 70/88/118r/min |
| Max travel of tool | 160mm |
| Feeding capacity | 0-0.4mm/r |
| Motor power | 0.75kw |
| G.W | 290kg |
| Packing dimensions | 1200*900*1500mm |
Product details:
1. The lathe uses precision electric DC servo motors designed to meet the demanding requirement of industrial motion control .
2. The " Change Adapter " system eliminates the need for conventional bell clamps and cones and features built-in springs ensure you don't lose them .
3. The precision twin cutter tools and a quick drum to rotor changeover to help increase your service capability .
4. Infinitely variable spindle and cross feed speed settings allow for quick rough and precision finish cuts .
5. A convenient top storage tray means you can easy to take your favorite adapters and tools .
6. Separate motors on the drum and rotor feed help maximize the main motor's efficiency .
7. The variety of adapters lets you machine all standard and composite rotors for foreign and domestic cars and light trucks .
8. Positive rake cutter tip angle provides for a one pass finish virtually every time, allowing you to complete your work fast
