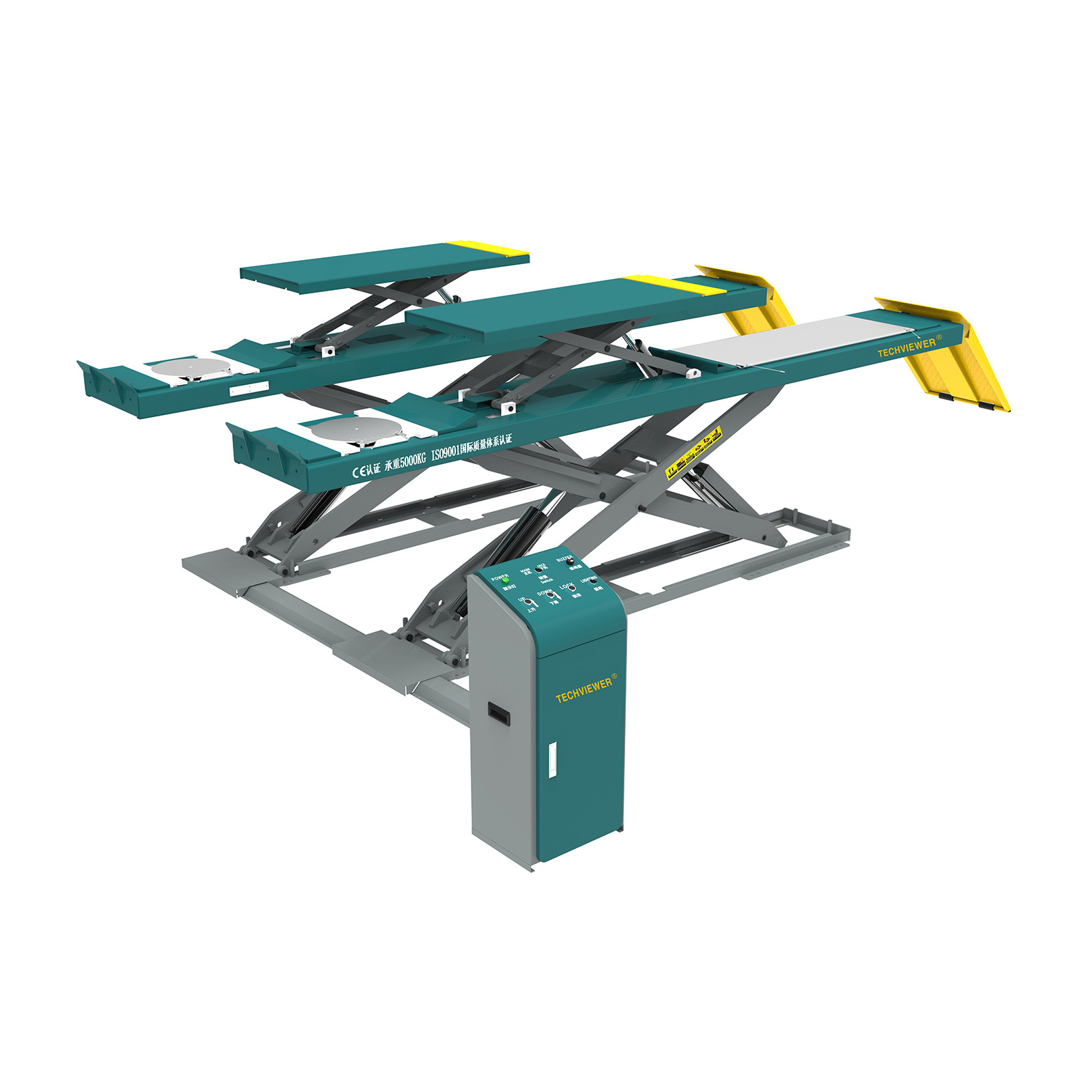

Super Thin 5T Wheel Alignment Scissor Lift 2000mm Big Scissor Lift
1 unit
MOQ
Chat with supplier
Price
Super Thin 5T Wheel Alignment Scissor Lift 2000mm Big Scissor Lift
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: OEM
Certification: CE, ISO
Model Number: BDJ001
High Light:

2000mm wheel alignment scissor lift

,

Thin wheel alignment scissor lift

,

5T alignment Big Scissor Lift

Payment & Shipping Terms
Packaging Details: Iron Shelf & carton, quantity in 20' container: 6, quantity in 40' container: 12
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T
Supply Ability: 50000 units per year
Specifications
Lifting Capacity: 5T
Driving Type: Hydraulic
Warranty: 1 Year
Type: Four Cylinder
Voltage: 110v 220v 380v Optional
Name: Wheel Alignment Scissor Lift
Product Description

Super Thin 5T Wheel Alignment Scissor Lift 2000mm Big Scissor Lift



 Super-thin wheel alignment scissor lift features:

1) Designed as super-thin structure to maximize your workshop.
2) Independent control box, low voltage control, good safety performance.
3) Hydraulic volume synchronous oil cylinder, synchronized and stable operation of platform.
4) Adopt the double safety device of hydraulic lock and mechanical double-tooth insurance claw, drop automatically, through the locking operation, make insurance claw to achieve Reverse-backing positioning, safe and reliable.
5) Adopt hydraulic failure and overload safety valve protection.
6) Adopt throttle device of oil route, when oil pipe is bursting, the machine will not drop fast.
7) Adopt the oil-free super wear-resistant material sliding block.
8) Adopt the Italy, Germany, Japan and other high-quality hydraulic, electrical components.
9) Adopt the integral type base; strengthen the capability of horizontal adjustment, horizontal accuracy can be adjusted accurately, especially suitable for for-wheel location detection.
10) Adopt emergency manual lowering device in the power failure.
11) Receive 115% dynamic and 150% static testing.
12) Accord with standard of European Union CE.



Super-thin wheel alignment scissor lift technical specification:

Model BDJ001
Capacity 5T
Main lifting height 2000mm
Runway length 4500mm
Runway width 620mm
Mini height 190mm
Second lift capacity 3T
Second lift height 430mm
Motor power 2.2kw
Oil 46#



Super Thin 5T Wheel Alignment Scissor Lift 2000mm Big Scissor Lift 0



Product details:

Super Thin 5T Wheel Alignment Scissor Lift 2000mm Big Scissor Lift 1



Product Features
Super low profile and perfect for ground mounted;
Suitabble for any alignment turntable;
The main hydraulic components of the manchine are assembled by international high quality inported parts.
The use of hidden scissors super Low structure, no construction pit ,small footprint.
Cylinder 2-year warranty,quality assurance period of pressure relief oil free replacement cylinder



FAQ
Q: Do you test all your goods before delivery?
A:Yes, we have 100% test before delivery.
Q: How long is your delivery time?
A:Generally, it will take 30 to 45 days after receiving your advance payment.
Q: Do you provide samples ? is it free or extra ?
A:Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A:Payment<=5000USD, 100% T/T in advance. Payment>=10000USD, 30% T/T in advance ,balance paid upon B/L copy.If you have another questions, pls feel free to contact us.
Q: Can we print logo on the products ?
A: Yes,but it has MOQ requirment.
