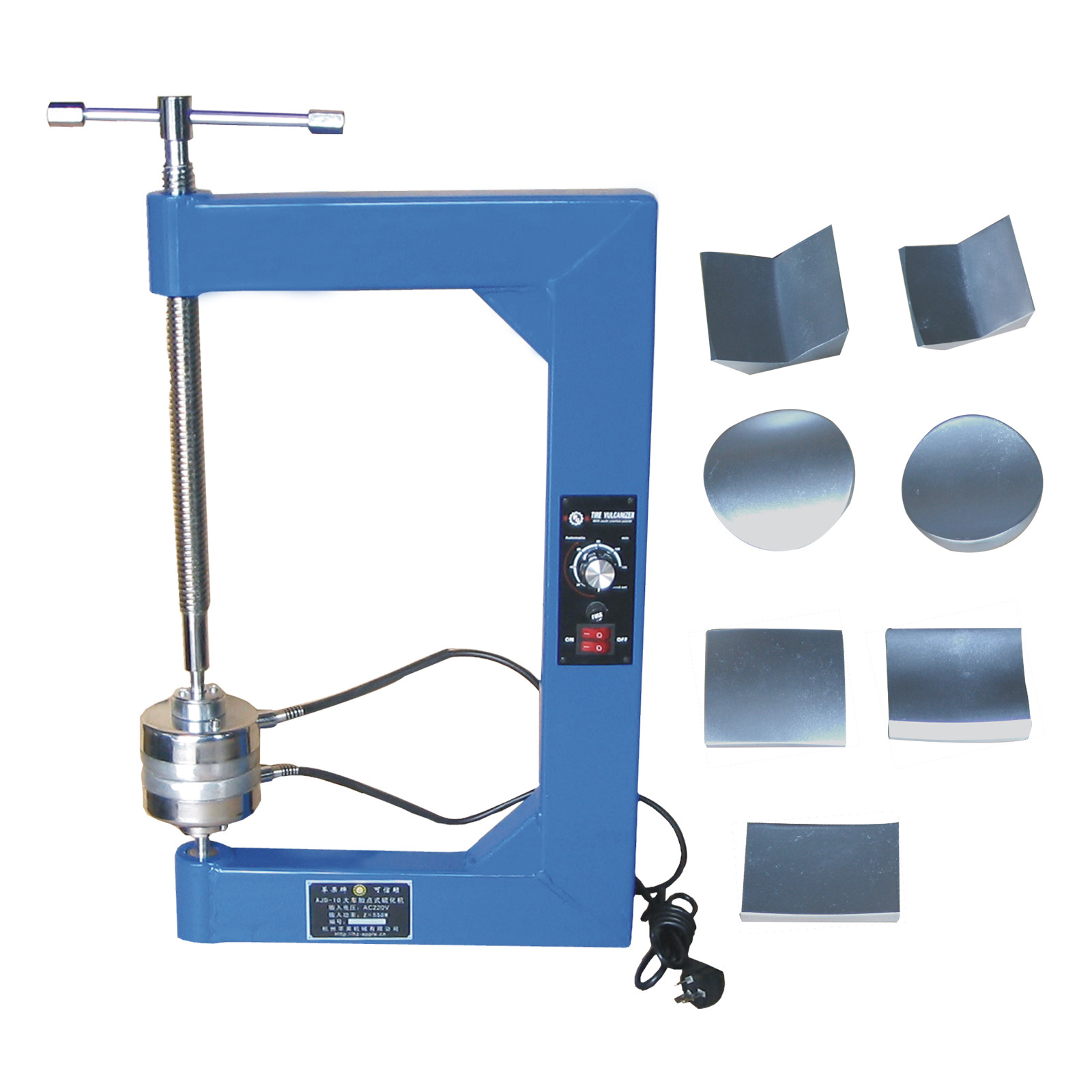

220V Car Repair Machines / Truck Tire Vulcanizer 140*120mm2 Repair Area
Thermostatic vulcanizer, double side heat, upper and down irons can work either separate or together
Lower arm is rotatable of 360 degree
Signal light, circuit protection, 120 min timer
Seven platesfits for tire crown, tire shoulder and tire sidewall
Applicable for inner tubes, medium to large tire, truck tire and tubeless tire.
Truck Tire Vulcanizertechnical specification:
Max repair area: 140*120mm2
Packing size: 685*435*130mm
1. Clean up the surface of the wound that needs to be repaired and make a mark.
2. Use a grinder to roughen the surface of the wound. The area is slightly larger than the wound.
3, the raw rubber and gasoline adjusted glue (or vulcanizing glue) with a brush evenly coated around od wound.
4. Cut a proper size of raw rubber and fill it in the wound. If the wound is large, the raw rubber should be overlap.

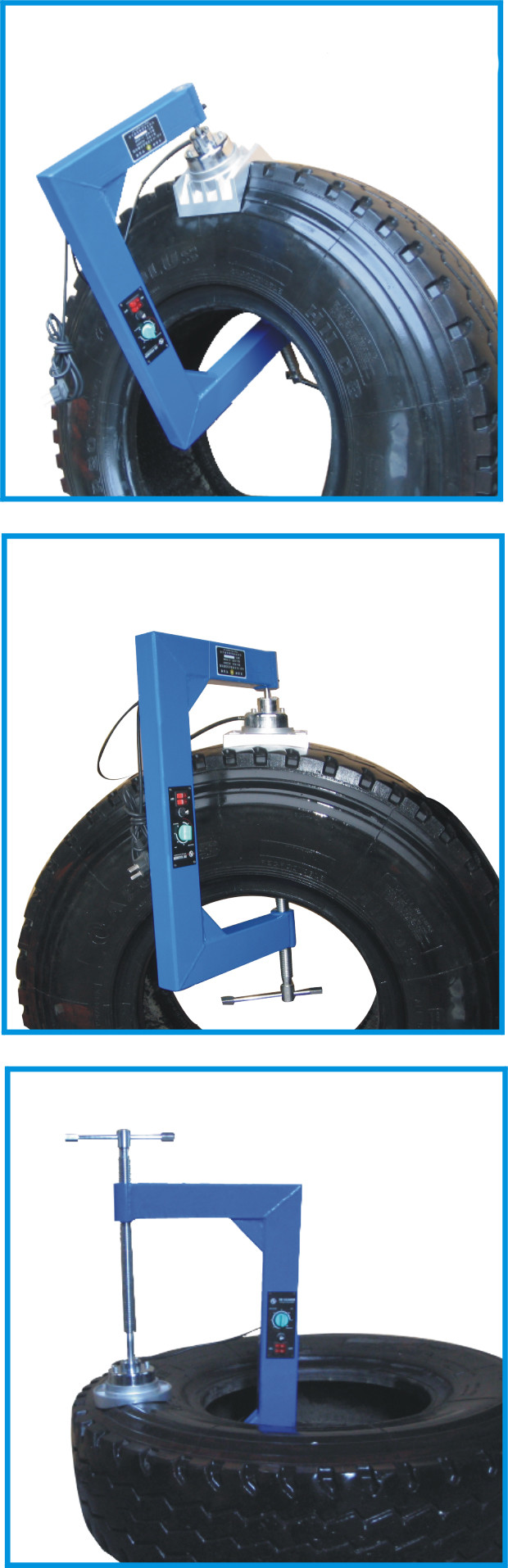

5. Press the hot head on the raw rubber (if possible, put a thin layer of aluminum or iron on the raw rubber), try to align the wound with the center of the hot head, tighten the screw, and fix the tire.
6. When the vulcanization is completed (10 minutes), set according to the vulcanization area, manually turn off the power switch, loosen the pressure tire rod, remove the tire, and complete the entire tire repair process.
