5T Four Post Hydraulic Lift 3286mm Width One Cylinder
1 unit
MOQ
Chat with supplier
Price
5T Four Post Hydraulic Lift 3286mm Width One Cylinder
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: OEM
Certification: CE, ISO
Model Number: CL-6450
High Light:

5T Four Post Hydraulic Lift

,

3286mm Four Post Hydraulic Lift

,

5T 4 Post Hydraulic Car Lift

Payment & Shipping Terms
Packaging Details: Iron Shelf & carton, quantity in 20' container: 12, quantity in 40' container: 24
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T
Supply Ability: 50000 units per year
Specifications
Lifting Capacity: 5T
Driving Type: Hydraulic
Warranty: 1 Year
Type: One Cylinder
Voltage: 110v 220v 380v Optional
Name: 4 Post Alignment Lift
Product Description

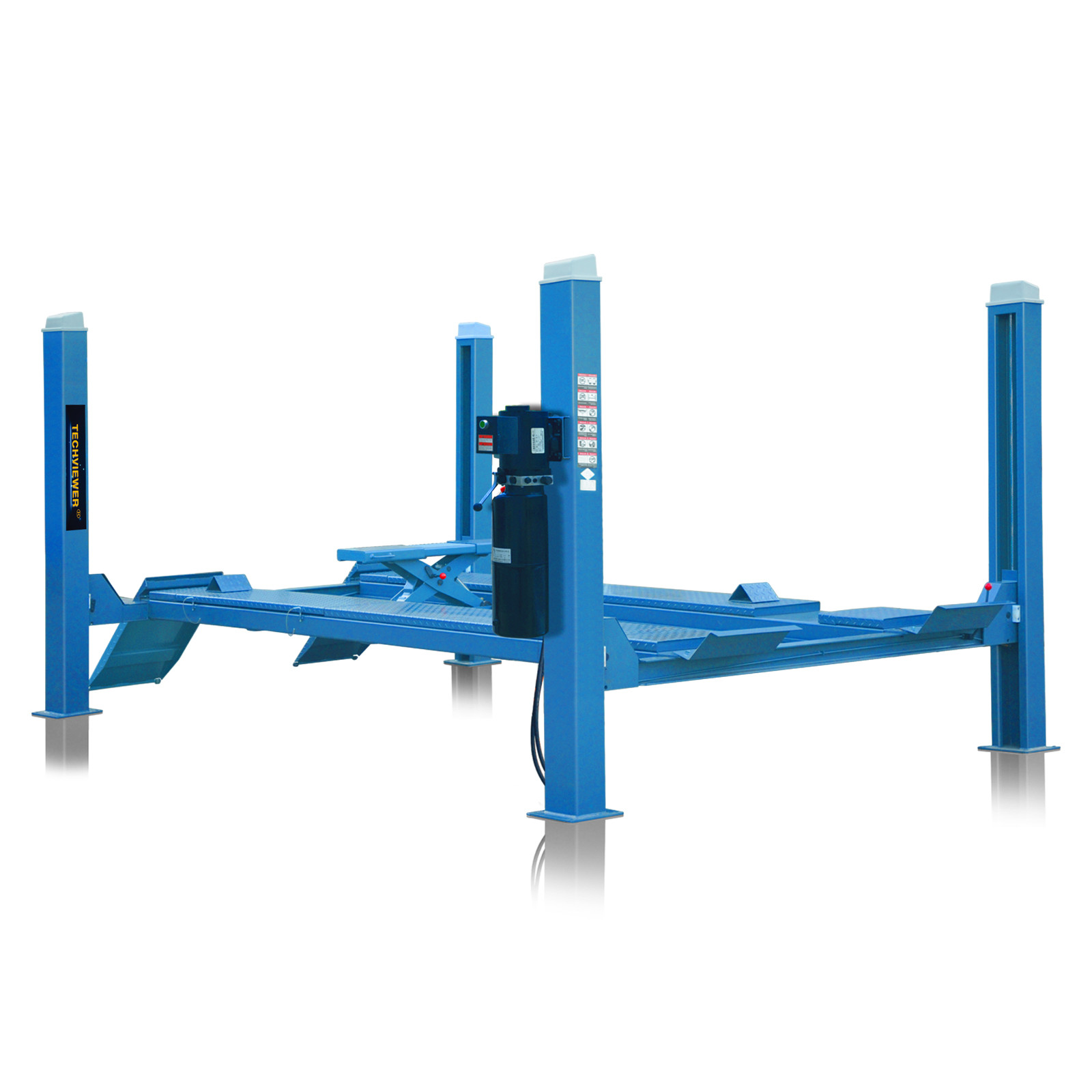

4 post alignment lift four post car lifting machine / car lifter / car hoist



4 post alignment lift features:

1) Manual single-side unlocking, ease the off-operation.
2) Adopt the hydraulic lock and the main insurance positioning structure and the rope breaking resistant insurance mechanism multiple-safety device, safe and reliable.
3) Adopt the hydraulic failure and overload safety valve protection, in the event of rope breaking and insurance mechanism failure, the machine cannot be decreased rapidly.
4) The lengthened double-level rear sliding plate, the position of front wheel turn plate can be adjusted ,the application for various models(F4 type)
5) Adopt the secondary lifting trolley's sliding rail, a number of secondary lifting trolleys are optional.
6) The platform's horizontal adjustment is very convenient, accurate, adapted to high precision 4 wheel positioning monitoring(F4 type).
7) The inside distance of adjustment lifting platform for different vehicles with different treads.
8) Receive 115% dynamic and 150% static testing.
9) Accord with standard of European Union CE.

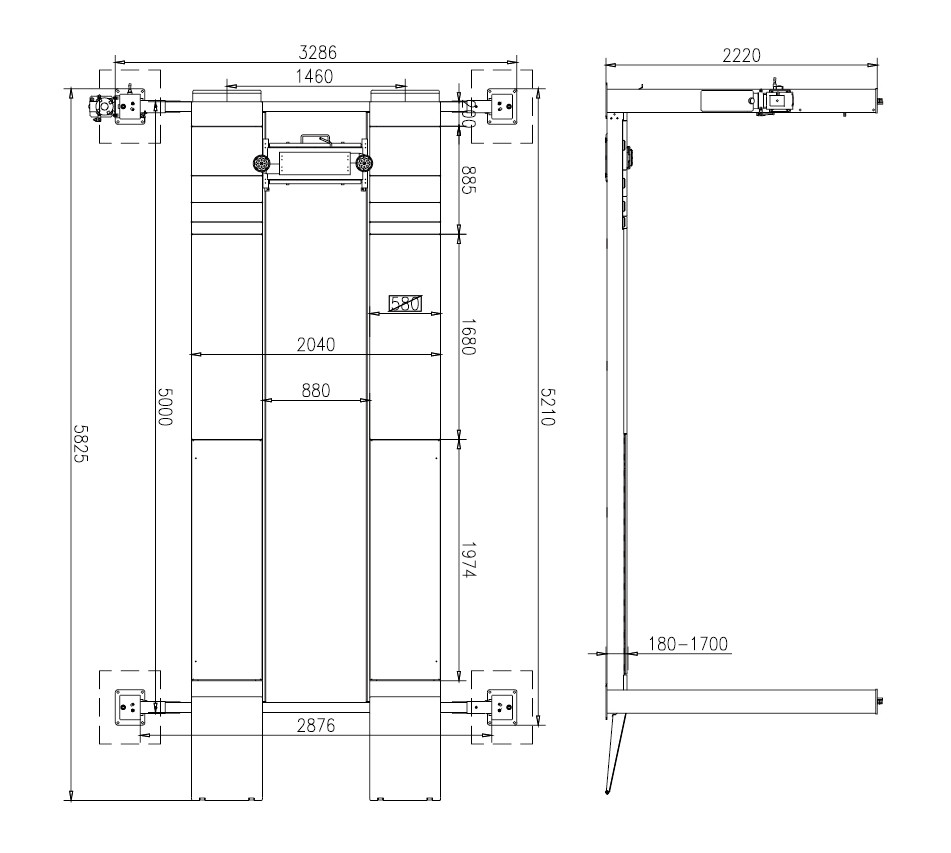

 4 post alignment lift technical specification:

Model CL-6440 CL-6450
Capacity 4T 5T
Lifting height 1800mm 1800mm
Total height 2220mm 2220mm
Total width 3250mm 3286mm
Runway length 4310mm 5000mm
Runway width 488mm 580mm
Second lift capacity 2T 2T
Second lift height 350mm 350mm
Motor power 2.2kw 2.2kw
Oil 46# 46#

5T Four Post Hydraulic Lift 3286mm Width One Cylinder 05T Four Post Hydraulic Lift 3286mm Width One Cylinder 1

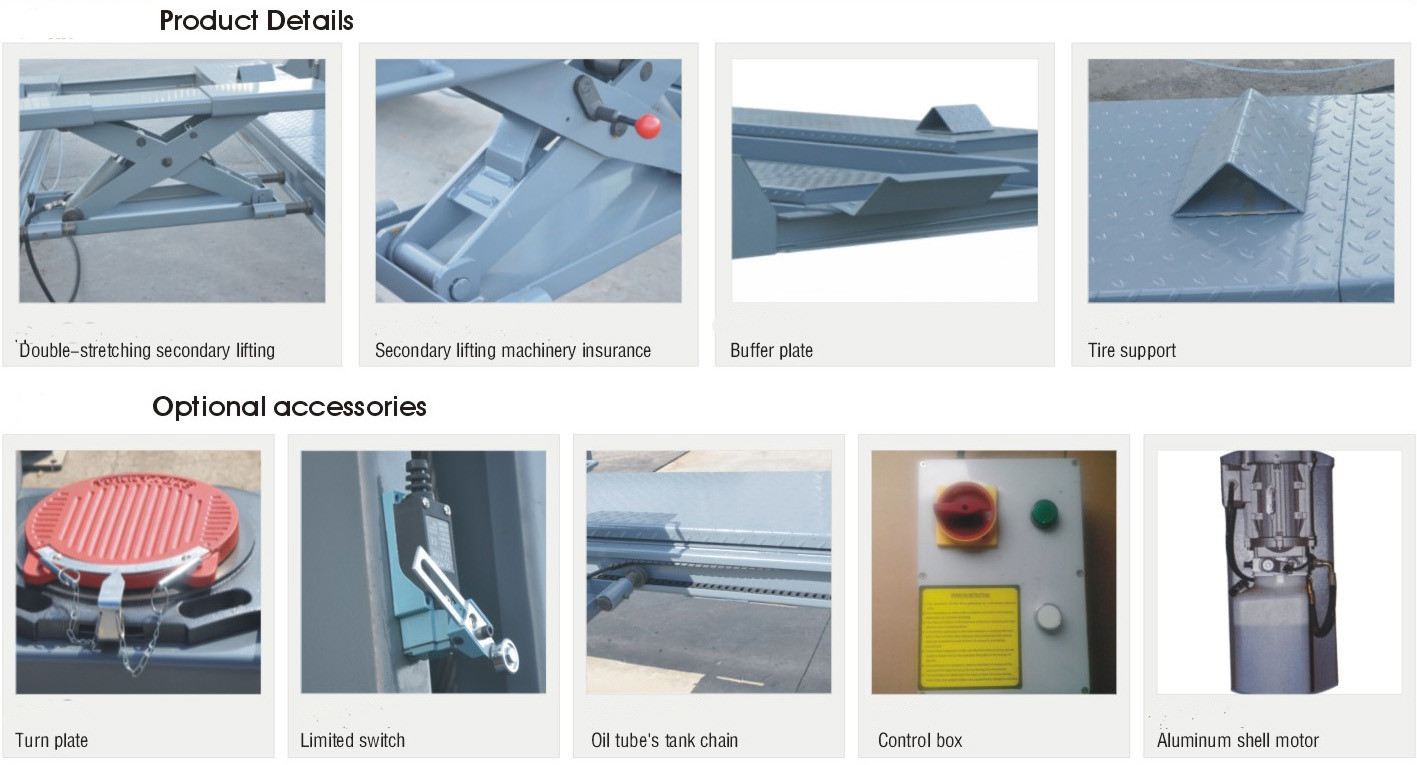

Product details:

5T Four Post Hydraulic Lift 3286mm Width One Cylinder 2





Trade Terms FOB / CFR
MOQ 3UNITS
Port SHANGHAI
Shipment BY SEA /AIR
Payment Terms T/T
Payment condition 30% prepayment,balanced againt BL copy&L/C at sight.
Supply Capability 1000units/month
Sample Availability Yes ,But all freight(Inland freight +seafreight) covered by buyer
Sample Time 5-10days(depends on whether have in stock)
Lead Time 25-30days(Rush season 5-10days longer)
Packing Metal frame&Carton
Delivery time 30-45days shipping time (depends on destination position)
Service 1% free parts;1year warranty after port of destination
