Light Bus Truck Wheel Balancing Machine 10"-24" Rim 200kg Truck Wheel Balancer
1 unit
MOQ
Chat with supplier
Price
Light Bus Truck Wheel Balancing Machine 10"-24" Rim 200kg Truck Wheel Balancer
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: OEM
Certification: CE, ISO
Model Number: WB-6080
High Light:

200kg Truck Wheel Balancing Machine

,

24 Truck Wheel Balancing Machine

,

200kg Truck Wheel Balancer

Payment & Shipping Terms
Packaging Details: Wooden Box, quantity in 20' container: 18, quantity in 40' container: 42
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T
Supply Ability: 50000 units per year
Specifications
Balancing Type Of Wheel: Off-Car Type
Balancing Range: 10"-24" Rim
Warranty: 1 Year
Design Type: Vertical Type
Voltage: 110v 220v 380v Optional
Name: Truck Wheel Balancing Machine
Product Description

Light Bus Truck Wheel Balancing Machine 10"-24" Rim 200kg Truck Wheel Balancer​



Truck wheel balancer features:

1) Wheel balancer with self-owned intellectual property.
2) The machine has the balance modes including of static and kinds of ALU mode.
3) Permit customer themselves define and edit the balance operation set up according to their requirement.
4) With the car/truck conversion function key to guarantee the precision to be 50g when handling truck tire and 10g when handling car tire.
5) Super big LED display and customer can have a good view when operating the machine.
6) Equipped with inch to millimeter and gram to ounce conversion function.
7) Standard 42mm thread shaft can be used as the universal accessory for the domestic and overseas standard wheel balancer, flange disk and lock-thread all undertaken supersonic quench and milling. Strong, durable and beautiful.
8) The display window and the weights cover is independent and difficult to damage the screen when operation, the button board will be using more permanent.
9) The customer can set up the minimum weight to display according to their requirement.
10) With the pedal brake making the positioning of the weight precisely.
11) With the lift to save the tine and labor when mount the wheel.

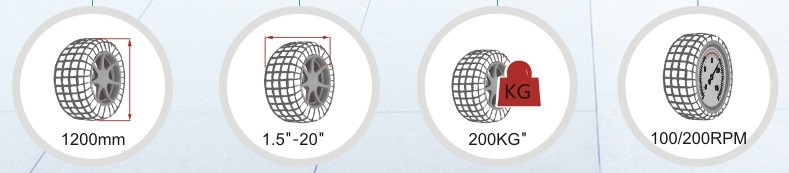

Truck wheel balancer technical specification:

Model WB-6080
Rim diameter 10'-24'
Max wheel diameter 1200mm
Rim width 1.5'-20'
Max wheel weight 200kg
Resolution 100/200rpm
Working pressure 5-8bar
Motor power 0.55kw
Net weight 227kg
Gross weight 322kg

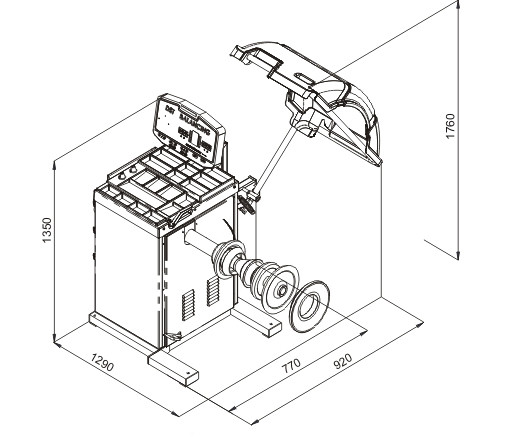

Packing size 1300*990*1130mm
Volume 1.45CBM

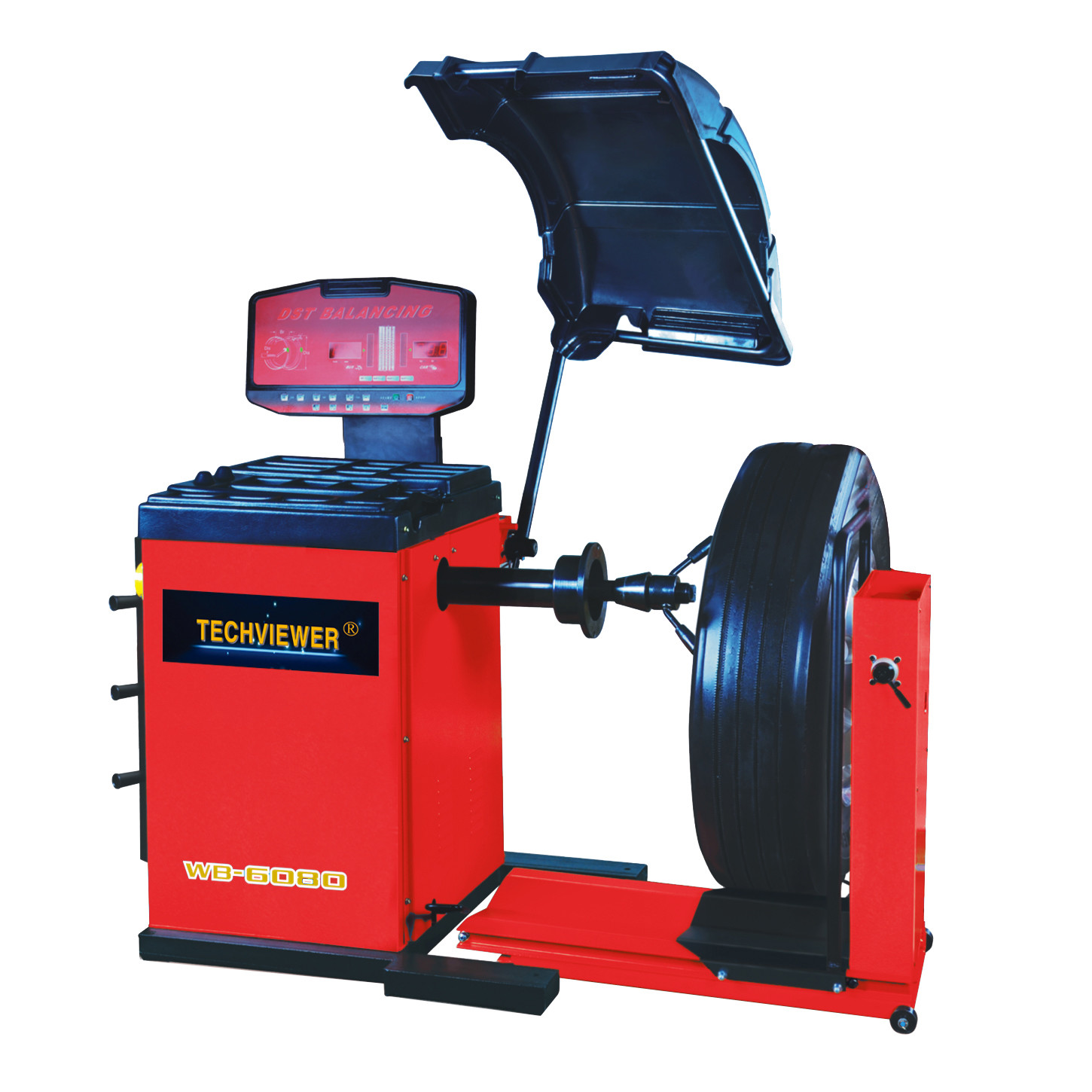

Light Bus Truck Wheel Balancing Machine 10"-24" Rim 200kg Truck Wheel Balancer 0

Light Bus Truck Wheel Balancing Machine 10"-24" Rim 200kg Truck Wheel Balancer 1



Product details:

Light Bus Truck Wheel Balancing Machine 10"-24" Rim 200kg Truck Wheel Balancer 2



Application range:
This product makes fine adjustment for tyres of various light truck and bus vehicles.

Machine functions:
1. It can realize automatic dynamic balance, static balance and aluminum alloy rim balance.
2. Adopting pressure sensor,pressure datas show high precision.
3. The protective cover is optional.
4. Foot brake function makes easy brake.

Quality:
This product gained Europe CE certification.
