220V Car Repair Machines / Truck Tire Vulcanizer 140*120mm2 Repair Area
1 unit
MOQ
Chat with Supplier
Price
220V Car Repair Machines / Truck Tire Vulcanizer 140*120mm2 Repair Area
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: OEM
Certification: CE, ISO
Model Number: AJD-10
High Light:

220V Car Repair Machines

,

Car Repair Machines

,

Truck Tire Vulcanizer

Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T
Supply Ability: 50000 units per year
Specifications
Max Repair Area: 140*120mm2
Voltage: 110V/220V
Warranty: 1 Year
Color: Red, Blue, Yellow, Gray, Black
Temperature: 145-165degree
Name: Truck Tire Vulcanizer
Product Description

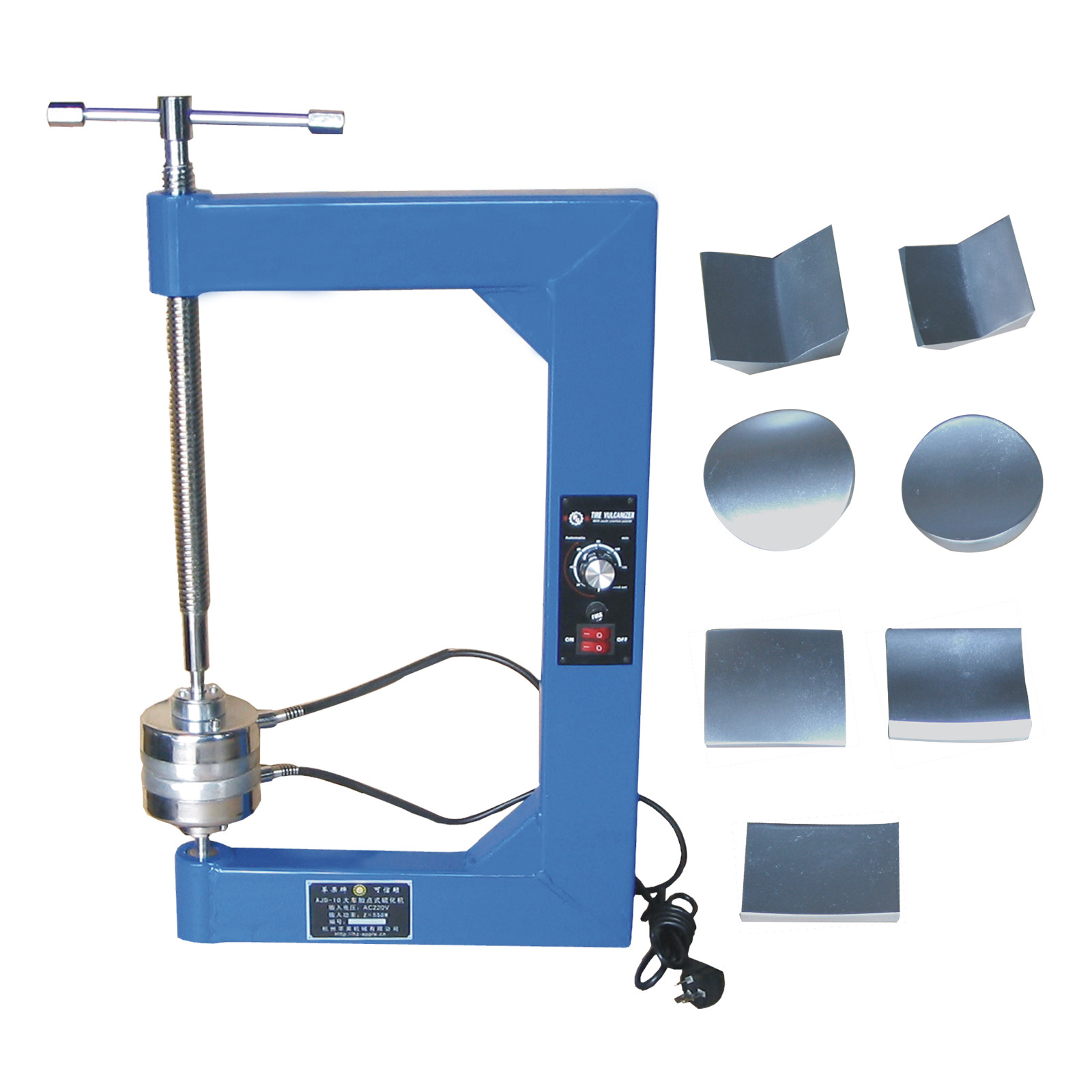

220V Car Repair Machines / Truck Tire Vulcanizer 140*120mm2 Repair Area





Truck Tire Vulcanizer features:

Thermostatic vulcanizer, double side heat, upper and down irons can work either separate or together

Lower arm is rotatable of 360 degree

Signal light, circuit protection, 120 min timer

Seven platesfits for tire crown, tire shoulder and tire sidewall

Applicable for inner tubes, medium to large tire, truck tire and tubeless tire.





Truck Tire Vulcanizer technical specification:

Max repair area: 140*120mm2

Voltage: 110V/220V

Power: 500W*2

Temperature: 145-165degree

G.W/N.W: 21.5/20kgs

Packing size: 685*435*130mm





Application method


1. Clean up the surface of the wound that needs to be repaired and make a mark.
2. Use a grinder to roughen the surface of the wound. The area is slightly larger than the wound.
3, the raw rubber and gasoline adjusted glue (or vulcanizing glue) with a brush evenly coated around od wound.
4. Cut a proper size of raw rubber and fill it in the wound. If the wound is large, the raw rubber should be overlap.

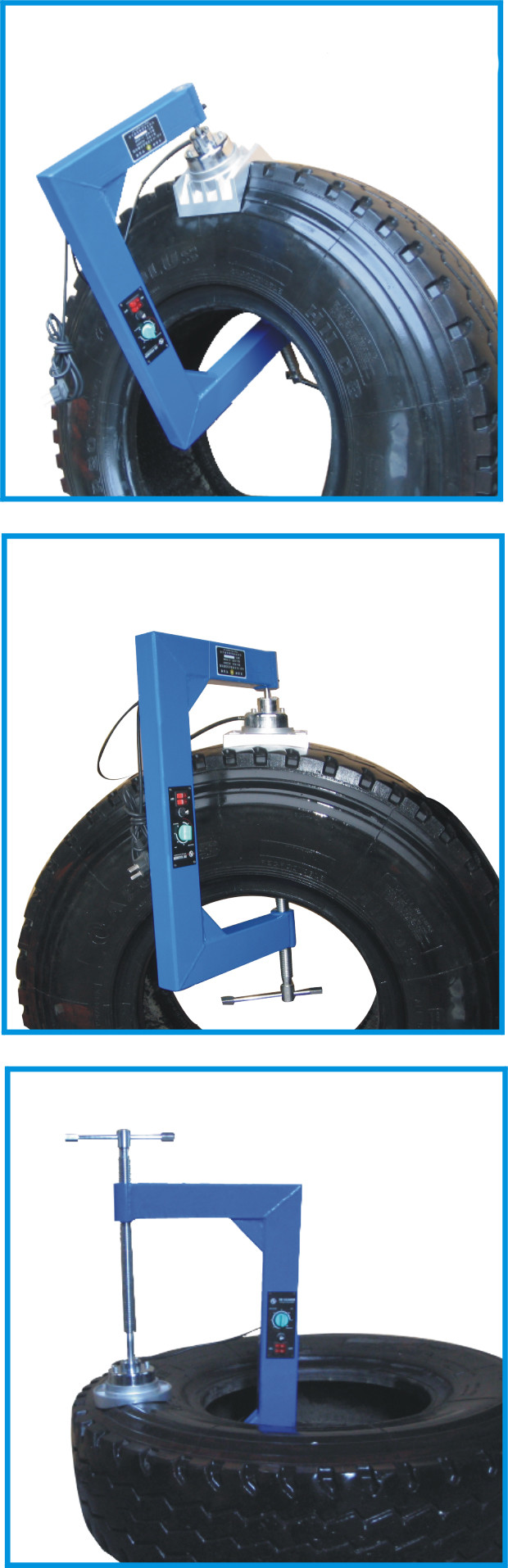

5. Press the hot head on the raw rubber (if possible, put a thin layer of aluminum or iron on the raw rubber), try to align the wound with the center of the hot head, tighten the screw, and fix the tire.
6. When the vulcanization is completed (10 minutes), set according to the vulcanization area, manually turn off the power switch, loosen the pressure tire rod, remove the tire, and complete the entire tire repair process.
